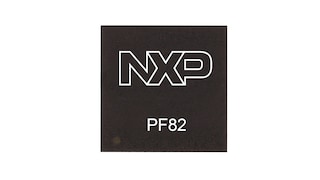

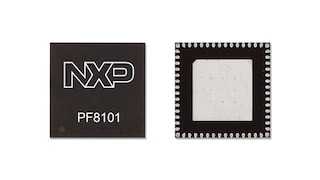

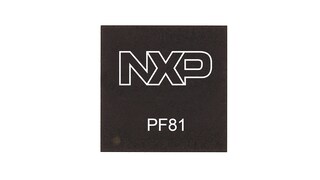

The PF81/PF82 PMIC family is designed for high-performance processing applications such as infotainment, telematics, clusters, vehicle networking, ADAS, vision and sensor fusion.
Two versions are available to address different market needs:
This family is ideal for i.MX 8, i.MX 8X and S32V processors’ based applications and suitable for powering Layerscape LS1043A and other high-performance processors. It offers seven high-efficiency buck converters and four linear regulators to power the processor, memory and miscellaneous peripherals.
When it comes to functional safety, NXP stands for quality and reliability. Our SafeAssure program simplifies system-level safety requirements in accordance with ISO 26262.
This platform facilitates the design of safe power management systems thanks to a portfolio of configurable and linkable devices. It simplifies complex power supply subsystems into a single smart solution.
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
9-Channel Power Management Integrated Circuit (PMIC) for High-Performance Processing Applications
1-10 of 27 results
Include 2 NRND
Part | Order | CAD Model | Status | Budgetary Price excluding tax | MCU Supported | Supply Voltage [min] (V) | Supply Voltage [max] (V) | Output Current (A) | Number of Buck Regulators | Number of LDO | Switching Frequency LV Buck (MHz) | Number of Boost Regulators | Number of Channels | Battery Charger | Package Type | Ambient Operating Temperature (Min to Max) (℃) | Safety Level | Device Function | Interface and Input Control | Additional Features - Analog | Junction Temperature (Min to Max) (℃) | Development Tools |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | 1K @ US$4.42 | LS1043A, S32V, i.MX 8, i.MX 8X | 2.7 | 5.5 | 10 | 7 | 4 | 2, 3 | 0 | 12 | coin cell battery | HVQFN56 | -40 to 105 | QM | PMICs for high performance applications processor, configurable PMICs | I2C | AMUX, Frequency Tuning, Multi-Phase, Spread Spectrum, Voltage Monitoring | -40 to 150 | KITPF8100FRDMEVM | |||
Active | 1K @ US$4.42 | i.MX 8X | 2.7 | 5.5 | 10 | 7 | 4 | 2, 3 | 0 | 12 | coin cell battery | HVQFN56 | -40 to 105 | QM | I.MX 8X + DDR3L, PMICs for high performance applications processor | I2C | AMUX, Frequency Tuning, Multi-Phase, Spread Spectrum, Voltage Monitoring | -40 to 150 | KITPF8100FRDMEVM | |||
Active | 1K @ US$4.42 | i.MX 8 | 2.7 | 5.5 | 10 | 7 | 4 | 2, 3 | 0 | 12 | coin cell battery | HVQFN56 | -40 to 105 | QM | PMICs for high performance applications processor, i.MX 8QM +DDR4 (PMIC2) | I2C | AMUX, Frequency Tuning, Multi-Phase, Spread Spectrum, Voltage Monitoring | -40 to 150 | KITPF8100FRDMEVM | |||
Active | 1K @ US$4.42 | LS1043A | 2.7 | 5.5 | 10 | 7 | 4 | 2, 3 | 0 | 12 | coin cell battery | HVQFN56 | -40 to 105 | QM | LS1046A + DDR4, PMICs for high performance applications processor | I2C | AMUX, Frequency Tuning, Multi-Phase, Spread Spectrum, Voltage Monitoring | -40 to 150 | KITPF8100FRDMEVM | |||
Active | 1K @ US$4.42 | i.MX 8 | 2.7 | 5.5 | 10 | 7 | 4 | 2, 3 | 0 | 12 | coin cell battery | HVQFN56 | -40 to 105 | QM | PMICs for high performance applications processor, i.MX 8QM +LPDDR4 (PMIC1) | I2C | AMUX, Frequency Tuning, Multi-Phase, Spread Spectrum, Voltage Monitoring | -40 to 150 | KITPF8100FRDMEVM | |||
Active | 1K @ US$4.42 | i.MX 8 | 2.7 | 5.5 | 10 | 7 | 4 | 2, 3 | 0 | 12 | coin cell battery | HVQFN56 | -40 to 105 | QM | PMICs for high performance applications processor, i.MX 8QM +LPDDR4 (PMIC2) | I2C | AMUX, Frequency Tuning, Multi-Phase, Spread Spectrum, Voltage Monitoring | -40 to 150 | KITPF8100FRDMEVM | |||
Active | 1K @ US$4.42 | i.MX 8 | 2.7 | 5.5 | 10 | 7 | 4 | 2, 3 | 0 | 12 | coin cell battery | HVQFN56 | -40 to 105 | QM | PMICs for high performance applications processor, i.MX 8QM +DDR4 (PMIC1) | I2C | AMUX, Frequency Tuning, Multi-Phase, Spread Spectrum, Voltage Monitoring | -40 to 150 | KITPF8100FRDMEVM | |||
Active | 1K @ US$4.42 | LA1575 | 2.7 | 5.5 | 10 | 7 | 4 | 2, 3 | 0 | 12 | coin cell battery | HVQFN56 | -40 to 105 | QM | LA1575 + LPDDR4, PMICs for high performance applications processor | I2C | AMUX, Frequency Tuning, Multi-Phase, Spread Spectrum, Voltage Monitoring | -40 to 150 | KITPF8100FRDMEVM | |||
Active | 1K @ US$4.42 | i.MX 8X | 2.7 | 5.5 | 10 | 7 | 4 | 2, 3 | 0 | 12 | coin cell battery | HVQFN56 | -40 to 105 | QM | — | I2C | AMUX, Frequency Tuning, Multi-Phase, Spread Spectrum, Voltage Monitoring | -40 to 150 | KITPF8100FRDMEVM | |||
Active | 1K @ US$4.86 | LS1043A, LS1046, S32V, i.MX 8, i.MX 8X | 2.7 | 5.5 | 10 | 7 | 4 | 2, 3 | 0 | 12 | coin cell battery | HVQFN56 | -40 to 105 | up to ASIL A, up to ASIL B | PMICs for high performance applications processor, configurable PMICs | I2C | AMUX, Frequency Tuning, Functional Safety ASIL B, Multi-Phase, Spread Spectrum, Voltage Monitoring | -40 to 150 | KITPF8200FRDMEVM |
Quick reference to our documentation types.
1-10 of 35 documents
Compact List
Receive the full breakdown. See the product footprint and more in the eCad file.

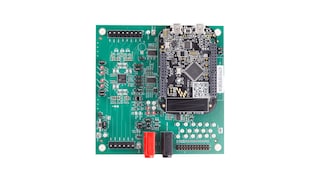

1-5 of 6 hardware offerings
