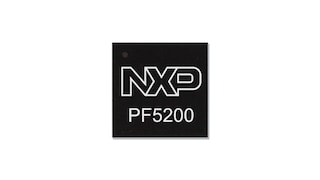

The PF5200 is a multi-channel PMIC device designed to be used for high performance automotive applications. The PF5200 is also highly configurable making it a perfect companion and fit for various system level power requirements.
Integrated voltage monitoring circuits ensure compliance with ISO 26262 standard and functional safety up to ASIL B level. The PF5200 is also available as a standard non-safety device for applications that don't require the ISO 26262 compliance.
The PF5200 is suitable for high current core supply of applications including infotainment, ADAS, vision and radar as a companion to another NXP PMIC like the PF502x family or an SBC like the FS85 family.
This device is suitable for S32 processors based applications and DDR memory supply.
| Part Number | Description | OTP ID | Safety Grade | Package |
|---|---|---|---|---|
| MPF5200AMBA1 | LX2160A | BA1 report, programming and configuration files | ASIL B | HWQFN32 |
| MPF5200AMBA2 | LX2160A | BA2 report, programming and configuration files | ASIL B | HWQFN32 |
| MPF5200AMBA3 | LX2160A | BA3 report, programming and configuration files | ASIL B | HWQFN32 |
| MPF5200AMBA4 | S32R45 | BA4 report, programming and configuration files | ASIL B | HWQFN32 |
| MPF5200AMMG2 | LA1224 | MG2 report, programming and configuration files | QM | HWQFN32 |
| MPF5200AMMG3 | LA1224 | MG3 report, programming and configuration files | QM | HWQFN32 |
This platform facilitates the design of safe power management systems thanks to a portfolio of configurable and linkable devices. It simplifies complex power supply subsystems into a single smart solution.
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
6 results
Include 0 NRND
Part | Order | CAD Model | Description | MCU Supported | Supply Voltage [Min to Max] (V) | Output Current (A) | Number of Buck Regulators | Number of LDO | Number of Boost Regulators | Number of Channels | IQ (μA) | Battery Charger | Package Type | Ambient Operating Temperature (Min to Max) (℃) | Safety Level | Budgetary Price excluding tax | Status | Device Function | Interface and Input Control | Junction Temperature (Min to Max) (℃) | Development Tools | Additional Features - Power Management |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Power Management IC, pre-prog, 2 step-down DC/DC, ASIL-B Safety Level | — | 2.7 to 5.5 | 8 | 2 | 0 | 0 | 2 | 40 | No battery charger | HWQFN32 | -40 to 125 | up to ASIL B | 1K @ US$3.39 | Active | PMICs for VDD core supply, configurable PMICs | I2C | -40 to 150 | KITPF5200FRDMEVM, KITPF5200SKTEVM | Dual phase, Frequency Tuning, Multi-Phase, Spread Spectrum, Voltage Monitoring, Watchdog Monitoring | |||
Power Management IC, pre-prog, 3 step-down DC/DC, 1 LDO, ASIL-B Safety Level | Ethernet PHY | 2.7 to 5.5 | 8 | 2 | 0 | 0 | 2 | 40 | No battery charger | HWQFN32 | -40 to 125 | up to ASIL B | 1K @ US$3.39 | Active | PMICs for VDD core supply, configurable PMICs | I2C | -40 to 150 | KITPF5200FRDMEVM, KITPF5200SKTEVM | Dual phase, Frequency Tuning, Multi-Phase, Spread Spectrum, Voltage Monitoring, Watchdog Monitoring | |||
Power Management IC, pre-prog, 3 step-down DC/DC, 1 LDO, QM Safety Level | DDR4 | 2.7 to 5.5 | 8 | 2 | 0 | 0 | 2 | 40 | No battery charger | HWQFN32 | -40 to 125 | up to ASIL B | 1K @ US$3.39 | Active | PMICs for VDD core supply, configurable PMICs | I2C | -40 to 150 | KITPF5200FRDMEVM, KITPF5200SKTEVM | Dual phase, Frequency Tuning, Multi-Phase, Spread Spectrum, Voltage Monitoring, Watchdog Monitoring | |||
Power Management IC, pre-prog, 3 step-down DC/DC, 1 LDO, QM Safety Level | DDR4 | 2.7 to 5.5 | 8 | 2 | 0 | 0 | 2 | 40 | No battery charger | HWQFN32 | -40 to 125 | up to ASIL B | 1K @ US$3.39 | Active | PMICs for VDD core supply, configurable PMICs | I2C | -40 to 150 | KITPF5200FRDMEVM, KITPF5200SKTEVM | Dual phase, Frequency Tuning, Multi-Phase, Spread Spectrum, Voltage Monitoring, Watchdog Monitoring | |||
Power Management IC, pre-prog, 3 step-down DC/DC, 1 LDO, QM Safety Level | S32R45 | 2.7 to 5.5 | 8 | 2 | 0 | 0 | 2 | 40 | No battery charger | HWQFN32 | -40 to 125 | up to ASIL B | 1K @ US$3.39 | Active | PMICs for VDD core supply, configurable PMICs | I2C | -40 to 150 | KITPF5200FRDMEVM, KITPF5200SKTEVM | Dual phase, Frequency Tuning, Multi-Phase, Spread Spectrum, Voltage Monitoring, Watchdog Monitoring | |||
Power Management IC, pre-prog, 3 step-down DC/DC, 1 LDO, QM Safety Level | — | 2.7 to 5.5 | 8 | 2 | — | — | 2 | 40 | No battery charger | HWQFN32 | -40 to 125 | QM | 1K @ US$3.08 | Active | PMICs for VDD core supply, configurable PMICs, high end Industrial applications | I2C | -40 to 150 | KITPF5200FRDMEVM, KITPF5200SKTEVM | Dual phase, Frequency Tuning, Multi-Phase, Spread Spectrum, Voltage Monitoring, Watchdog Monitoring |
Quick reference to our documentation types.
1-10 of 15 documents
Compact List
1-10 of 15 documents
Compact List
Receive the full breakdown. See the product footprint and more in the eCad file.
3 hardware offerings
Quick reference to our software types.
1 software file
Note: For better experience, software downloads are recommended on desktop.
To get further assistance directly from NXP, please see our Engineering Services.
1 engineering service
To find additional partner offerings that support this product, visit our Partner Marketplace.
