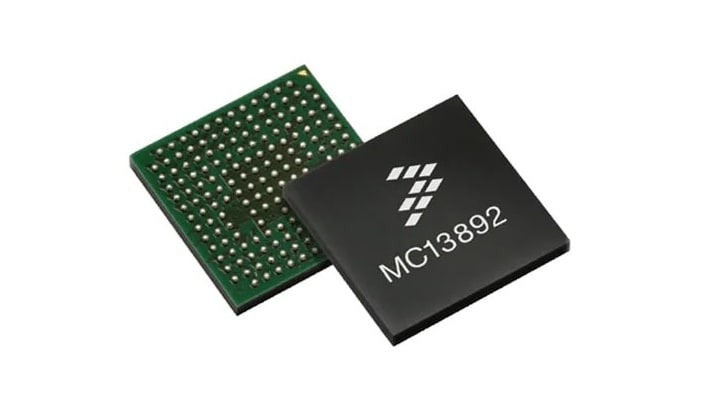

Power Management IC (PMIC) for i.MX35/51

MC13892 Active

Roll over image to zoom in

The MC13892 is a PMIC for the i.MX51, i.MX37, i.MX3 and i.MX27 application processors, ideal for personal media players and navigation devices.

  • Integrates many discrete functions into one IC
  • Incorporates a battery charging system, including USB charging and wall charging
  • Power control logic with processor interfacing and event detection, real-time clock and critical oscillator circuitry with coin cell backup and support for external secure RTC on a companion processor IC device
  • Interfaces with i.MX processors or any other device requiring a highly integrated, bi-directional power management, I/O and communications device

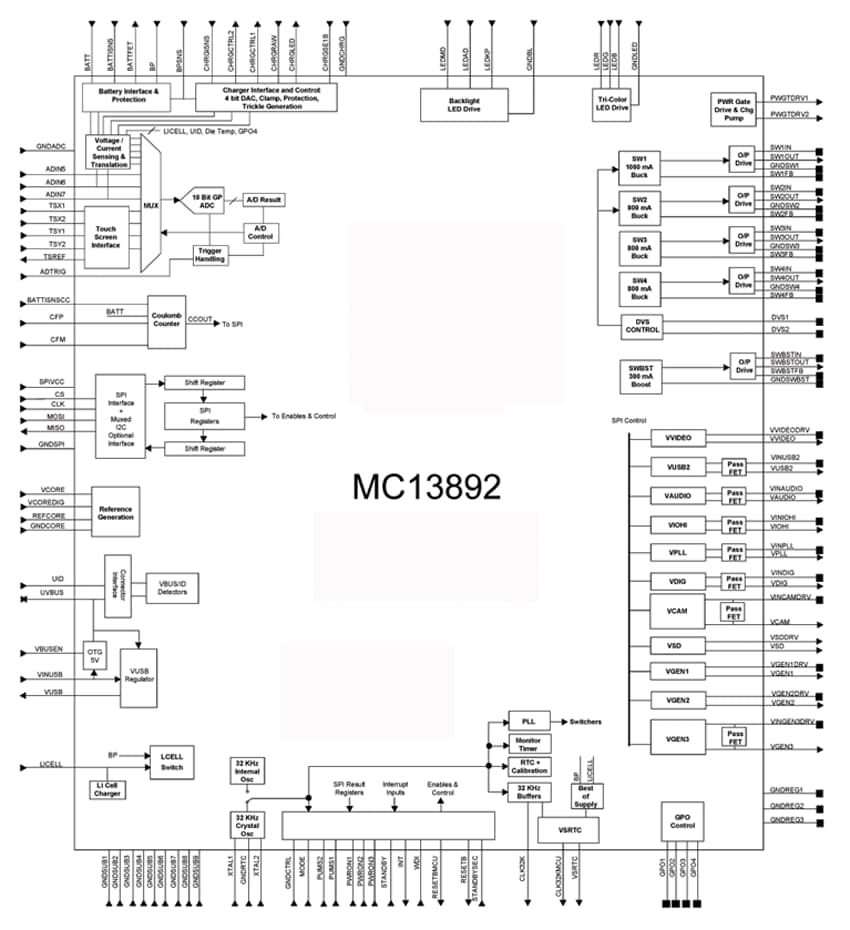

Block Diagram

Freescale MC13892 PMIC

MC13892 Block Diagram
Get diagram PDF

Features

Key Features

  • Battery charger system for wall charging and USB charging
  • 10-bit ADC for monitoring battery and other inputs, plus a coulomb counter support module
  • 4 adjustable output buck converters for direct supply of the processor core and memory
  • 12 adjustable output LDOs with internal and external pass devices
  • 2 boost converters for supplying LCD backlight and RGB LEDs
  • Serial backlight drivers for displays and keypad, plus RGB LED drivers
  • Power control logic with processor interface aand event detection
  • Real-time clock and crystal oscillator circuitry, with coin cell backup and support for external secure real-time clock on a companion system processor IC
  • Touch screen interface
  • Output current: 2 A
  • SPI / I²C bus interface for control and register access
  • i.MX27, i.MX35, i.MX37 and i.MX51 MCU's supported

Buy/Parametrics

4 results

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Budgetary Price excluding tax

MCU Supported

Supply Voltage [min] (V)

Supply Voltage [max] (V)

Output Current (A)

Number of Buck Regulators

Number of LDO

Switching Frequency LV Buck (MHz)

Number of Boost Regulators

Number of Channels

Battery Charger

Package Type

Ambient Operating Temperature (Min to Max) (℃)

Safety Level

Device Function

Interface and Input Control

Additional Features - Analog

Junction Temperature (Min to Max) (℃)

Development Tools

MC13892CJVK
Data Sheet

Active

1K @ US$4.80

i.MX27, i.MX35, i.MX37, i.MX51

2.8

4.65

2

4

12

2

1

18

Li-ion battery

TFBGA139

-40 to 85

QM

PMICs for i.MX processors

I2C

10 bit GP ADC, 3 zone LED/RGB drivers, 8 ch with 3 GPO ADC inputs, Mux and scaling circuitry

-40 to 125

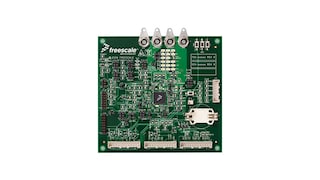

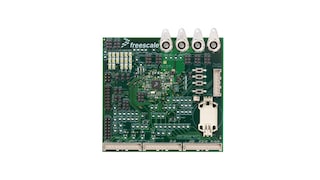

KIT13892VKEVBEJ

MC13892CJVL
Data Sheet

Active

1K @ US$4.80

i.MX27, i.MX35, i.MX37, i.MX51

2.8

4.65

2

4

12

2

1

18

Li-ion battery

LFBGA186

-40 to 85

QM

PMICs for i.MX processors

I2C

10 bit GP ADC, 3 zone LED/RGB drivers, 8 ch with 3 GPO ADC inputs, Mux and scaling circuitry

-40 to 125

KIT13892VKEVBEJ

MC13892DJVK
Data Sheet

Active

1K @ US$4.80

i.MX27, i.MX35, i.MX37, i.MX51

2.8

4.65

2

4

12

2

1

18

Li-ion battery

TFBGA139

-40 to 85

QM

PMICs for i.MX processors

I2C

10 bit GP ADC, 3 zone LED/RGB drivers, 8 ch with 3 GPO ADC inputs, Mux and scaling circuitry

-40 to 125

KIT13892VKEVBEJ

MC13892DJVL
Data Sheet

Active

1K @ US$4.80

i.MX27, i.MX35, i.MX37, i.MX51

2.8

4.65

2

4

12

2

1

18

Li-ion battery

LFBGA186

-40 to 85

QM

PMICs for i.MX processors

I2C

10 bit GP ADC, 3 zone LED/RGB drivers, 8 ch with 3 GPO ADC inputs, Mux and scaling circuitry

-40 to 125

KIT13892VKEVBEJ
