12-Channel Configurable PMIC

MMPF0200 Active

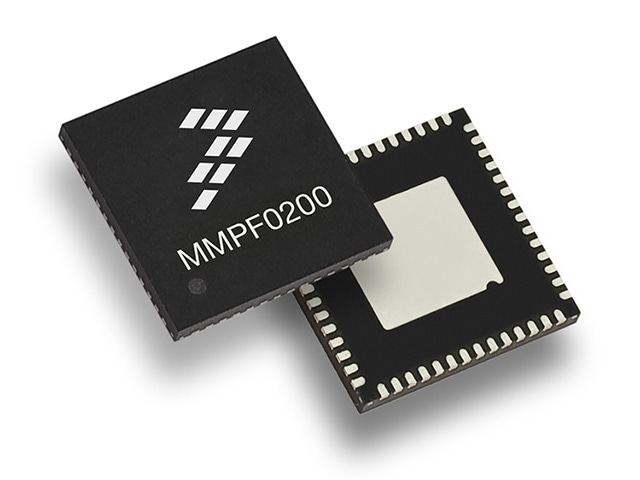

Roll over image to zoom in

The MMPF0200 PMIC has configurable high-performance architecture for improved efficiency across the complete output range and advanced functionality for consumer, industrial and automotive applications.

  • Supports numerous outputs with various current ratings as well as programmable voltage and sequencing
  • Powers the core processor, memory and peripherals to provide a single-chip power solution for multiple applications
  • Reduced design complexity and lower overall bill of materials

The MMPF0200 is ideal for the i.MX 6SoloLite, i.MX 6Solo and i.MX 6DualLite applications processors, providing a platform-level solution from that enables faster time to market.

Block Diagram

PF0200

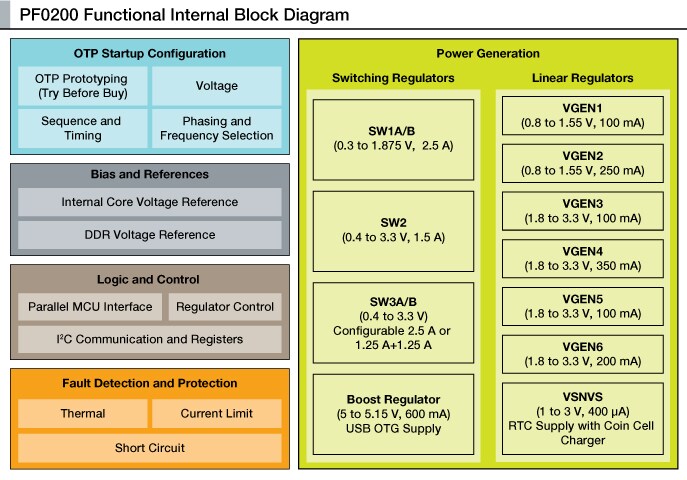

MMPF0200 Block Diagram
Get diagram PDF

Features

Input Supply

  • Input voltage range to PMIC: 2.8 - 4.5 V

Power Supplies

  • 4 Buck regulators
  • Three to four channel - configurable
  • Dynamic voltage scaling
  • Modes: PWM, PFM, APS
  • Programmable output voltage
  • Programmable current limit
  • Programmable soft start
  • Programmable PWM switching frequency
  • Programmable OCP with fault interrupt
  • Boost regulator
  • OTG support
  • Modes: PFM and Auto
  • OCP fault interrupt
  • LDOs
  • Six users programmable LDO
  • Soft start
  • Reference supplies
  • LDO/Switch for RTC supply
  • DDR memory reference voltage

Clocking and Communication

  • 16 MHz internal leader clock
  • I²C interface and input control

Configurability

  • User programmable standby, sleep, and Off modes
  • One time programmable (OTP) memory for device configuration
  • User programmable start-up sequence and timing
  • Battery-backed memory including coin cell charger
  • Industry-leading light load efficiency
  • Software support for i.MX6 dynamic voltage scaling

Key Features

  • i.MX53, i.MX6DL, i.MX6S, i.MX6SL and i.MX6SX MCU supported
  • Output current 2.5 A

More

Buy/Parametrics

9 results

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Budgetary Price excluding tax

MCU Supported

Supply Voltage [min] (V)

Supply Voltage [max] (V)

Output Current (A)

Number of Buck Regulators

Number of LDO

Switching Frequency LV Buck (MHz)

Number of Boost Regulators

Number of Channels

Battery Charger

Package Type

Ambient Operating Temperature (Min to Max) (℃)

Safety Level

Device Function

Interface and Input Control

Additional Features - Analog

Junction Temperature (Min to Max) (℃)

Development Tools

MMPF0200F0AEP
Data Sheet

Active

1K @ US$3.38

i.MX53, i.MX6DL, i.MX6S, i.MX6SX

2.8

4.5

2.5

4

6

2

1

12

coin cell battery

HVQFN56

-40 to 85

QM

PMICs for i.MX processors

I2C

Sleep Mode, Standby, Stop Mode

-40 to 125

KITPF0200EPEVBE

MMPF0200F0ANES
Data Sheet

Active

1K @ US$3.69

i.MX53, i.MX6DL, i.MX6S, i.MX6SX

2.8

4.5

2.5

4

6

2

1

12

coin cell battery

HVQFN56

-40 to 105

QM

PMICs for i.MX processors

I2C

Sleep Mode, Standby, Stop Mode

-40 to 125

KITPF0200EPEVBE

MMPF0200F3AEP
Data Sheet

Active

1K @ US$3.38

i.MX53, i.MX6DL, i.MX6S, i.MX6SL, i.MX6SX

2.8

4.5

2.5

4

6

2

1

12

coin cell battery

HVQFN56

-40 to 85

QM

PMICs for i.MX processors

I2C

Sleep Mode, Standby, Stop Mode

-40 to 125

KITPF0200EPEVBE

MMPF0200F3ANES
Data Sheet

Active

1K @ US$3.69

i.MX53, i.MX6DL, i.MX6S, i.MX6SL, i.MX6SX

2.8

4.5

2.5

4

6

2

1

12

coin cell battery

HVQFN56

-40 to 85

QM

PMICs for i.MX processors

I2C

Sleep Mode, Standby, Stop Mode

-40 to 125

KITPF0200EPEVBE

MMPF0200F4AEP
Data Sheet

Active

1K @ US$3.38

i.MX53, i.MX6DL, i.MX6S, i.MX6SL, i.MX6SX

2.8

4.5

2.5

4

6

2

1

12

coin cell battery

HVQFN56

-40 to 85

QM

PMICs for i.MX processors

I2C

Sleep Mode, Standby, Stop Mode

-40 to 125

KITPF0200EPEVBE

MMPF0200F4ANES
Data Sheet

Active

1K @ US$3.69

i.MX53, i.MX6DL, i.MX6S, i.MX6SL, i.MX6SX

2.8

4.5

2.5

4

6

2

1

12

coin cell battery

HVQFN56

-40 to 105

QM

PMICs for i.MX processors

I2C

Sleep Mode, Standby, Stop Mode

-40 to 125

KITPF0200EPEVBE

MMPF0200F6AEP
Data Sheet

Active

1K @ US$3.38

i.MX53, i.MX6DL, i.MX6S, i.MX6SL, i.MX6SX

2.8

4.5

2.5

4

6

2

1

12

coin cell battery

HVQFN56

-40 to 85

QM

PMICs for i.MX processors

I2C

Sleep Mode, Standby, Stop Mode

-40 to 125

KITPF0200EPEVBE

MMPF0200NPAEP
Data Sheet

Active

1K @ US$3.38

i.MX53, i.MX6DL, i.MX6S, i.MX6SL, i.MX6SX

2.8

4.5

2.5

4

6

2

1

12

coin cell battery

HVQFN56

-40 to 85

QM

PMICs for i.MX processors

I2C

Sleep Mode, Standby, Stop Mode

-40 to 125

KITPF0200EPEVBE

MMPF0200NPAZES
Data Sheet

Active

1K @ US$3.86

i.MX53, i.MX6DL, i.MX6S, i.MX6SL, i.MX6SX

2.8

4.5

2.5

4

6

2

1

12

coin cell battery

HVQFN56

-40 to 85

QM

PMICs for i.MX processors

I2C

Sleep Mode, Standby, Stop Mode

-40 to 125

KITPF0200EPEVBE

N true 0 PSPMMPF0200en 13 Application Note Application Note t789 5 Brochure Brochure t518 1 Data Sheet Data Sheet t520 2 Product Change Notice Product Change Notice t526 2 Selector Guide Selector Guide t528 1 White Paper White Paper t530 2 en_US 1 1 MMPF0200F0AEP,MMPF0200F0ANES,MMPF0200F3AEP,MMPF0200F3ANES,MMPF0200F4AEP,MMPF0200F4ANES,MMPF0200F6AEP,MMPF0200NPAEP 8 English The PF0200 Power Management Integrated Circuit (PMIC) provides a highly programmable/ configurable architecture, with fully integrated power devices and minimal external components. 1391706473550722529306 PSP 2.3 MB None None documents None 1391706473550722529306 /docs/en/data-sheet/MMPF0200.pdf 2323216 /docs/en/data-sheet/MMPF0200.pdf MMPF0200 N N 2016-10-31 MMPF0200, 12 Channel Configurable Power Management Integrated Circuit - Data Sheet /docs/en/data-sheet/MMPF0200.pdf /docs/en/data-sheet/MMPF0200.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Apr 14, 2022 Data Sheet t520 Data Sheet Data Sheet Y N MMPF0200, 12 Channel Configurable Power Management Integrated Circuit - Data Sheet true en_US en Data Sheet Data Sheet 1 2 MMPF0200NPAZES 2.0 English The PF0200 Power Management Integrated Circuit (PMIC) provides a highly programmable/ configurable architecture, with fully integrated power devices. 1400110674606710490704 PSP 3.0 MB None None documents None 1400110674606710490704 /docs/en/data-sheet/MMPF0200Z.pdf 2994196 /docs/en/data-sheet/MMPF0200Z.pdf MMPF0200Z documents N N 2016-10-31 MMPF0200Z, 12 Channel Configurable Power Management Integrated Circuit - Data Sheet /docs/en/data-sheet/MMPF0200Z.pdf /docs/en/data-sheet/MMPF0200Z.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en Nov 11, 2014 980000996212993340 Data Sheet Y N MMPF0200Z, 12 Channel Configurable Power Management Integrated Circuit - Data Sheet Application Note Application Note 5 3 1.0 English This document presents the main concepts behind the wheel location algorithm of the KWL software. The document details the approach used and explains how this led to the current implementation. 1485456925034706793334 PSP 6.7 MB Registration without Disclaimer None documents Extended 1485456925034706793334 /secured/assets/documents/en/application-note/AN5322.pdf 6749797 /secured/assets/documents/en/application-note/AN5322.pdf AN5322 documents Y N 2017-01-26 AN5322: TPMS Wheel Location Introduction and Main Concepts Application Note /webapp/Download?colCode=AN5322 /secured/assets/documents/en/application-note/AN5322.pdf Application Note N 645036621402383989 2024-01-19 pdf Y en Jan 25, 2017 645036621402383989 Application Note Y N AN5322: TPMS Wheel Location Introduction and Main Concepts Application Note 4 2.0 English This application note provides guidelines for schematic entry using the MMPF0200. 1387837853819709888220 PSP 211.1 KB Registration without Disclaimer None documents Extended 1387837853819709888220 /secured/assets/documents/en/application-note/AN4751.pdf 211089 /secured/assets/documents/en/application-note/AN4751.pdf AN4751 documents Y N 2016-10-31 AN4751, Schematic Guidelines for the MMPF0200 - Application Note /webapp/Download?colCode=AN4751 /secured/assets/documents/en/application-note/AN4751.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Jun 3, 2015 645036621402383989 Application Note Y N AN4751, Schematic Guidelines for the MMPF0200 - Application Note 5 5.0 English This document describes good practices for the layout of PF0100 and PF0200 devices on printed circuit boards. Though the guidelines are applicable to PF0100 and PF0200, reference is made only to the PF0100 throughout the document for simplicity. 1352739056918707685326 PSP 373.8 KB Registration without Disclaimer None documents Extended 1352739056918707685326 /secured/assets/documents/en/application-note/AN4622.pdf 373767 /secured/assets/documents/en/application-note/AN4622.pdf AN4622 documents Y N 2016-10-31 AN4622, MMPF0100 and MMPF0200 Layout Guidelines - Application Note /webapp/Download?colCode=AN4622 /secured/assets/documents/en/application-note/AN4622.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Jun 2, 2015 645036621402383989 Application Note Y N AN4622, MMPF0100 and MMPF0200 Layout Guidelines - Application Note 6 1.0 English This document provides a detailed description of the One-Time Programmable (OTP) function of the MMPF0200. It provides the system requirements and instructions to program the fuses for a selected power-up configuration. 1392656499492732707969 PSP 974.3 KB Registration without Disclaimer None documents Extended 1392656499492732707969 /secured/assets/documents/en/application-note/AN4879.pdf 974333 /secured/assets/documents/en/application-note/AN4879.pdf AN4879 documents Y N 2016-10-31 AN4879, MMPF0200 OTP Programming Instructions - Application Note /webapp/Download?colCode=AN4879 /secured/assets/documents/en/application-note/AN4879.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Feb 17, 2014 645036621402383989 Application Note Y N AN4879, MMPF0200 OTP Programming Instructions - Application Note 7 1.0 English The switching regulators in the PF0100 and PF0200 operate at a default switching frequency of 2 MHz in the PWM mode. The switching frequency is derived from an internal 16 MHz leader clock. In this application note, the procedure to change the 16 MHz clock is explained. 1387473147843729726333 PSP 945.6 KB Registration without Disclaimer None documents Extended 1387473147843729726333 /secured/assets/documents/en/application-note/AN4840.pdf 945620 /secured/assets/documents/en/application-note/AN4840.pdf AN4840 documents Y N 2016-10-31 AN4840, MMPF0100 and MMPF0200 Frequency Margining - Application Note /webapp/Download?colCode=AN4840 /secured/assets/documents/en/application-note/AN4840.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Dec 18, 2013 645036621402383989 Application Note Y N AN4840, MMPF0100 and MMPF0200 Frequency Margining - Application Note Brochure Brochure 1 8 4 Japanese NXPのPMICは、i.MXアプリケーション、プロセッサ、ネットワーキング、その他のプロセッサ向けに、スケーラブルで堅牢な実績のあるプラットフォーム・ソリューションを提供します。 1455566973736725260918ja PSP 505.9 KB None None documents None 1455566973736725260918 /docs/ja/brochure/PMICBRA4.pdf 505864 /docs/ja/brochure/PMICBRA4.pdf PMICBRA4 documents N N 2016-10-31 Power Management Integrated Circuits Brochure /docs/ja/brochure/PMICBRA4.pdf /docs/ja/brochure/PMICBRA4.pdf Brochure N 712453003803778552 2025-02-19 ja Nov 1, 2023 712453003803778552 Brochure Y N パワー・マネジメント集積回路 (PMIC) – パンフレット 6 English Power management integrated circuits are designed to offer optimum integration for a wide range of devices. 1455566973736725260918 PSP 505.9 KB None None documents None 1455566973736725260918 /docs/en/brochure/PMICBRA4.pdf 505864 /docs/en/brochure/PMICBRA4.pdf PMICBRA4 documents N N 2016-10-31 Power Management Integrated Circuits Brochure /docs/en/brochure/PMICBRA4.pdf /docs/en/brochure/PMICBRA4.pdf Brochure N 712453003803778552 2025-02-19 pdf N en Sep 6, 2024 712453003803778552 Brochure Y N Power Management Integrated Circuits Brochure Product Change Notice Product Change Notice 2 9 0 English 1406911309288711223234 PSP 4.6 KB None None documents None 1406911309288711223234 /docs/en/product-change-notice/PCN16369.htm 4587 /docs/en/product-change-notice/PCN16369.htm PCN16369 documents N 2014-08-01 PF0100/PF0100A and PF0200/PF0200A Devices Datasheet Update /docs/en/product-change-notice/PCN16369.htm /docs/en/product-change-notice/PCN16369.htm Product Change Notice N 454076741825495278 2022-12-07 htm en Aug 1, 2014 454076741825495278 Product Change Notice D N PF0100/PF0100A and PF0200/PF0200A Devices Datasheet Update 10 0 English 1401397454426700354010 PSP 17.7 KB None None documents None 1401397454426700354010 /docs/en/product-change-notice/PCN16274.htm 17705 /docs/en/product-change-notice/PCN16274.htm PCN16274 documents N 2014-05-29 PF0200A Datasheet Update /docs/en/product-change-notice/PCN16274.htm /docs/en/product-change-notice/PCN16274.htm Product Change Notice N 454076741825495278 2022-12-07 htm en May 29, 2014 454076741825495278 Product Change Notice D N PF0200A Datasheet Update Selector Guide Selector Guide 1 11 3 Chinese 1404924651029729642615zh PSP 1.2 MB None None documents None 1404924651029729642615 /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf 1202686 /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf INDCONTANLPRDFL documents N N 2016-10-31 Analog Automotive and Industrial Selector Guide /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf /docs/zh/product-selector-guide/INDCONTANLPRDFL.pdf Selector Guide N 553557935274807777 2025-01-05 zh Sep 18, 2014 553557935274807777 Selector Guide Y N 面向工业市场的模拟产品 - 简介 12 English For system designers who want more efficient motor operation with variable speed and sensorless control, NXP offers H-bridge, brushed and brushless DC motor drivers required to complete system design. 1404924651029729642615 PSP 1.2 MB None None documents None 1404924651029729642615 /docs/en/product-selector-guide/INDCONTANLPRDFL.pdf 1202686 /docs/en/product-selector-guide/INDCONTANLPRDFL.pdf INDCONTANLPRDFL documents N N 2016-10-31 Analog Automotive and Industrial Selector Guide /docs/en/product-selector-guide/INDCONTANLPRDFL.pdf /docs/en/product-selector-guide/INDCONTANLPRDFL.pdf Selector Guide N 553557935274807777 2025-01-05 pdf N en Jan 29, 2021 553557935274807777 Selector Guide Y N Analog Automotive and Industrial Selector Guide White Paper White Paper 2 12 0 Chinese 软件定义汽车的电源架构由系统基础芯片(SBC)和/或电源管理集成电路(PMIC)进行管理，尽管驾驶员看不见，但电源架构不可或缺。每个组件的电源都构成了复杂的挑战，需要同样复杂的解决方案。 1718053785186698755373zh PSP 212.9 KB Registration without Disclaimer None documents Extended 1718053785186698755373 /secured/assets/documents/zh/white-paper/PMICWPA4.pdf 212885 /secured/assets/documents/zh/white-paper/PMICWPA4.pdf PMICWPA4 documents Y N 2024-06-10 Powering the Ambition of Software-Defined Vehicles White Paper /secured/assets/documents/zh/white-paper/PMICWPA4.pdf https://www.nxp.com.cn/webapp/Download?colCode=PMICWPA4&docLang=zh White Paper N 918633085541740938 2025-02-19 zh Jun 10, 2024 918633085541740938 White Paper Y N 驱动软件定义汽车 0 English While entirely invisible to the driver, the software-defined vehicle’s power architecture, orchestrated through System Basis Chips (SBCs) and/or Power Management Integrated Circuits (PMICs), is fundamental. The power supply for every component poses sophisticated challenges which require equally sophisticated solutions. 1718053785186698755373 PSP 212.9 KB Registration without Disclaimer None documents Extended 1718053785186698755373 /secured/assets/documents/en/white-paper/PMICWPA4.pdf 212885 /secured/assets/documents/en/white-paper/PMICWPA4.pdf PMICWPA4 documents Y N 2024-06-10 Powering the Ambition of Software-Defined Vehicles White Paper /webapp/Download?colCode=PMICWPA4 /secured/assets/documents/en/white-paper/PMICWPA4.pdf White Paper N 918633085541740938 2025-02-19 pdf Y en Jun 10, 2024 918633085541740938 White Paper Y N Powering the Ambition of Software-Defined Vehicles White Paper 13 1 English This paper will discuss the hidden cost of discrete power solution implementations and robust and reliable NXP<sup>&#174;</sup>. PMICs which effectively reduce project costs. 1467308939620719455692 PSP 673.4 KB None None documents None 1467308939620719455692 /docs/en/white-paper/PMICWP.pdf 673441 /docs/en/white-paper/PMICWP.pdf PMICWP documents N N 2016-10-31 PMICWP, A Case Against Discretes - White paper /docs/en/white-paper/PMICWP.pdf /docs/en/white-paper/PMICWP.pdf White Paper N 918633085541740938 2022-12-07 pdf N en Oct 3, 2016 918633085541740938 White Paper Y N PMICWP, A Case Against Discretes - White paper false 0 MMPF0200 downloads en true 1 Y PSP Y Y Application Note 5 /secured/assets/documents/en/application-note/AN5322.pdf 2017-01-26 1485456925034706793334 PSP 3 Jan 25, 2017 Application Note This document presents the main concepts behind the wheel location algorithm of the KWL software. The document details the approach used and explains how this led to the current implementation. Registration without Disclaimer /secured/assets/documents/en/application-note/AN5322.pdf English documents 6749797 None 645036621402383989 2024-01-19 Y /webapp/Download?colCode=AN5322 AN5322: TPMS Wheel Location Introduction and Main Concepts Application Note /secured/assets/documents/en/application-note/AN5322.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1.0 Y N AN5322: TPMS Wheel Location Introduction and Main Concepts Application Note 6.7 MB AN5322 N 1485456925034706793334 /secured/assets/documents/en/application-note/AN4751.pdf 2016-10-31 1387837853819709888220 PSP 4 Jun 3, 2015 Application Note This application note provides guidelines for schematic entry using the MMPF0200. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4751.pdf English documents 211089 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4751 AN4751, Schematic Guidelines for the MMPF0200 - Application Note /secured/assets/documents/en/application-note/AN4751.pdf documents 645036621402383989 Application Note N en Extended Y pdf 2.0 Y N AN4751, Schematic Guidelines for the MMPF0200 - Application Note 211.1 KB AN4751 N 1387837853819709888220 /secured/assets/documents/en/application-note/AN4622.pdf 2016-10-31 1352739056918707685326 PSP 5 Jun 2, 2015 Application Note This document describes good practices for the layout of PF0100 and PF0200 devices on printed circuit boards. Though the guidelines are applicable to PF0100 and PF0200, reference is made only to the PF0100 throughout the document for simplicity. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4622.pdf English documents 373767 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4622 AN4622, MMPF0100 and MMPF0200 Layout Guidelines - Application Note /secured/assets/documents/en/application-note/AN4622.pdf documents 645036621402383989 Application Note N en Extended Y pdf 5.0 Y N AN4622, MMPF0100 and MMPF0200 Layout Guidelines - Application Note 373.8 KB AN4622 N 1352739056918707685326 /secured/assets/documents/en/application-note/AN4879.pdf 2016-10-31 1392656499492732707969 PSP 6 Feb 17, 2014 Application Note This document provides a detailed description of the One-Time Programmable (OTP) function of the MMPF0200. It provides the system requirements and instructions to program the fuses for a selected power-up configuration. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4879.pdf English documents 974333 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4879 AN4879, MMPF0200 OTP Programming Instructions - Application Note /secured/assets/documents/en/application-note/AN4879.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1.0 Y N AN4879, MMPF0200 OTP Programming Instructions - Application Note 974.3 KB AN4879 N 1392656499492732707969 /secured/assets/documents/en/application-note/AN4840.pdf 2016-10-31 1387473147843729726333 PSP 7 Dec 18, 2013 Application Note The switching regulators in the PF0100 and PF0200 operate at a default switching frequency of 2 MHz in the PWM mode. The switching frequency is derived from an internal 16 MHz leader clock. In this application note, the procedure to change the 16 MHz clock is explained. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4840.pdf English documents 945620 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4840 AN4840, MMPF0100 and MMPF0200 Frequency Margining - Application Note /secured/assets/documents/en/application-note/AN4840.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1.0 Y N AN4840, MMPF0100 and MMPF0200 Frequency Margining - Application Note 945.6 KB AN4840 N 1387473147843729726333 Brochure 1 /docs/en/brochure/PMICBRA4.pdf 2016-10-31 1455566973736725260918 PSP 8 Sep 6, 2024 Brochure Power management integrated circuits are designed to offer optimum integration for a wide range of devices. None /docs/en/brochure/PMICBRA4.pdf English documents 505864 None 712453003803778552 2025-02-19 N /docs/en/brochure/PMICBRA4.pdf Power Management Integrated Circuits Brochure /docs/en/brochure/PMICBRA4.pdf documents 712453003803778552 Brochure N en None Y pdf 6 N N Power Management Integrated Circuits Brochure 505.9 KB PMICBRA4 N 1455566973736725260918 Data Sheet 2 /docs/en/data-sheet/MMPF0200Z.pdf 2016-10-31 1400110674606710490704 PSP 2 Nov 11, 2014 Data Sheet The PF0200 Power Management Integrated Circuit (PMIC) provides a highly programmable/ configurable architecture, with fully integrated power devices. None /docs/en/data-sheet/MMPF0200Z.pdf English documents 2994196 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/MMPF0200Z.pdf MMPF0200Z, 12 Channel Configurable Power Management Integrated Circuit - Data Sheet /docs/en/data-sheet/MMPF0200Z.pdf documents 980000996212993340 Data Sheet N en None Y pdf 2.0 N N MMPF0200Z, 12 Channel Configurable Power Management Integrated Circuit - Data Sheet MMPF0200NPAZES 3.0 MB MMPF0200Z N 1400110674606710490704 /docs/en/data-sheet/MMPF0200.pdf 2016-10-31 1391706473550722529306 PSP 1 Apr 14, 2022 Data Sheet Data Sheet The PF0200 Power Management Integrated Circuit (PMIC) provides a highly programmable/ configurable architecture, with fully integrated power devices and minimal external components. None /docs/en/data-sheet/MMPF0200.pdf English 2323216 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MMPF0200.pdf MMPF0200, 12 Channel Configurable Power Management Integrated Circuit - Data Sheet /docs/en/data-sheet/MMPF0200.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 8 N N MMPF0200, 12 Channel Configurable Power Management Integrated Circuit - Data Sheet MMPF0200F0AEP,MMPF0200F0ANES,MMPF0200F3AEP,MMPF0200F3ANES,MMPF0200F4AEP,MMPF0200F4ANES,MMPF0200F6AEP,MMPF0200NPAEP 2.3 MB MMPF0200 N 1391706473550722529306 Product Change Notice 2 /docs/en/product-change-notice/PCN16369.htm 2014-08-01 1406911309288711223234 PSP 9 Aug 1, 2014 Product Change Notice None /docs/en/product-change-notice/PCN16369.htm English documents 4587 None 454076741825495278 2022-12-07 /docs/en/product-change-notice/PCN16369.htm PF0100/PF0100A and PF0200/PF0200A Devices Datasheet Update /docs/en/product-change-notice/PCN16369.htm documents 454076741825495278 Product Change Notice N en None D htm 0 N PF0100/PF0100A and PF0200/PF0200A Devices Datasheet Update 4.6 KB PCN16369 N 1406911309288711223234 /docs/en/product-change-notice/PCN16274.htm 2014-05-29 1401397454426700354010 PSP 10 May 29, 2014 Product Change Notice None /docs/en/product-change-notice/PCN16274.htm English documents 17705 None 454076741825495278 2022-12-07 /docs/en/product-change-notice/PCN16274.htm PF0200A Datasheet Update /docs/en/product-change-notice/PCN16274.htm documents 454076741825495278 Product Change Notice N en None D htm 0 N PF0200A Datasheet Update 17.7 KB PCN16274 N 1401397454426700354010 Selector Guide 1 /docs/en/product-selector-guide/INDCONTANLPRDFL.pdf 2016-10-31 1404924651029729642615 PSP 11 Jan 29, 2021 Selector Guide For system designers who want more efficient motor operation with variable speed and sensorless control, NXP offers H-bridge, brushed and brushless DC motor drivers required to complete system design. None /docs/en/product-selector-guide/INDCONTANLPRDFL.pdf English documents 1202686 None 553557935274807777 2025-01-05 N /docs/en/product-selector-guide/INDCONTANLPRDFL.pdf Analog Automotive and Industrial Selector Guide /docs/en/product-selector-guide/INDCONTANLPRDFL.pdf documents 553557935274807777 Selector Guide N en None Y pdf 12 N N Analog Automotive and Industrial Selector Guide 1.2 MB INDCONTANLPRDFL N 1404924651029729642615 White Paper 2 /secured/assets/documents/en/white-paper/PMICWPA4.pdf 2024-06-10 1718053785186698755373 PSP 12 Jun 10, 2024 White Paper While entirely invisible to the driver, the software-defined vehicle’s power architecture, orchestrated through System Basis Chips (SBCs) and/or Power Management Integrated Circuits (PMICs), is fundamental. The power supply for every component poses sophisticated challenges which require equally sophisticated solutions. Registration without Disclaimer /secured/assets/documents/en/white-paper/PMICWPA4.pdf English documents 212885 None 918633085541740938 2025-02-19 Y /webapp/Download?colCode=PMICWPA4 Powering the Ambition of Software-Defined Vehicles White Paper /secured/assets/documents/en/white-paper/PMICWPA4.pdf documents 918633085541740938 White Paper N en Extended Y pdf 0 Y N Powering the Ambition of Software-Defined Vehicles White Paper 212.9 KB PMICWPA4 N 1718053785186698755373 /docs/en/white-paper/PMICWP.pdf 2016-10-31 1467308939620719455692 PSP 13 Oct 3, 2016 White Paper This paper will discuss the hidden cost of discrete power solution implementations and robust and reliable NXP<sup>&#174;</sup>. PMICs which effectively reduce project costs. None /docs/en/white-paper/PMICWP.pdf English documents 673441 None 918633085541740938 2022-12-07 N /docs/en/white-paper/PMICWP.pdf PMICWP, A Case Against Discretes - White paper /docs/en/white-paper/PMICWP.pdf documents 918633085541740938 White Paper N en None Y pdf 1 N N PMICWP, A Case Against Discretes - White paper 673.4 KB PMICWP N 1467308939620719455692 true Y Products
