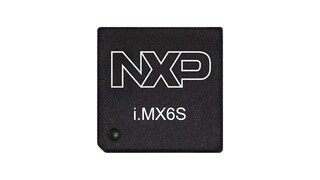

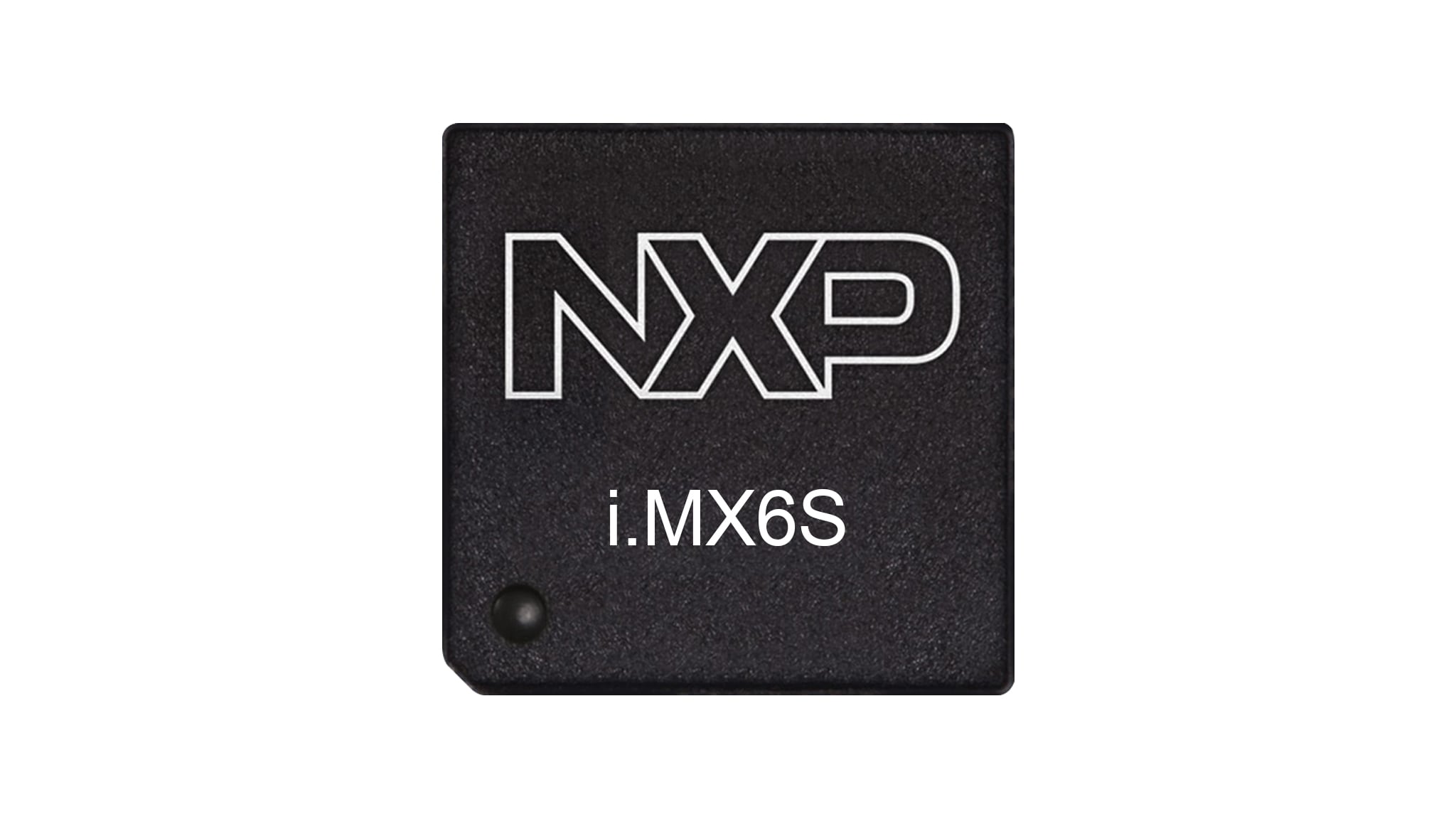

i.MX 6Solo Applications Processors | Single Arm® Cortex®-A9 @ 1GHz

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click over video to play

The i.MX 6 series of applications processors combines scalable platforms with broad levels of integration and power-efficient processing capabilities particularly suited to multimedia applications. The i.MX 6Solo processor features:

Enhanced capabilities of high-tier portable applications by fulfilling MIPS needs of operations systems and games
Multilevel memory system
Smart speed technology that enables the designer to deliver a feature-rich product, requiring levels of power far lower than industry expectations
Dynamic voltage and frequency scaling
Powerful graphics acceleration
Interface flexibility
Integrated power management throughout the device
Advanced hardware-enabled security

The i.MX 6Solo is supported by companion power management ICs (PMIC) MMPF0100, MMPF0200 and PF3001.

i.MX 6 applications processors are part of NXP's EdgeVerse™ edge computing platform.

Data Sheet

Reference Manual

Product Details

Block Diagram

i.MX 6Solo Multimedia Applications Processor Block Diagram

Get diagram PDF

Features

CPU Complex

1x Arm^{^®} Cortex^®-A9 up to 1 GHz
512 KB L2 cache
32 KB instruction and data caches
NEON SIMD media accelerator

Multimedia

GPU 3D
- Vivante GC880
- 35Mtri/s 266Mpxl/s Open GL ES 2.0
GPU 2D(Vector Graphics)
- Emulated on GPU 3D
GPU 2D(Composition)
- Vivante GC320
- 600Mpxl/s, BLIT
Video Decode
- 1080p30 + D1
Video Encode
- 1080p30 H.264 BP/ Dual 720p encode
Camera Interface
- Types: 1x 20-bit parallel, MIPI-CSI2 (2 lanes)

Memory

DDR
- 32 bit LP-DDR3/LV-DDR3
NAND
- SLC/MLC, 40-bit ECC, ONFI2.2, DDR

Connectivity

Automotive
- FlexCAN
- MLB
Four USB2.0
- 1x HS OTG + PHY
- 1x Host + PHY
- 2x Host USB HSIC
Ethernet
- 1 Gbps + IEEE^{^®}1588
Expansion Ports
- 3x SD/MMC 4.4, 1x SDXC
- 4x SPI, 5x UART, 3x I²C
- MIPI-HSI
- PCIe 2.0 (1 lane)

Display

2 x WXGA (1366x786)
EPDC, LVDS, Parallel, MIPI-DSI

Advanced Power Management

PMU integration
NXP^{^®} PF100 power management unit

Security

Advanced security supporting:

High Assurance Boot
Cryptographic cipher engines
Random number generator
Tamper detection

Package and Temperature

21 x 21 mm 0.8 mm BGA
Consumer (0C to +95C), up to 1 GHz
Industrial (-40C to +105C), up to 800 MHz
Automotive (-40C to +125C), AEC-Q100, up to 800 MHz GHz

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Design Files

Quick reference to our design files types.

3 design files

Receive the full breakdown. See the product footprint and more in the eCad file.

Models
i.MX 6DualLIte and i.MX 6Solo IBIS Model File

ZIPRev 1.4.Jan 11, 2017 00:00:0015626 KBIMX6_DL_S_IBIS

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Models
i.MX 6DualLite and i.MX 6Solo BSDL File

ZIPRev 1.1Oct 24, 2018 00:00:0021 KBIMX6_DL_S_BSDL

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
Design files for i.MX 6Quad and i.MX 6DualLite CPU1 Cards

ZIPRev 1.0.2May 19, 2014 00:00:0033.7 MBi.MX6_SABRE_AI_CPU1_DESIGNFILES

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

Quick reference to our board types.

1 hardware offering

Evaluation and Development Boards
SABRE Board for Smart Devices Based on the i.MX 6QuadPlus Applications Processors

RD-IMX6QP-SABRE

1-5 of 63 hardware offerings

Embedded Board Solutions
RBZ imx6 module

This module based on the imx6 is available with a set of standard configurations, but we offer the possibility to add any configuration requested and even a licensing mod...

By RBZ Embedded Logics Gold Partner
Embedded Board Solutions
phyBOARD-Nunki i.MX 6

phyBOARD-Nunki is designed especially for image processing applications-a further development of our proven phyBOARD-Mira. It makes optimal use of the two Image Processin...

By PHYTEC Platinum Partner
Embedded Board Solutions
System on module IAC-IMX6-CM

IAC-IMX6-CM Core Board adopts NXP Cortex-A9 processor.It adopts 8-layer PCB in gold immersion technology. Stable and reliable quality enable the final product to market s...

By Zhejiang Qiyang Intelligent Technology Co., Ltd. Gold Partner
Embedded Board Solutions
HMX636

i.MX6 Mother Board for Industrial or handheld devices, Utilize it as simple as MCU, Small size 62 x 34.5 x 3.5mm ,low cost and high reliability stamps hole mount, for OD...

By Honmax Technology, Ltd Gold Partner
Embedded Board Solutions
SideKick-i.MX6-MXM SOM

SideKick is based on Our i.MX6 and is a MXM compatible CPU module for fast multimedia focused applications. The i.MX6 module has on-board memory expandable to 4GB DDR3 RA...

By Firstview Consultants Gold Partner
Embedded Board Solutions
SECO SBC-SANTINOLT-MX6

Single Board Computer (SBC) based on NXP i.MX6 processor.

By SECO Gold Partner
Embedded Board Solutions
SECO Santino Vision 5 FM MX6

5.0 inch Flush Mount HMI based on NXP i.MX6 processor.

By SECO Gold Partner
Embedded Board Solutions
i.Core 1.5 MX6

i.MX6 based EDIMM version with eMMC and MIPI-CSI

By Engicam Gold Partner
Embedded Board Solutions
MicroGEA MX6ULL

The MicroGEA Module is the smallest module on the market based on i.MX 6ULL; everything is included in a very amazing size of 25 x 25 mm , with a height of 3.5 mm.

By Engicam Gold Partner
Embedded Board Solutions
i.MX6 Solo Pico ITX SBC (Single Board Computer)

i.MX6 Solo core based Pico-ITX SBC, ARM cortex A9 CPU @800MHz, HD 1080p encode & decode, HD video playback in 2D/3D GPU. Highly integrated platform for increased perfor...

By iWave Global Gold Partner
Embedded Board Solutions
MSC NANORISC-IMX6

Module is based on the NXP® Cortex™ A9 CPU offering high performance, lowest power consumption and a high degree of functional integration for high level embedded applica...

By Avnet Embedded Platinum Partner
Embedded Board Solutions
MSC Q7-IMX6PLUS

The design of the MSC Q7-IMX6PLUS module was optimized to provide an especially economic platform for NXP’s i.MX6 and i.MX6Plus CPUs offering quad-core, dual-core and sin...

By Avnet Embedded Platinum Partner
Embedded Board Solutions
armStone™A9r2

Single Board Computer in PicoITX form factor with GB Ethernet, WLAN/BT an MIPI-CSI camera based on NXP i.MX6 (armStoneA9r2)

By F&S Elektronik Systeme GmbH Gold Partner
Embedded Board Solutions
EDM1-IMX6

EDM1-IMX6 based on NXP i.MX6 scalable single/dual/quad core applications processor is targeting multimedia applications with LVDS, TTL, HDMI, S/PDIF, I²S, MIPI Camera and...

By TechNexion Ltd Gold Partner
Embedded Board Solutions
EMB-3500

-NXP Cortex™-A9 i.MX6 CPU - On board 1GB DDR3 Memory，On board 4GB iNAND flash - Supports 13*RS232 ports - Supports HDMI、LVDS、VGA display， - Supports On board WiFi、2*1...

By NORCO Gold Partner
Embedded Board Solutions
SECO Santino Vision 7 PM MX6

7.0 inch Panel Mount HMI based on NXP i.MX6 processor.

By SECO Gold Partner
Embedded Board Solutions
phyCORE-i.MX 6

The phyCORE-i.MX6 SOM is the smallest industrial i.MX 6 design on the market. It is highly scalable supporting NXP i.MX 6Solo, Dual, or Quad processor variants and with c...

By PHYTEC Platinum Partner
Embedded Board Solutions
Ka-Ro TX6S i.MX 6 Solo Computer-on-Module

TX6 Solo include the i.MX 6 Solo Cortex A9 processor at 800 MHz 256-512MB RAM, NAND or eMMC flash and PMIC. Industrial temperature is standard on most modules. All K...

By Ka-Ro electronics GmbH Gold Partner
Embedded Board Solutions
LEC-i.MX6

SMARC ( Smart Mobility Architecture ) computer on module based on ultra-low power i.MX6 family.

By ADLINK Technology, Inc. Gold Partner
Embedded Board Solutions
HummingBoard CBi

HummingBoard CBi merges the powerful HummingBoard platform with the CAN bus and RS-485 connectors – tailor-made for industrial and production floor applications.

By SolidRun Ltd Gold Partner
Embedded Board Solutions
SECO SOM-Trizeps-VII-MX6

SODIMM-200 CPU Computer on Module (CoM) with NXP i.MX6 Applications Processors.

By SECO Gold Partner
Embedded Board Solutions
VAR-SOLOCustomBoard

The VAR-SOLOCustomBoard Single Board Computer (SBC) can serve both as a development platform and as an end product. in conjunction with the VAR-SOM-SOLO/DUAL and the VAR-...

By Variscite Platinum Partner
Embedded Board Solutions
SECO SBC-SANTINO-MX6

Single Board Computer (SBC) based on NXP i.MX6 processor

By SECO Gold Partner
Embedded Board Solutions
i.MX6 customizable embedded design

Latest addition to our product portfolio is NXP i.MX6 based processing platform design. It is customizable and we can adapt it to your needs. It supports networking and m...

By Borea Gold Partner
Embedded Board Solutions
SECO SOM-Q7-MX6

Qseven® Computer on Module (CoM) with NXP i.MX 6 Processor.

By SECO Gold Partner
Embedded Board Solutions
HummingBoard Edge

HummingBoard Edge is the ideal M2M platform, it was developed to meet the B2B market demand for high performance, reliable and innovative device

By SolidRun Ltd Gold Partner
Embedded Board Solutions
SECO Santino Vision 5 RM MX6

5.0 inch Rear Mount HMI based on NXP i.MX6 processor.

By SECO Gold Partner
Embedded Board Solutions
phyBOARD-Mira i.MX 6

Evaluation platform or off-the-shelf industrial grade Single Board Computer (SBC) solution supporting the phyCORE-i.MX 6 SOM.

By PHYTEC Platinum Partner
Embedded Board Solutions
i.MX 6 Series ARM Cortex-A9 System on Module (SOM)

The SOM is an embedded single board module designed to be reliable, rugged, and low cost. The board is designed to be paired with a custom carrier board to fit specific a...

By Firstview Consultants Gold Partner
Embedded Board Solutions
360(AVM) ADAS APA

It provides Surround View Monitor,ADAS and automatic parking solutions.The surround-view ADAS systems offered integrate multiple ADAS functions such as LDW, BSD, and MOD ...

By Tamsong Technology Co.,LTD Gold Partner
Embedded Board Solutions
i.Core MX6S/DL

EDIMM SOM based on NXP i.MX 6Solo or i.MX 6DualLite processor.

By Engicam Gold Partner
Embedded Board Solutions
SECO SOM-uQ7-MX6

μQseven® Computer on Module (CoM) with NXP i.MX 6 Processor.

By SECO Gold Partner
Embedded Board Solutions
ConnectCore 6N

ConnectCore 6 is an i.MX6 SMT multi-chip module. Features include integrated Wi-Fi, Bluetooth, PMIC and Kinetis Microcontroller. 400 pin LGA for reliable connection an...

By Digi International Gold Partner
Embedded Board Solutions
TQMa6x

- Graphic - Extended temperature range - eMMC Flash - Low power consumption (typ. 4 W) - Long-term availability - IEEE 1588 Support - Security functions

By TQ-Systems GmbH Platinum Partner
Embedded Board Solutions
armStone™A9

SBC with Gigabit Ethernet and Dual-Channel LVDS based on NXP i.MX 6 (armStoneA9 - PicoITX)

By F&S Elektronik Systeme GmbH Gold Partner
Embedded Board Solutions
System on Module Carrier Board

The FirstView SOM Carrier Board is a companion board to the FirstView SOM designed to speed up development of hardware and software. The carrier allows the developer to t...

By Firstview Consultants Gold Partner
Embedded Board Solutions
Nitrogen6 MAX SBC

The Nitrogen6_MAX is a turbo-charged version of our popular Nitrogen6X platform. Nitrogen6_MAX is a single board computer that features the same Quad-Core i.MX6 processor...

By Ezurio Gold Partner
Embedded Board Solutions
VAR-SOM-MX6 System on Module

Embedding the i.MX6 QuadPlus/Quad/Dual/DualLite/Single core ARM CA9, the VAR-SOM-MX6 allows designers to use a single System on Module in a broad range of applications to...

By Variscite Platinum Partner
Embedded Board Solutions
VAR-SOM-SOLO/DUAL System on Module

Pin2pin to the VAR-SOM-MX6, the VAR-SOM-SOLO/DUAL from Variscite carries much smaller dimensions and a slim lined price-point. Features include NXP i.MX6 single/dual 1GH...

By Variscite Platinum Partner
Embedded Board Solutions
Colibri iMX6S

SODIMM sized module with peak frequency up to 1GHz and RAM size of 256MB. Key benefits include long-term availability (until 2028), industrial temperature support, and a ...

By Toradex® Platinum Partner
Embedded Board Solutions
SECO SOM-uQ7-MX6-2

μQseven® Computer on Module (CoM) with NXP i.MX 6 Processors.

By SECO Gold Partner
Embedded Board Solutions
efus™A9

Secure Computer On Module with GB Ethernet and MIPI-CSI camera based on NXP i.MX 6 (efusA9)

By F&S Elektronik Systeme GmbH Gold Partner
Embedded Board Solutions
conga-QMX6 Qseven Computer-On-Module

Qseven module with ultra low power NXP ARM® Cortex™ A9 processor, up to 2GB onboard DDR3L memory, up to 16GB onboard eMMC. Commercial and industrial temperature range

By congatec Gold Partner
Embedded Board Solutions
iMX6 DualLite COM Board

The EA i.MX6 DualLite COM Board provides a quick and easy solution for implementing a high-performance ARM dual-core Cortex-A9 based design.

By Embedded Artists AB Gold Partner
Embedded Board Solutions
M636D1

i.MX6 All-in-one, Easy Express Connect EXT module. 71x99mm

By Honmax Technology, Ltd Gold Partner
Embedded Board Solutions
PICO-IMX6

The PICO-IMX6 SoM based on the NXP i.MX6 multimedia processor is a feature and performance scalable hardware platform equipped with a wide array of high-speed connectivit...

By TechNexion Ltd Gold Partner
Embedded Board Solutions
EMB-2500

-NXP Cortex™-A9 i.MX6 CPU -On board 1GB DDR3 Memory，On board 4GB iNAND flash -Supports HDMI、LVDS、VGA display -Supports On board WiFi、1000M LAN、1*RS232 -Supports Andro...

By NORCO Gold Partner
Embedded Board Solutions
LEC-iMX6R2

LEC-iMX6R2 is a re spin of original LEC-iMX6 that complies with new SMARC 2.0 specification that adds a secondary LAN, increases LVDS bandwidth and provides optional DSI ...

By ADLINK Technology, Inc. Gold Partner
Embedded Board Solutions
i.Core MX6 uQseven RQS

uQseven SOM based on i.MX 6 Solo, Dual Lite, Dual, Quad processor

By Engicam Gold Partner
Complementary Silicon or Component
Multichip Packages

Micron's MCP product line offers a variety of devices, configurations, and package options, and we help you select the just-right combination of low power, high reliabili...

By Micron Gold Partner
Module
TEVS-AR0234

2MP Global Shutter AR0234 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
MAYA-W2

Compact Wi-Fi 6 + Bluetooth 5.4 + 802.15.4 host-based multiradio modules, secure tri-radio 1/2 antenna pins, U.FL connectors or embedded antenna MAYA-W260, MAYA-W261, MA...

By u-blox AG Gold Partner
Module
MAYA-W1

Compact Wi-Fi 4 + Bluetooth 5.2 host-based multiradio modules 1 or 2 antenna pins, U.FL connectors, or embedded antenna MAYA-W160-00B, MAYA-W161-00B, MAYA-W166-00B, MAYA-...

By u-blox AG Gold Partner
Module
TEVS-AR0521

5MP rolling shutter AR0521 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
TEVS-AR1335

13MP Rolling Shutter MIPI-CSI2 AR1335 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
TEVS-AR0522

5MP rolling shutter with NIR (Near Infrared) enhancement AR0522 MIPI-CSI2 Camera Sensor and multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
LILY-W1

Wi-Fi module base on NXP Wi-Fi chip 88W8801

By u-blox AG Gold Partner
Module
TEVS-AR0145

1MP Global Shutter AR0145 1 MP Monochrome MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
TEVS-AR0144

1MP Global Shutter AR0144 1 MP MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
TEVS-AR0821

8MP rolling shutter AR0821 MIPI-CSI2 Camera Sensor with multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module
TEVS-AR0822

8MP rolling shutter with NIR (Near Infrared) enhancement AR0822 MIPI-CSI2 Camera Sensor and multiple ISP pre-tuned lens options.

By TechNexion Ltd Gold Partner
Module

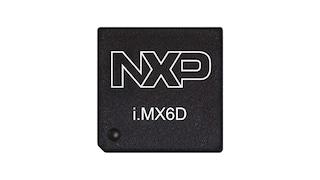

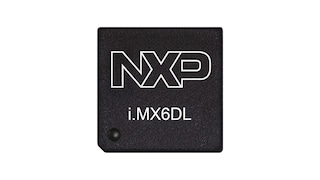

3SM1004 NXP i.MX6 Quad/Dual/DualLite/SoloNEW

3SM1004 is a NXP i.MX6 CPU based. It's a card edge 230 pin form factor. Small dimension (40mmx71mm) is ideal for Automotive and Industrial applications

By Elettronica GF s.r.l. Gold Partner
Module
PIXI-IW416

NXP IW416 Wi-Fi 4 and Bluetooth 5.2 M2. 1216 Module

By TechNexion Ltd Gold Partner
