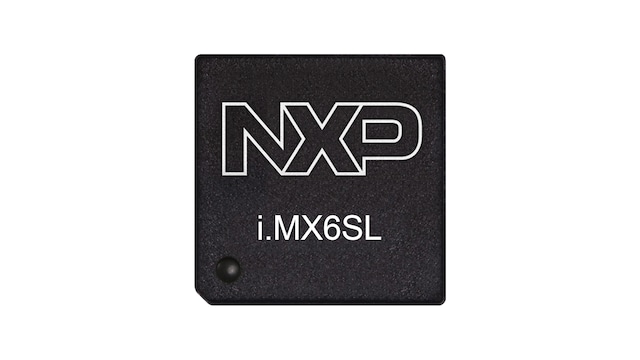

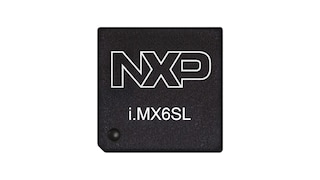

i.MX 6SoloLite Applications Processor | Single Arm® Cortex®-A9 @1 GHz

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click over video to play

The i.MX 6 series of applications processors combines scalable platforms with broad levels of integration and power-efficient processing capabilities particularly suited to multimedia applications. The i.MX 6SoloLite processor features:

Enhanced capabilities of high-tier portable applications by fulfilling MIPS needs of operations systems and games
Multilevel memory system
Smart speed technology that enables the designer to deliver a feature-rich product, requiring levels of power far lower than industry expectations
Dynamic voltage and frequency scaling
Powerful graphics acceleration
Interface flexibility
Integrated power management throughout the device
Advanced hardware-enabled security

The i.MX 6SoloLite is supported by companion NXP power management ICs (PMIC) MMPF0100, MMPF0200, PF3000 and PF3001.

i.MX 6 applications processors are part of NXP's EdgeVerse™ edge computing platform.

Data Sheet

Reference Manual

Product Details

Block Diagram

i.MX 6SoloLite Multimedia Applications Processor Block Diagram

Get diagram PDF

Features

CPU Complex

1x Arm® Cortex®-A9 up to 1 GHz
256 KB L2 cache
32 KB instruction and data caches
NEON SIMD media accelerator

Multimedia

GPU 2D(Vector Graphics)
- Vivante GC355
- 300Mpxl/s, OpenVG 1.1
GPU 2D(Composition)
- 2D BLIT Engine
- Vivante GC320
Video Decode
- SW only
Video Encode
- SW only
Camera Interface
- 16-bit parallel

Memory

DDR
- 16/32 bit LP-DDR2
- 16/32 bit DDR3/LV-DDR3

Connectivity

3x USB 2.0
- 1x HS OTG + PHY
- 1x Host + PHY
- 1x Host USB HSIC
Ethernet
- 10/100 Mbps
Expansion Ports
- 3x SD/MMC 4.4, 1x SDXC
- 4x SPI, 5x UART, 3x I²C

Display

Beyond WXGA (1366x786)

Advanced Power Management

PMU integration
NXP PF100 power management unit

Security

Advanced security supporting:

High Assurance Boot
Cryptographic cipher engines
Random number generator
Tamper detection

Package and Temperature

13 x 13 mm, 0.5 mm BGA
Consumer (0C to +95C), up to 1 GHz
Extended Temperature (-40C to +105C), up to 1 GHz
