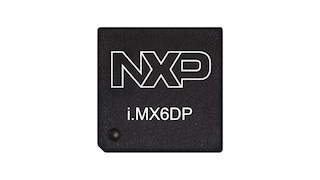

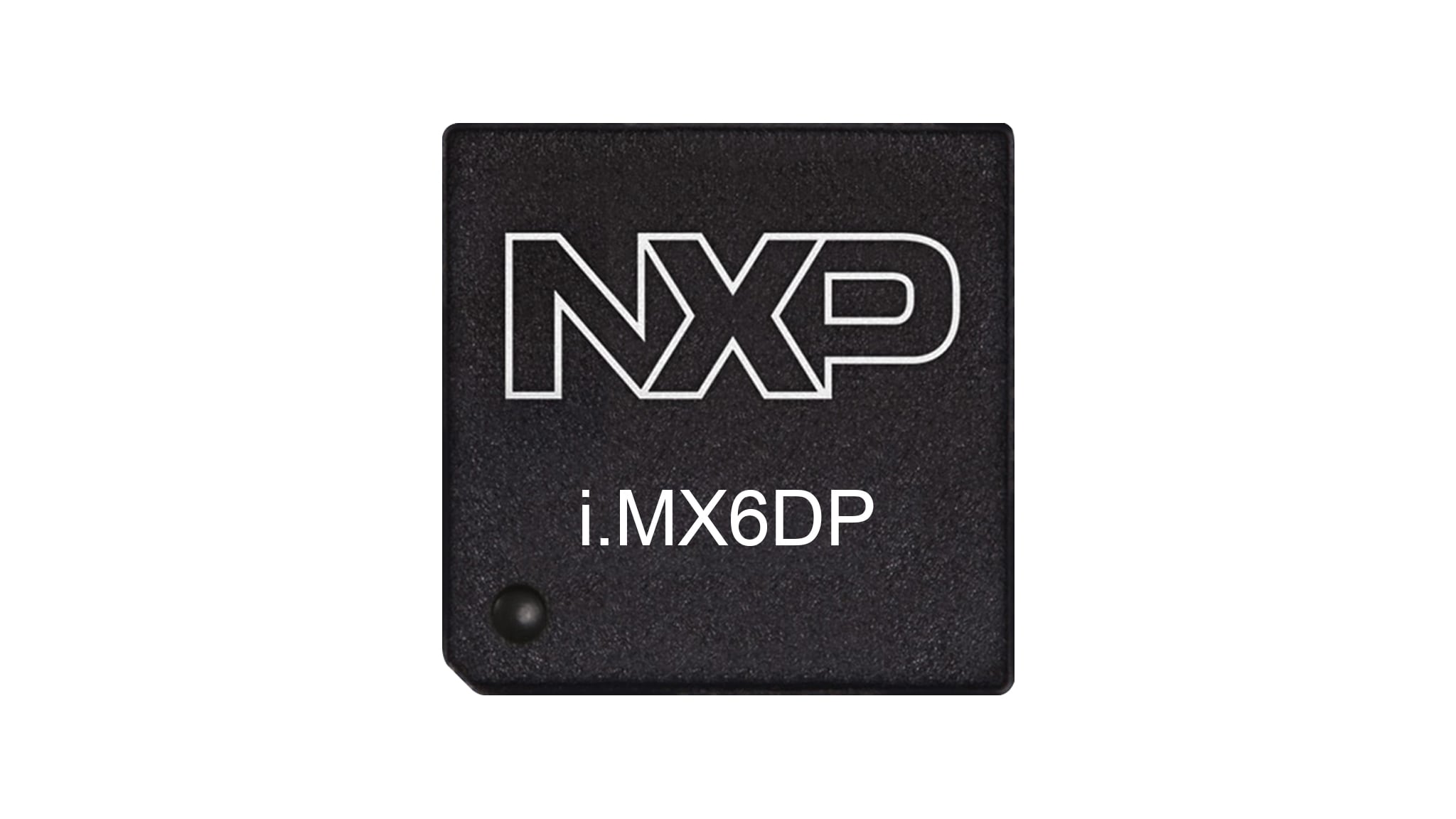

i.MX 6DualPlus Applications Processors | Dual Arm Cortex-A9 for extreme graphics performance| 1.2 GHz

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

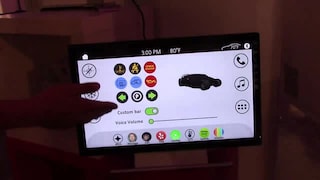

Click over video to play

The i.MX 6DualPlus family delivers dramatic graphics and memory performance enhancements and are pin-compatible with a broad range of i.MX 6 processors. This device encompasses a dual-core Arm^® Cortex^®-A9 platform running up to 1.2 GHz* with 1 MB of L2 cache, advanced graphics, prefetch and resolve engine, and optimized 64-bit DDR3 or 2-ch., 32-bit LPDDR2 support. Integrated FlexCAN, MLB busses, PCI Express^® and SATA-2 provide excellent connectivity, while integration of LVDS, MIPI display port, MIPI camera port and HDMI v1.4 makes it an ideal multicore platform for a leading-edge consumer, automotive and industrial multimedia applications which require higher graphics performance.

Visit www.nxp.com/imx6tools for the latest software and tools.

* 1.0 GHz available now. For 1.2 GHz, contact NXP for availability.

i.MX 6 applications processors are part of NXP's EdgeVerse™ edge computing platform.

Data Sheet

Reference Manual

Product Details

Block Diagram

i.MX 6DualPlus Multimedia Applications Processor Block Diagram

Get diagram PDF

Features

CPU Complex

Embedded prefetch and resolve engine
GPU 3D
- Vivante GC2000
- 200Mtri/s 1000Mpxl/s, OpenGL^® ES 3.0 and Halti, OpenCL^™ 1.1 EP
GPU 2D(Vector Graphics)
- Vivante GC355
- 300Mpxl/s, OpenVG^™ 1.1
GPU 2D(8-layer Composition)
- Vivante GC320
- 600Mpxl/s, BLIT
Video Decode
- HD (1080p + 720p) 30fps
Video Encode
- HD 1080p 30fps
Camera Interface
- Types: 1x 20-bit parallel, MIPI-CSI2 (4 lanes), three simultaneous inputs

Memory

512KB OCRAM
DDR
- Significant increase in 64-bit memory bus performance, and memory interfaces support DDR3, DDR3L and LP-DDR2 at 533 MHz
2x32 LP-DDR2, 1x64 DDR3 / DDR3L

Connectivity

Four USB 2.0
- 1x HS USB 2.0 OTG + PHY
- 1x HS USB 2.0 Host + PHY
- 2x HS USB 2.0 Host (HSIC)
Ethernet
- 1 Gbps + IEEE^®1588
Expansion Ports
- 4x eMMC 4.5 / SD 3.0
- 5x SPI, 5x UART, 3x I²C
- PCIe 2.0 (1 lane)

Display

2x QXGA (2048x1536)
or 2x WXGA (1280 x 720)

Advanced Power Management

PMU integration
NXP^® PF0100F9 power management unit

Package and Temperature

2x Arm^® Cortex^®-A9 up to 1.2 GHz per core
1 MB L2 cache
32 KB instruction and data caches
NEON SIMD media accelerator
