Evaluation Kit - MMPF0200, 12 Channel Power Management

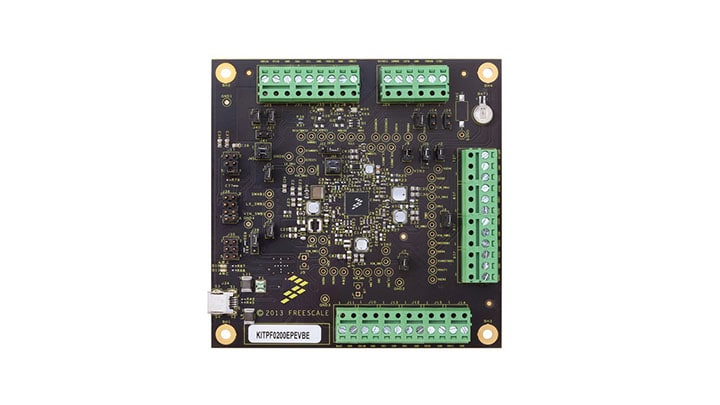

The KITPF0200EPEVBE evaluation board allows full evaluation capability of the MMPF0200 PMIC for the i.MX family of application processors. It provides access to all output voltage rails as well as control and signal pins through terminal block connectors for an easier out-of-the-box evaluation experience. A single terminal block connector for the input power supply allows the user to supply the board with an external DC power supply to fully evaluate the performance of the device.
The KITPF0200EPEVBE comes with a non-programmed version of the MMPF0200 PMIC, and it is configured to power up from the default power-up sequence. However, an integrated control/fuse programming interface is provided to allow the customer to program the OTP/TBB (One Time Programmable/Try-Before-Buy) memory and select it as the default source for the power-up configuration. Likewise, the programming interface allows full control of the MMPF0200 through the I²C communication lines.
Product Details
Supported Devices
Power Management
PMICs
- MMPF0200: 12-Channel Configurable PMIC
Features
Memory
- One DDR memory termination voltage reference
Connectivity
- On board connectors for interfacing with future evaluation/debug tools
- Integrated USB to I²C programming interface for full control/configuration
Power Management
- Input voltage operation range from 3.1 to 4.5 V
- One 5.0 V boost regulator
- Output voltage supplies accessible through detachable terminal blocks
- Three to four independent buck converters
- Six general-purpose LDO regulators
- One VSRTC supply
Size
- Compact form factor (4 x 4 inch2)
User Components
- On/off push-button support
Tools and OS Support
- Fully featured programmer through J36 for external device control/programming
- Onboard OTP programming supply and control
- Hardware configuration flexibility through various jumper headers and resistors
General Specifications
- Coin cell support for “Try-Before-Buy” (TBB) mode
- Onboard PMIC control through the I²C register map
