Multi-Channel PMIC for Automotive Applications
PF5030 silicon and enablement (documentation, software and boards) are available for selected customers (NDA required). For additional information and sample availability contact support or your local sales representative.
The PF5030 is a power management integrated circuit (PMIC) designed for S32Z2/E2 processors, ideally attached to NXP front system supply families (FS86, FS6x, other). Built-in OTP memory stores key startup configurations, high-speed I²C allows parameters adjustment after startup, offering flexibility for different system states.
The PF5030 is part of the BYLink system power platform enabling new smart approach to design safe system power management thanks to innovative synchronization feature. The PF5030 family offers scalability in power and safety, pin to pin and software compatible. It is developed in compliance with the ISO 26262 standard and qualified according to AEC-Q100 requirements.
Product Details
Features
Key Features
- Up to three high-efficiency buck converters - support dual-phase and DVS capability
- Two linear regulators with load switch options
- Watchdog timer/monitor
- Monitoring circuit to fit ASIL B/D safety level
- One-time programmable device configuration
- 1.0 MHz I²C communication interface
- Automotive grade 1
- 40-pin 6 x 6 QFN package
System Features
- OTP (one-time programmable) memory for flexible device configuration
- Frequency spread spectrum
- Fast PMIC startup
- Advanced state machine for seamless processor interface
- Up to fast mode plus I²C interface support (up to 1.0 MHz)
- PGOOD monitor
- Programmable soft start sequence and power down sequence
- Programmable regulator configuration
- 20 channel analog multiplexer for smart system monitoring/diagnostic
Monitoring Circuit to Fit ASIL B/D Safety Level
- Independent circuits to fit ASIL B/D safety level
- Independent voltage monitoring with programmable fault protection
- Advanced thermal monitoring and protection
- External watchdog monitoring and programmable internal watchdog count
- I²C CRC and write protection mechanism
- Analog and logic built-in self-test (ABIST/LBIST)
Programmability
- Supplies, sequencing and specific functions can be programmed by one time programmable (OTP) memory
- Standard predefined OTP supporting popular MCU can be found in data sheet under “ordering information” chapter
- During development phase, customized OTP part can be programmed using the KITPF5030SKTEVM board
- Custom OTP can be provided for production. Please contact your NXP local sales office
Comparison Table
| Device Family | PF5030 QM | PF5030 ASIL B | PF5030 ASIL D | PF5032 QM | PF5032 ASIL B | PF5032 ASIL D |
|---|---|---|---|---|---|---|
| Buck regulator w/ SVS | 2ch | |||||
| Buck regulator w/o SVS | 1ch | - | ||||
| LDO | 2ch | |||||
| AMUX output | Yes | |||||
| Communication I/F | I²C with CRC | |||||
| MCU I/F | PWRON, INTB, RSTB, PGOOD | |||||
| OTP program | Yes | |||||
| OTP CRC check | Yes | |||||
| ABIST/LBIST | Yes | |||||
| 20 MHz CLK check | Yes | |||||
| Fail-Safe state | Yes | |||||
| Target ASIL class for voltage monitoring | ASIL D | |||||
| OV/UV monitoring | Yes | |||||
| Target ASIL class for MCU monitoring | QM | ASIL B | ASIL D | QM | ASIL B | ASIL D |
| Watchdog | No | Simple | Challenger | No | Simple | Challenger |
| Package | 40-QFN w/ WF | |||||
Standard Configurations
| Part Number | Description | OTP ID* | Safety Grade | Package | |
|---|---|---|---|---|---|
| SG1[1] | SG2[2] | ||||
| MPF5030BMMA4ES | S32E2x, S32Z2x 21x21mm | MA4 Report and configuration files | ASIL D | QM | QFN40eP |
| MPF5032BMMA5ES | S32Z2x 17x17mm | MA5 Report and configuration files | ASIL D | QM | QFN40eP |
Product Programs
Product Longevity
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
Related products
S32Z2 Safe and Secure High-Performance Real-Time Processors

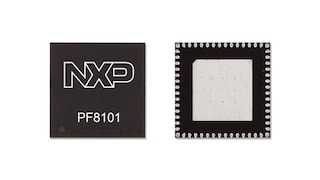

9-Channel Power Management Integrated Circuit (PMIC) for High-Performance Processing Applications
