Multi-Channel (5) PMIC for Automotive Radio Applications – 3 LVBUCK and 1 LDO

PF0300
Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

Roll over image to zoom in

The PF0300 is NXP’s multi-channel PMIC device designed to be used for automotive radio application and industrial application. The PF0300 is also highly configurable making it a great companion and fit for various system level power requirements.

This device is suitable for NXP radio processor based applications.

Block Diagram

Multi-Channel (5) PMIC for Automotive Radio Applications: 3 LVBUCK and 1 LDO

PF0300 Functional Block Diagram
Get diagram PDF

Features

Key Features

  • Three LVBUCK converters up to 3.5 A
  • One LDO up to 500 mA

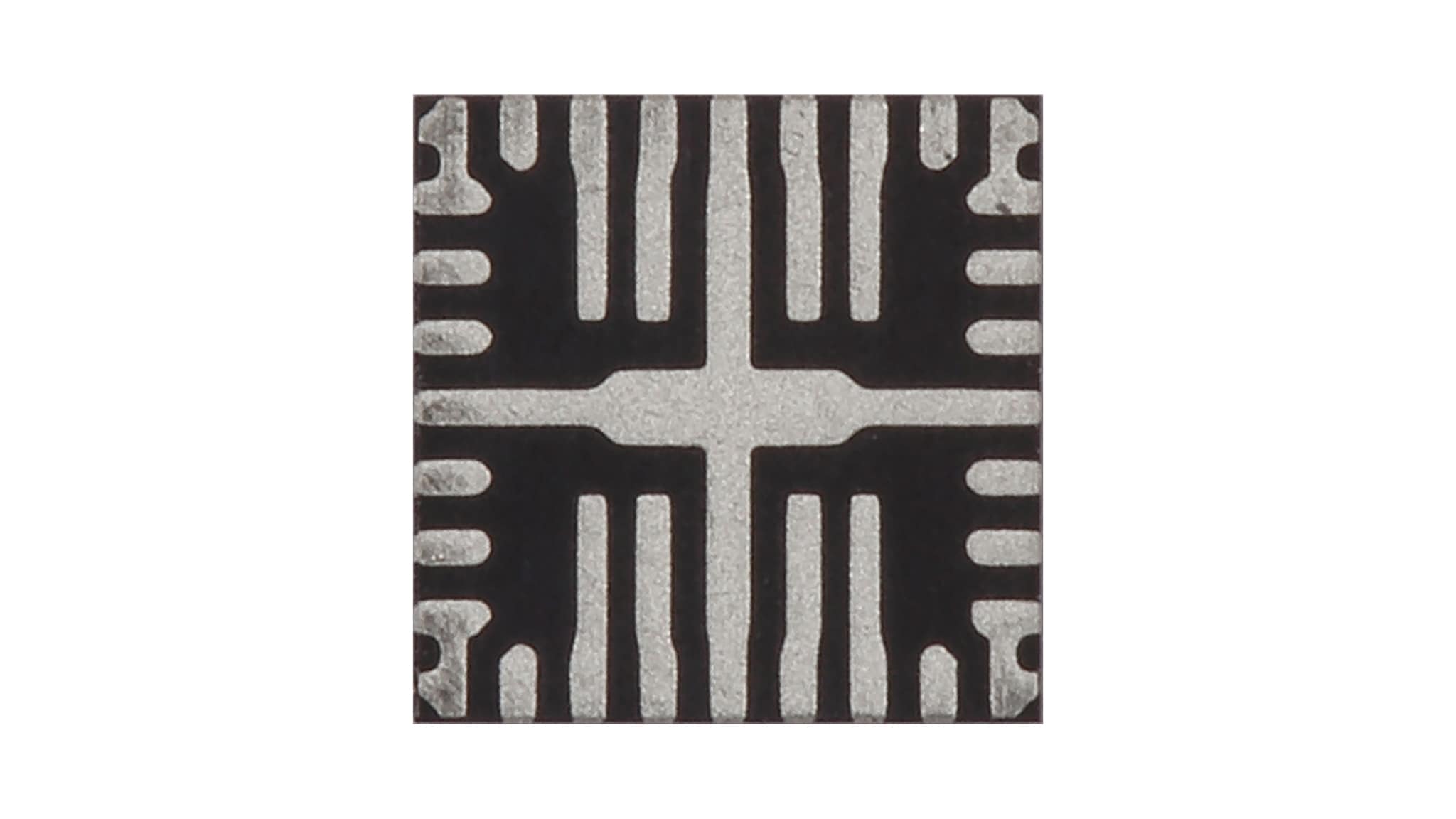

  • 28-pin 4.5 x 4.5 FC-QFN package

System Features

  • One-time programmable (OTP) memory for flexible device configuration
  • High speed I²C interface (3.4 MHz)
  • PGOOD monitoring circuits
  • External clock synchronization
  • Frequency spread spectrum
  • Multi PMIC synchronization bus
  • Watchdog (Simple window)
  • Voltage monitoring with programmable fault protection

Programmability

  • Supplies, sequencing and specific functions can be programmed by one time programmable (OTP) memory
  • During development phase, customized OTP part can be programmed using the evaluation board
  • Custom OTP can be provided for production. Please contact your NXP sales channel (NXP or your distributor)
  • Custom OTP can be created using the GUI tool
