14-Channel Power Management IC Optimized for i.MX 8M
The PF4210 is a high-performance PMIC that is optimized to power low-cost consumer applications with the i.MX 8M family of applications processors. It can provide power for a complete system, including applications processors, memory and system peripherals.
With on-chip, one-time programmable (OTP) memory, it is available in a pre-programmed standard version, or a non-programmed version to support custom programming.
A reference design and associated BSP (Board Support Package) are available demonstrating the robustness of the solution.
Product Details
Block Diagram
Features
Package and Grade

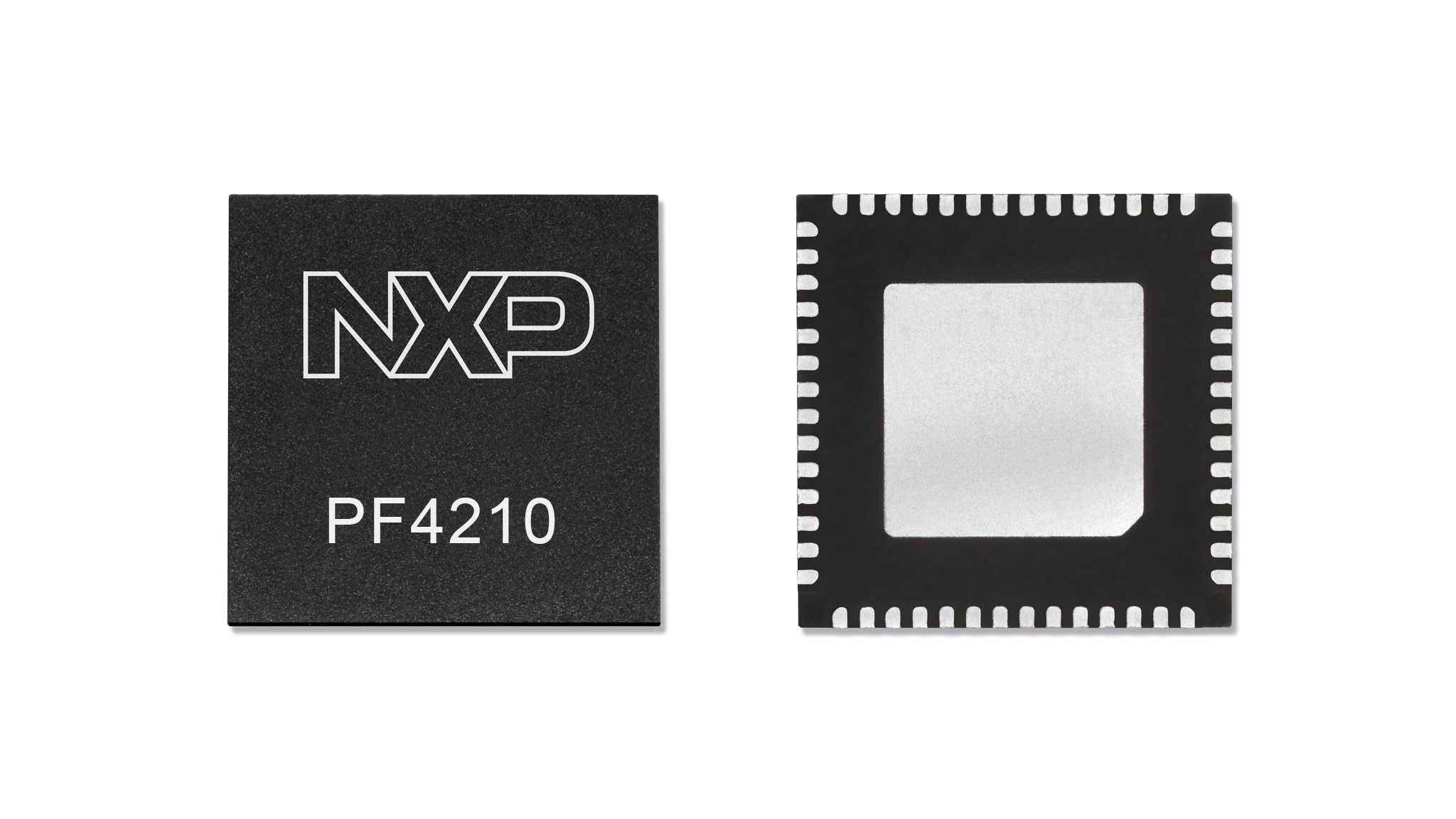

- High-power, space-saving 8x8 mm QFN package
- Consumer and Industrial grade up to 105 °C Ta, 125 °C Tj
Supplies
-
Four to six buck converters, depending on configuration
- Single/dual phase/parallel options
- DDR termination tracking mode option
- Boost regulator to 5.0 V output
- Seven general purpose linear regulators
- Programmable output voltage, sequence and timing
- Coin cell charger and RTC supply
- DDR termination reference voltage
Configurability
- OTP (one-time programmable) memory for device configuration
- Power control logic with processor interface and event detection
- I²C interface and input control
- Individually programmable on, off and standby modes
Key Features
- Output current 4.5 A
- i.MX8 M, i.MX8M Dual, i.MX8M Quad and i.MX8 Quad Lite MCU supported
Product Longevity Program
- This product is included in the NXP product longevity program ensuring a stable supply of products for your embedded designs. This product is included in the 10-year program.
Part numbers include: MC32PF4210A0ES, MC32PF4210A1ES, MC32PF4210A2ES, MC32PF4210A3ES, MC32PF4210A4ES, MC34PF4210A0ES, MC34PF4210A1ES, MC34PF4210A2ES, MC34PF4210A3ES, MC34PF4210A4ES.
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
Design Resources
Hardware
Quick reference to our
board types.
1 hardware offering
-

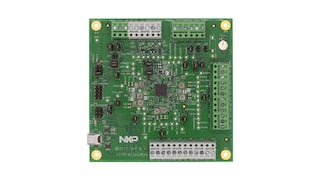

Evaluation and Development BoardsEvaluation Board for PF4210, Power Management IC for i.MX 8M
