MPC5746R Engine Management Evaluation System

MPC5746REVB Active

Roll over image to zoom in

The MPC5746REVB is an evaluation system for engine and transmission management requiring advanced performance, timing systems, and functional safety capabilities.

Based on the 32-bit Power Architecture® MPC5746R ultra-reliable microcontroller, the MPC5775BE-EVB includes a motherboard and three different (MCU package options) daughterboards working together or as standalone.

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC5746R: Automotive and Industrial Engine Management MCU
  • MPC5777C: Ultra-Reliable MPC5777C MCU for Automotive and Industrial Engine Management
  • MPC5777M: Ultra-Reliable MPC5777M MCU for Automotive and Industrial Engine Management

Features

Microcontroller (MCU)

  • 32-bit Power Architecture e200z4 based MPC5746R
  • 32-bit Power Architecture e200z7 based MPC5777C
  • 32-bit Power Architecture e200z7 based MPC5777M

MPC57XXXMB motherboard

  • 2 x CAN, 1 x LIN with Molex Connector, 1 x SCI channel with transceiver and DB-9 Connector
  • 2 x FlexRay channels with jumper enable, transceiver, and DB-9 Connector
  • 1 x Ethernet PHY and RJ45 connector
  • 0.10 pin headers for access to all I/O
  • 2.5" x 2.5" prototyping area with 5 V and GND rails
  • 1 x Potentiometer for analog voltage generation, 4 x user LEDs, 4 x push-button switches
  • 12 VDC power supply input barrel connector, supply included

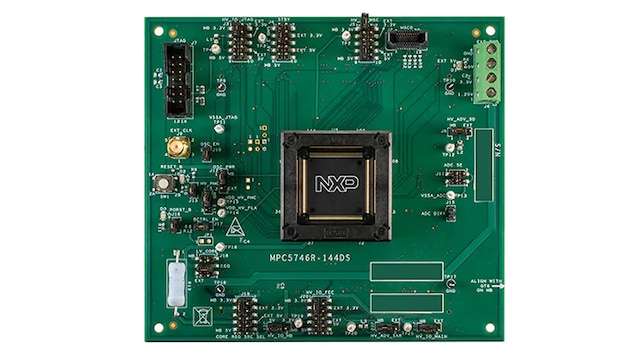

MPC5746R-144DS daughterboard

  • Socketed MPC5746R in a 144 LQFP package
  • Power: interface connectors when using the MPC57XXXMB or via terminal block when using it as standalone
  • Debug via JTAG connector
  • Trace using internal trace memory
  • Clock options: 20 MHz crystal, SMA connector for external clock, or Oscillator

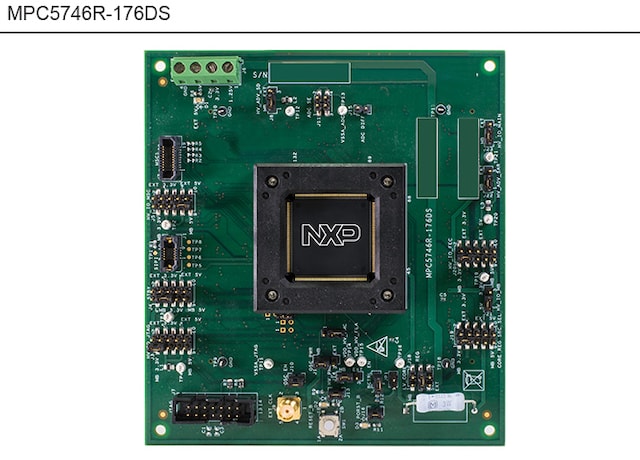

MPC5746R-176DS daughterboard

  • Socketed MPC5746R in a 176 LQFP package
  • Power: interface connectors when using the MPC57XXXMB or via terminal block when using it as standalone
  • Debug via JTAG connector
  • Trace using internal trace memory
  • Clock options: 20 MHz crystal, SMA connector for external clock, or Oscillator

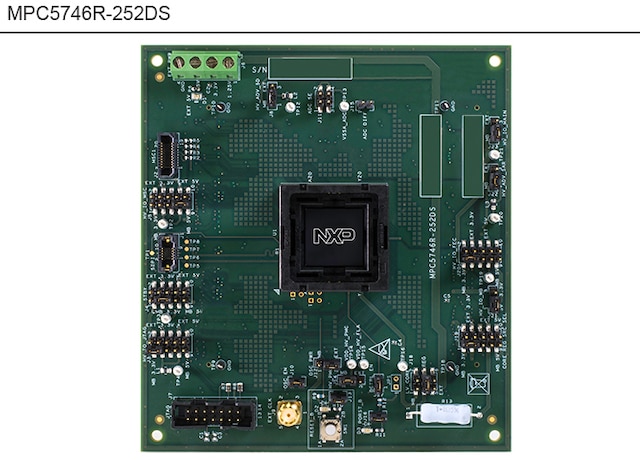

MPC5746R-252DS daughterboard

  • Socketed MPC5746R in a 252 MAPBGA package
  • Power: interface connectors when using the MPC57XXXMB or via terminal block when using it as standalone
  • Debug via JTAG connector
  • Trace using internal trace memory
  • Clock options: 20 MHz crystal, SMA connector for external clock, or Oscillator

More

Buy Options

MPC57XXXMB-Image

Click to expand

  • MPC57XXXMB
    Active

  • MPC57XXX evaluation motherboard.

  • $465.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 8
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors

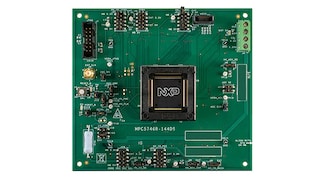

MPC5746R-144DS-Image

Click to expand

  • MPC5746R-144DS
    Active

  • MPC5746R LQFP 144 daughtercard for Engine Management.

  • $369.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
MPC5746R-176DS-Image

Click to expand

  • MPC5746R-176DS
    Active

  • MPC5746R 176 LQFP daughtercard for Engine Management.

  • $399.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors

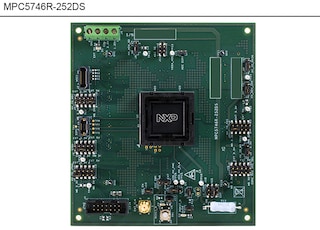

MPC5746R-252DS-Image

Click to expand

  • MPC5746R-252DS
    Active

  • MPC5746R MAPBGA 252 daughtercard for Engine Management.

  • $1049.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
