MPC574xP Functional Safety Motor Control Evaluation System

MPC574xPEVB Active

Roll over image to zoom in

The MPC574xPEVB is an evaluation system for automotive and industrial Functional Safety Motor Control.

Based on the 32-bit Power Architecture® MPC574xP ultra-reliable microcontroller, the MPC574xPEVB includes a motherboard and two different (MCU package options) daughterboards working together or as standalone.

Product Details

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC574xP: Ultra-Reliable MPC574xP MCU for Automotive and Industrial Safety Applications

Features

Microcontroller (MCU)

  • 32-bit Power Architecture e200z4 based MPC574xP

MPC57XXXMB motherboard

  • 2 x CAN, 1 x LIN with Molex Connector, 1 x SCI channel with transceiver and DB-9 Connector
  • 2 x FlexRay channels with jumper enable, transceiver, and DB-9 Connector
  • 1 x Ethernet PHY and RJ45 connector
  • 0.10 pin headers for access to all I/O
  • 2.5" x 2.5" prototyping area with 5 V and GND rails
  • 1 x Potentiometer for analog voltage generation, 4 x user LEDs, 4 x push-button switches
  • 12 VDC power supply input barrel connector, supply included

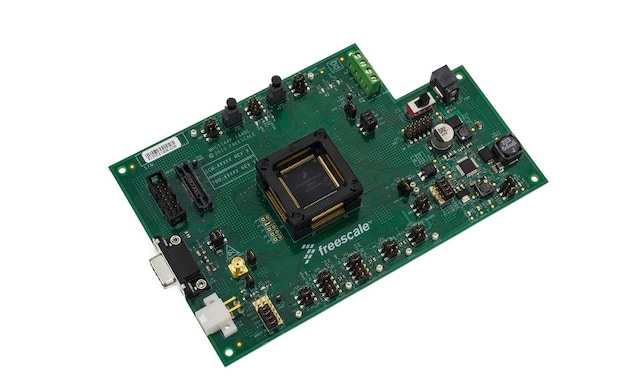

MPC5744P-144DC daughterboard

  • Socketed MPC5744P in a 144 LQFP package
  • Power options
  • Debug and trace: JTAG, Nexus parallel, or Aurora connector
  • I/O Connectivity: SCI, CAN, LIN, SIPI, FlexRay (some dependent on using MPC57XXXMB).
  • Test points and LEDs

MPC5744P-257DC daughterboard

  • Socketed MPC5744P in a 257 BGA package
  • Power options
  • Debug and trace: JTAG, Nexus parallel, or Aurora connector
  • I/O Connectivity: SCI, CAN, LIN, SIPI, Ethernet, FlexRay (some dependent on using MPC57XXXMB).
  • Test points and LEDs

Buy Options

MPC57XXXMB-Image

Click to expand

  • MPC57XXXMB
    Active

  • MPC57XXX evaluation motherboard.

  • $465.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 8
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
MPC5744P-144DS-Image

Click to expand

  • MPC5744P-144DS
    Active

  • MPC5744P 144 LQFP daughtercard for Functional Safety Motor Control.

    • Daughterboard with 144 LQFP socket
    • 1 x MPC5744P sample in 144 LQFP package
  • $509.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors

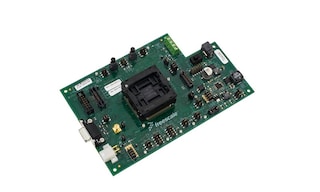

MPC5744P-257DS-Image

Click to expand

  • MPC5744P-257DS
    Active

  • MPC5744P 257 BGA daughtercard for Functional Safety Motor Control.

    • Daughterboard with 257 BGA socket
    • 1 x MPC5744P sample in 257 BGA package
  • $1049.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
