MPC5748G Secure Gateway Evaluation Board

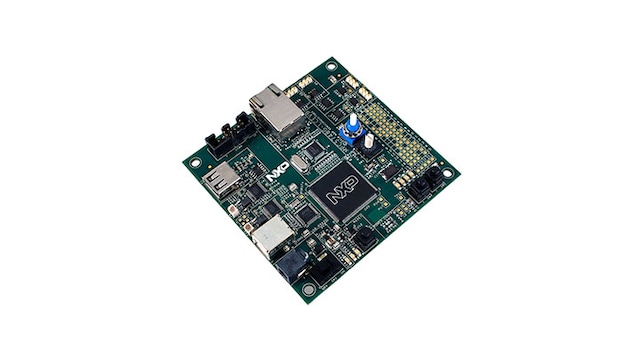

MPC5748G-LCEVB Preproduction

Roll over image to zoom in

The MPC5748G-LCEVB is a low-cost evaluation board for functional safety, security, and secure gateway applications.

Based on the 32-bit Power Architecture® MPC5748G ultra-reliable microcontroller, the MPC5748G-LCEVB offers vast of communication interfaces.

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC574xB-C-G: Ultra-Reliable MPC574xB/C/G MCUs for Automotive and Industrial Control and Gateway

Features

Microcontroller (MCU)

  • 32-bit Power Architecture e200z4 based MPC574xB-C-G

Interfaces

  • USB to Serial Interface
  • Supports Ethernet, USB, FlexRay, CAN, SDHC, and LIN connectors
