MPC5775B and MPC5775E Microcontrollers for Battery Management Systems (BMS) and Inverter Applications

MPC5775B-E Active

Roll over image to zoom in

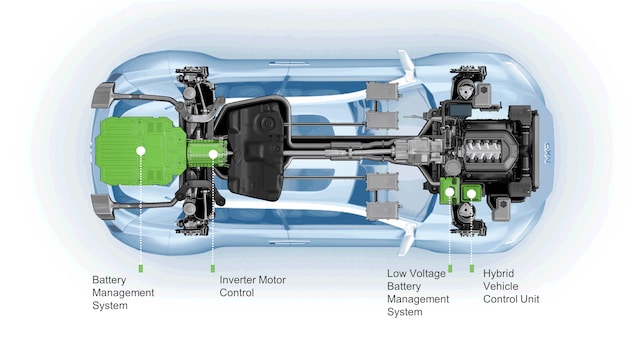

The MPC5775B and MPC5775E microcontrollers target automotive and industrial battery management and inverter applications that require advanced performance, security, and ASIL D support.

These MCUs are compatible with the MPC5777C device and offer customers an optimized feature set for the targeted applications. The MPC5775B and MPC5775E provide an ideal migration path for customers using MPC5xx, MPC55xx, MPC5644A and MPC5674F with eTPU timer and similar pin count options.

Block Diagram

Choose a diagram:

MPC5775B and MPC5775E

MPC5775B Block Diagram

MPC5775E-EVB development board architecture

MPC5775E-EVB development board architecture
Get diagram PDF

Features

General

  • 2 x Power Architecture z7 cores with 264 MHz on MPC5775E and 220 MHz on MPC5775B MCUs
  • 1 x z7 core in lockstep with one of the main cores, with 264 MHz on MPC5775E and 220 MHz on MPC5775B MCU
  • 4 MB Flash, 512 KB SRAM
  • CSE hardware security module that supports SHE protocol specification and AES-128 encryption
  • 10/100Mbps Ethernet module
  • 2 x CAN FD modules and 4 x FlexCAN modules
  • 3 x eTPU2 timer modules on MPC5775E MCU
  • 4 x Sigma Delta modules on MPC5775E MCU
  • Up to 70 ch eQADC and 32 ch eMIOS

Buy/Parametrics

2 results

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Package Type

Package Termination Count

Flash (kB)

RAM (kB)

Core: Number of cores (SPEC)

Operating Frequency [Max] (MHz)

SafeAssure Functional Safety

Total DMA Channels

CAN

I2C

SPI

Ambient Operating Temperature (Min to Max) (℃)

Supply Voltage [max] (V)

Supply Voltage [min] (V)

GPIO

SPC5775BDK3MME2
Data Sheet

Active

BGA416

416

4000

512

3

220

ISO 26262

128

6

0

5

-40 to 125

5.5

4.5

293

SPC5775EDK3MME3
Data Sheet

Active

BGA416

416

4000

512

3

264

ISO 26262

128

6

0

5

-40 to 125

5.5

4.5

293
