3-Phase Inverter Reference Design Using the GD3162 with BOSCH CSL B-Sample SiC B6 Bridge

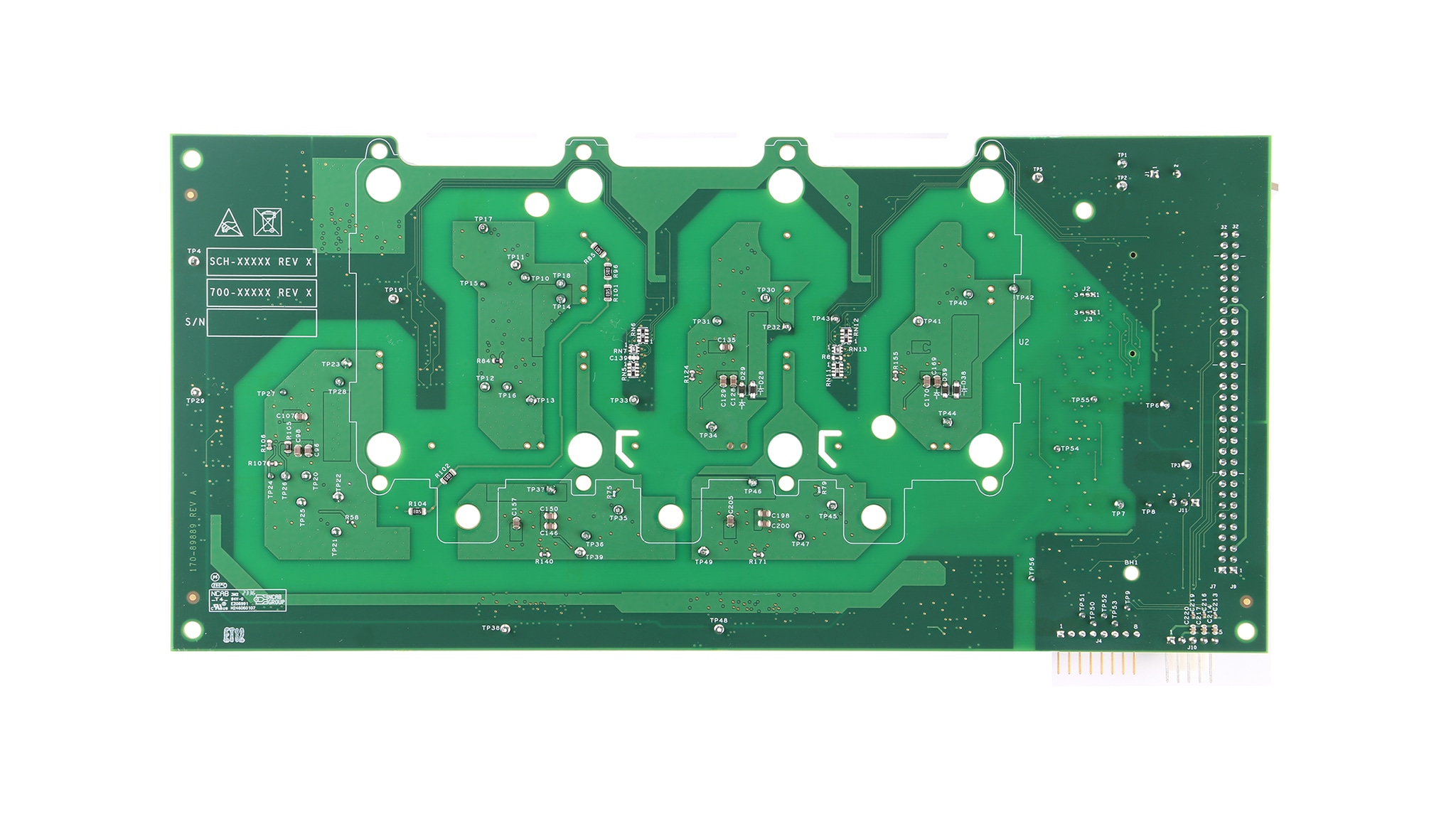

RDGD3162CSL3PEVM

Roll over image to zoom in

RDGD3162CSL3PEVM is a three phase inverter reference design and evaluation board populated with six GD3162 single channel IGBT/SiC MOSFET gate drive devices. The evaluation board is designed to connect to a compatible BOSCH CSL B-sample module  for full three phase inverter applications development and testing. Included with the board is a KITGD316xTREVB MCU/translator for communication and testing using Flex GUI software.

Block Diagram

GD3162

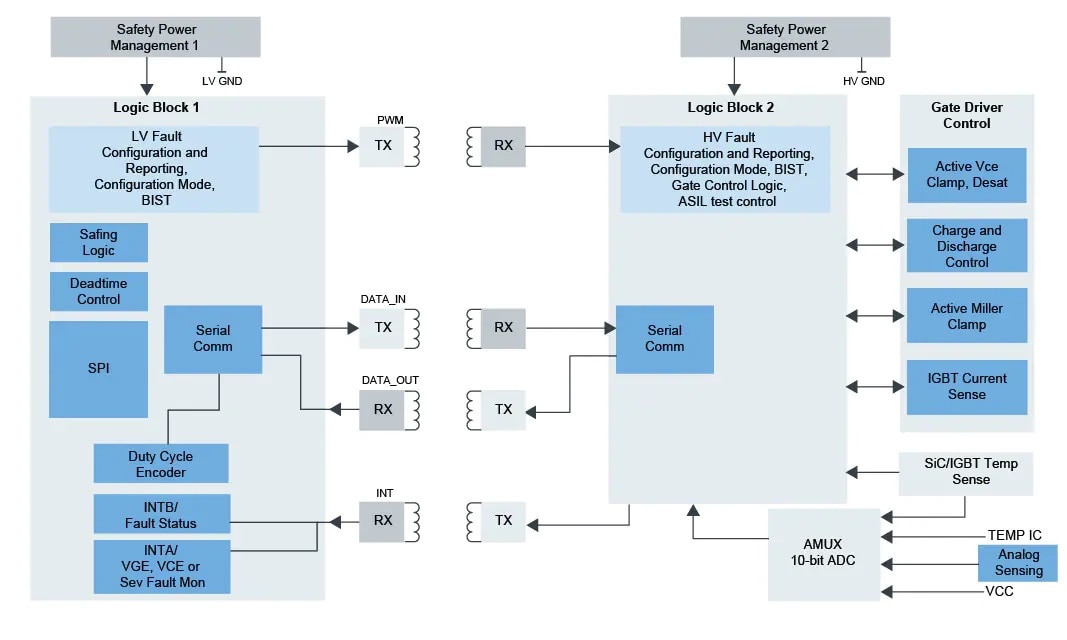

GD3162 Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC5775B-E: MPC5775B and MPC5775E Microcontrollers for Battery Management Systems (BMS) and Inverter Applications

Power Management

Powertrain and Engine Control

  • GD3162: Advanced High Voltage Isolated Gate Driver with Dynamic Gate Strength Control

Features

Size and Price

  • Small form factor

Compatibility

  • See User Guide for module pin compatibility

Key Features

  • GD3162 gate drivers for IGBT/SiC MOSFET
  • Compatible with BOSCH CSL B-sample SiC B6 bridge 750 V and 1200 V variants 3 phase module
  • Daisy Chain SPI interface configurability
  • SPI daisy chain configurable
  • High-side and Low-side pre-drive PWM capability
  • Under Voltage and Overvoltage lock out
  • Liberal scattering of ground and test points (surface mount loops)
  • DESAT and current sense Short Circuit protection
  • High Voltage domain flyback VCC supply adjustable
  • Negative VEE adjusable
  • LED interrupt indicators
  • PCIe MCU interface capable
  • Compatible with KITGD316xTREVB for full 3-phase SPI communication and single phase double pulse and short circuit test

Components

  • GD3162 gate drivers
  • Flyback switcher circuits for isolated power, ground and VEE
  • PCIe MCU interface capable
  • Resolver circuit
  • INTB LEDs

Interfaces

  • DC bus filter
  • Phase current filter
  • PCIe MCU
  • Micro USB KITGD31xTREVB
  • Resolver circuit header

Connectors

Power

  • 12 V external power supply input with onboard isolated VCC flyback supplies

Debugging

  • Double row header for critical signals and KITGD316XTREVB (KL25Z MCU/3.3 V to 5 V translator) connection

Buy Options

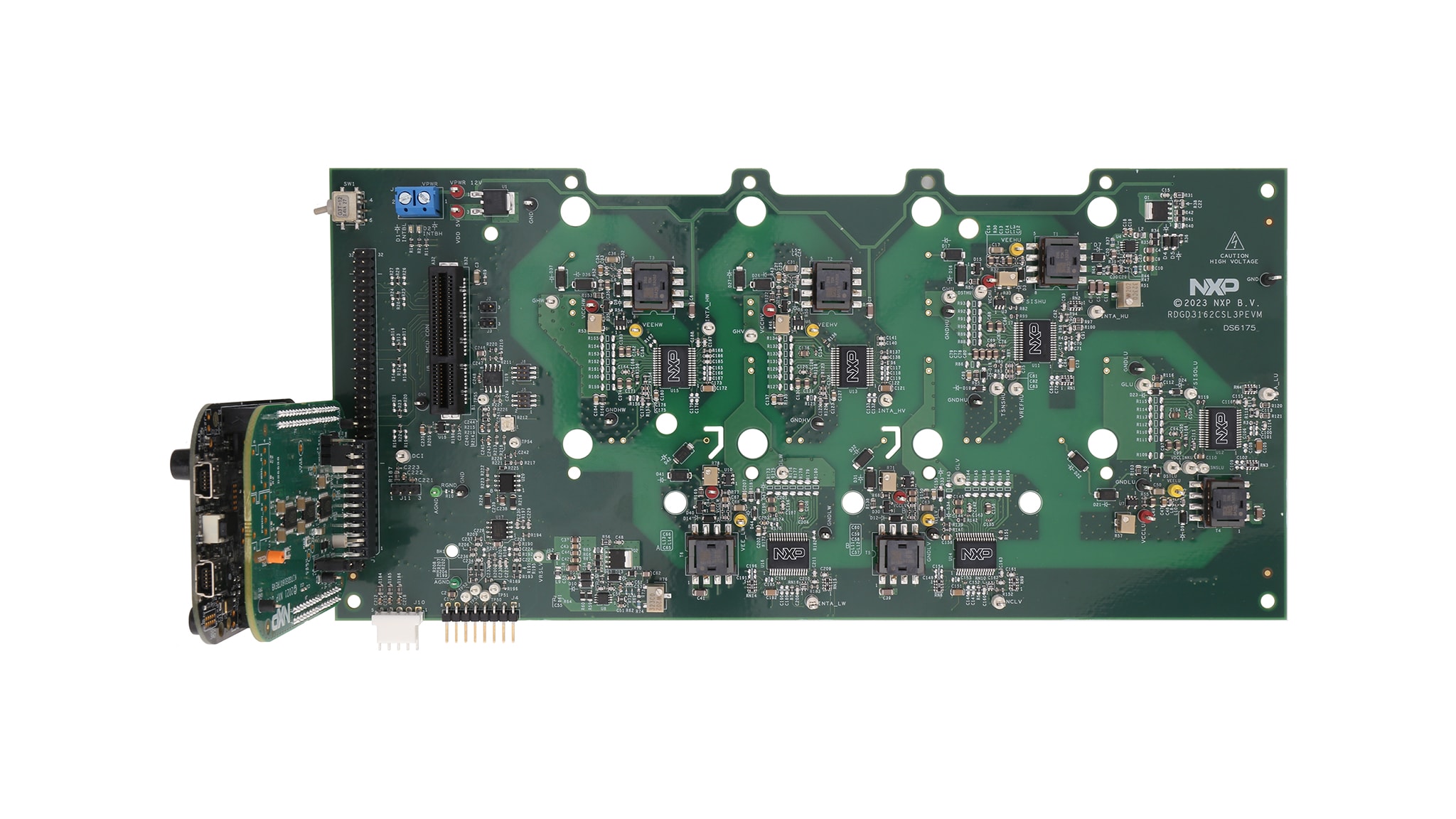

RDGD3162CSL3PEVM-Image

Click to expand

  • RDGD3162CSL3PEVM
    Active

  • 3-Phase Inverter Reference Design Using the GD3162 with BOSCH CSL B-Sample SiC B6 Bridge.

  • Kit contains:

    • Three phase reference design evaluation kit featuring GD3162 gate drive devices for IGBT or SiC MOSFET
    • KITGD316xTREVB (KL25Z MCU and translator board with USB cable) included

  • $608.51 USD
  • For a quantity of 1
    • Availability: Pending Stock
