MPC5775B BMS and VCU Reference Design

RDVCU5775EVM

Roll over image to zoom in

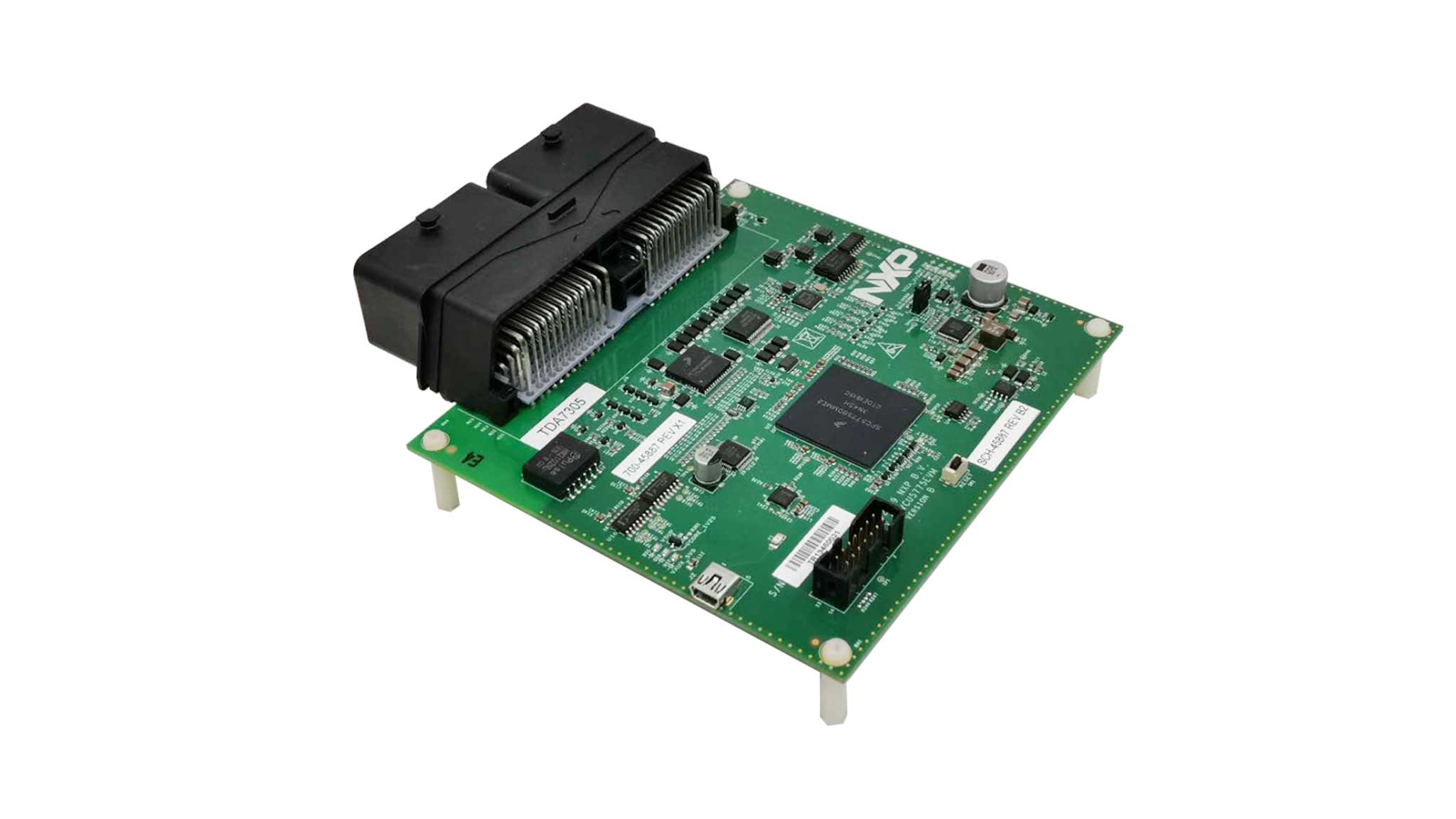

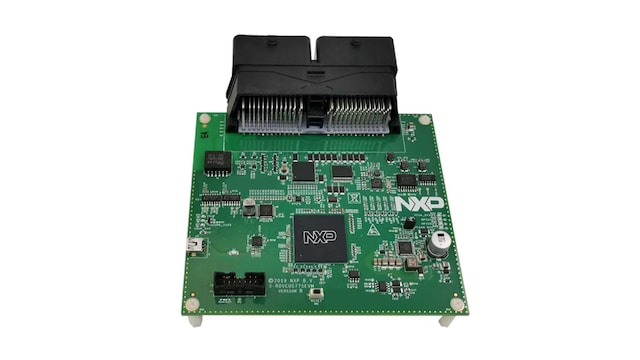

The RDVCU5775EVM is an out-of-the-box, proven-concept and cost-effective reference design engineered to integrate battery management system (BMS) and vehicle control unit (VCU) high-voltage functionalities, plus direct powertrain system to domain controller up to ISO 26262 ASIL D automotive applications.

Based on the 32-bit Power Architecture® MPC5775B MCU, the FS6523 functional safety power SBC, and the MC33664 high-speed transform physical layer (TPL) network, the RDVCU5775EVM supports the MC3377x battery cell controller EVB daisy chain and the CD1030 33-channel multiple switch detection interface (MSDI) with programmable current.

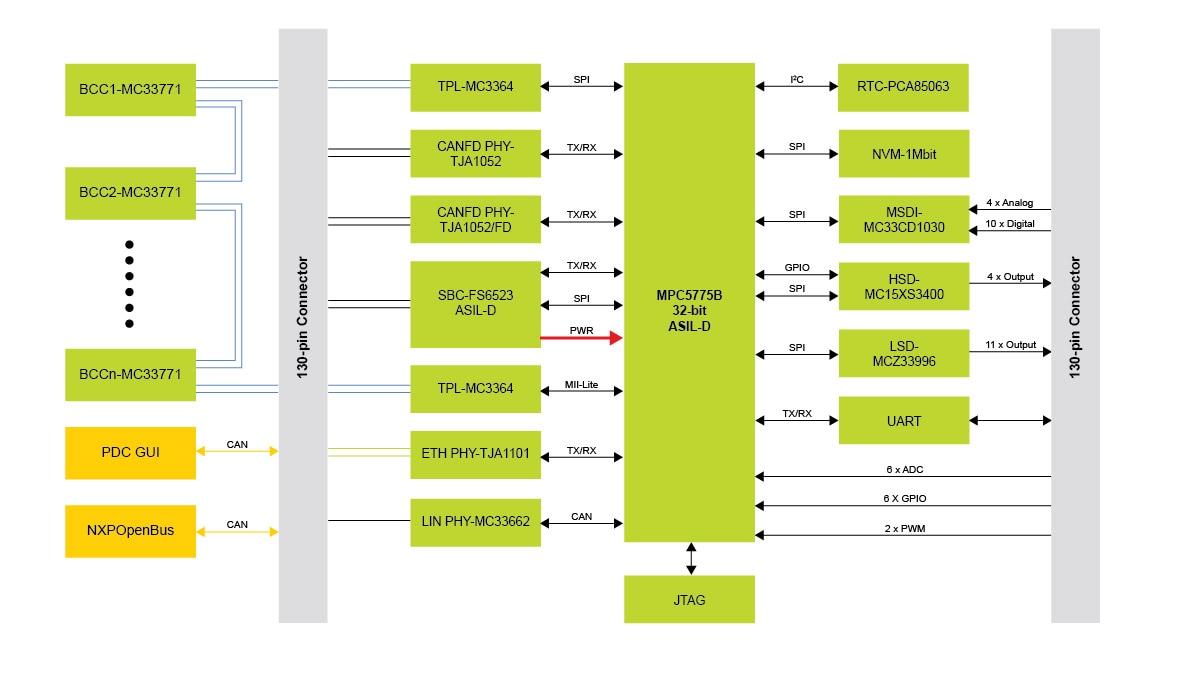

Block Diagram

MPC5775B BMS and VCU reference design - Block Diagram

MPC5775B BMS and VCU reference design - Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC5775B-E: MPC5775B and MPC5775E Microcontrollers for Battery Management Systems (BMS) and Inverter Applications

Power Management

System Basis Chips

  • FS6500: Grade 1 and Grade 0 Safety Power System Basis Chip with CAN Flexible Data Transceiver

Battery Cell Controllers

  • MC33771C: 14-Channel Li-Ion Battery Cell Controller IC

Battery Communication ICs

  • MC33664: Isolated Network High-Speed Transceiver

Interfaces

Multi-Switch Detection Interface

  • CD1030: 33-Channel Multiple Switch Detection Interface with Programmable Current

Automotive Ethernet PHYs

  • TJA1101: TJA1101B, IEEE 100BASE-T1 Compliant Automotive Ethernet PHY Transceiver

3.3 V / 5 V IO CAN Transceivers

  • TJA1145: High-Speed CAN Transceiver for Partial Networking

CAN with Flexible Data Rate

  • TJA1052IT: Galvanically-Isolated High-Speed CAN Transceiver

Automotive LIN Solutions

  • MC33662: LIN 2.1 / SAEJ2602-2, LIN Physical Layer

Analog and Mixed Signal

Real-Time Clocks

  • PCA85063A: Automotive Tiny Real-Time Clock/Calendar with Alarm Function and I²C-bus

More

Features

RDVCU5775EVM

  • Combines BMS and VCU functionalities in one ECU
  • Supports dual TPL communication with daisy-chain of BCC device
  • Supports multiple input/output interfaces: MSDI, ADC, GPIO, LSD and HSD
  • Supports multiple communication interfaces: ETH, CAN(FD), LIN and UART
  • Offers two demo app projects for S32SDK and AUTOSAR MCAL
  • Offers GUI tool to easy monitor system over CAN
  • Offers bootloader based on UDS on CAN protocol
  • MPC5775B microcontroller (416 MAPBGA soldered)
  • MC33FS6523CAE system basis chip (SBC) for the board power supply and one CAN physical layer
  • MC33664 isolation transceiver support daisy chain of BCC device MC33771 communication
  • 1 x 100BASE-T1 Automotive Ethernet interface TJA1101
  • 3 x CAN interfaces: two supported via TJA1052 and TJA1145 CAN FD transceivers, another via SBC.
  • 1 x LIN interface MC33662BLEF
  • PCA85063A automotive tiny Real-Time Clock/calendar with alarm function and I²C-bus
  • 1 Mbit automotive external EEPROM with SPI interface
  • Standard 14-pin JTAG debug connector
  • Requires 12 V external DC power supply
  • Main power regulator status LEDs + 2 x user LEDs is connected to GPIO for test

Buy Options

RDVCU5775EVM-Image

Click to expand

  • RDVCU5775EVM
    Active

  • MPC5775B BMS and VCU Reference Design.

  • $420.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
