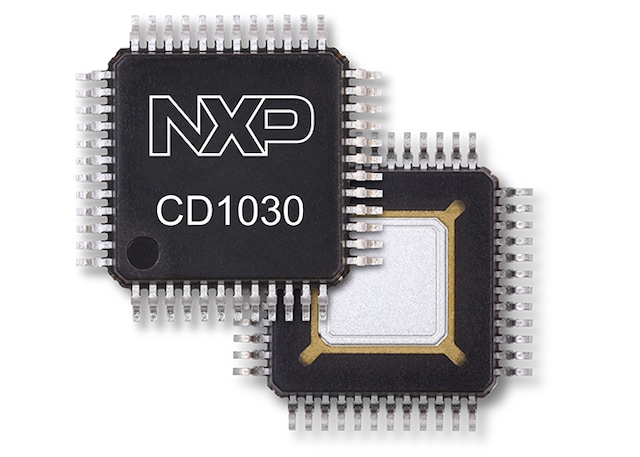

33-Channel Multiple Switch Detection Interface with Programmable Current

CD1030
Active

Roll over image to zoom in

The CD1030 is a multiple switch detection interface (MSDI) designed to detect the closing and opening of up to 33 switch contacts. The switch status, either open or closed, is transferred to the microprocessor through a SPI in automotive environments.

  • This SMARTMOS® device features a 35-to-1 analog multiplexer for reading analog inputs.
  • The analog input signal is buffered and provided on the analog multiplexer (AMUX) output pin for the MCU to read
  • Individually selectable input currents are available in Normal and Low-Power Mode
  • Battery and temperature monitor are included in the IC and available via the AMUX pin
  • Interfaces with any MCU that supports SPI communications

Block Diagram

CD1030 Block Diagram

CD1030 Functional Internal Block Diagram
Get diagram PDF

Features

Key Features

  • Fully functional operation 4.5V ≤ VBATP ≤ 36V
  • Full parametric operation 6.0V ≤ VBATP ≤ 28V
  • Operating switch input voltage range from -1.0V to 36V
  • 12 programmable inputs (switches to battery or ground)
  • 21 switch-to-ground inputs
  • Selectable wetting current (2.0, 6.0, 8.0, 10, 12, 14, 16, or 20mA)
  • Interfaces directly to an MCU using 3.3V/5.0V SPI protocol
  • Selectable wake-up on change of state
  • Typical standby current IBATP = 50uA and IDDQ = 10uA
  • Active interrupt (INT_B) on switch state change
  • Integrated battery and temperature sensing
  • Switch monitoring device function
  • Package termination count: 48
  • Package type HLQFP48
  • Ambient operating temperature -40 to 125 °C

Buy/Parametrics

1 result

Include 0 NRND

Part

Show description

Order

CAD Model

Device Function

Package Termination Count

Load Supply Voltage (Min) (V)

Load Supply Voltage (Max) (V)

Interface and Input Control

Ambient Operating Temperature (Min to Max) (℃)

MC33CD1030AE
Data Sheet

switch monitoring

48

4.5

36

SPI

-40 to 125
