S32K344-WB Evaluation Board for Automotive General Purpose

S32K344-WB Active

Roll over image to zoom in

The S32K344-WB is an evaluation board for general-purpose automotive and industrial applications.

Based on the 32-bit Arm®, Cortex®-M7 S32K344 offers dual cores configured in lockstep mode in a BGA 257 package. S32K344-WB supports a wide range of ASIL D safety hardware and peripherals, including the FS26 safety system basis chip, SJA1105 Ethernet switch and 100BASE-T1 for AVB demo and message routing. The NCK2910 RF receiver and NJJ29C2 LF driver are intended to use for the development of passive entry passive start (PEPS) keyless applications.

Due to its high component integration, a number of CAN and LIN interfaces, power switches and audio interface, the S32K344-WB is an excellent choice for the development of zonal aggregator and domain control type of applications.

Block Diagram

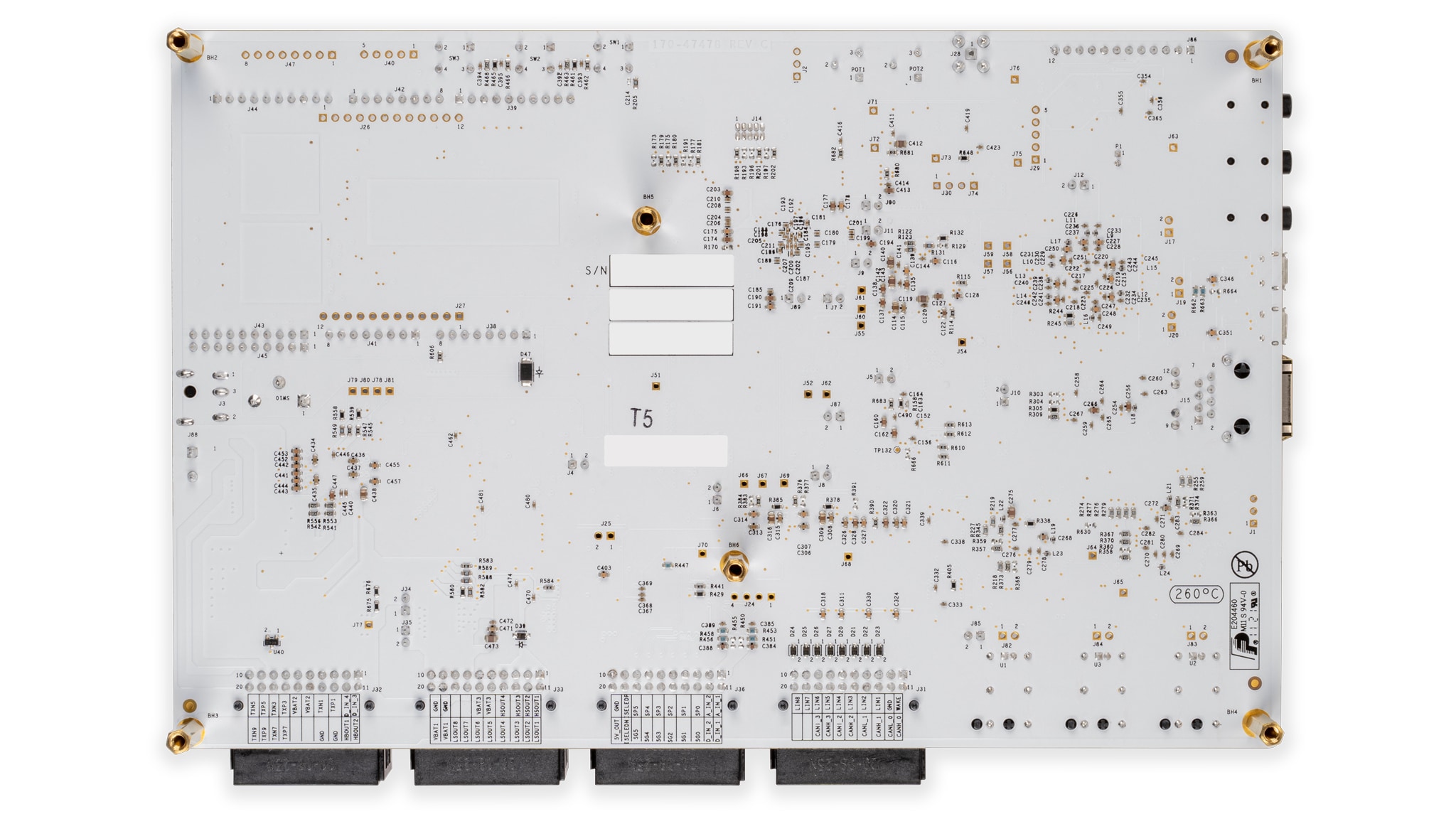

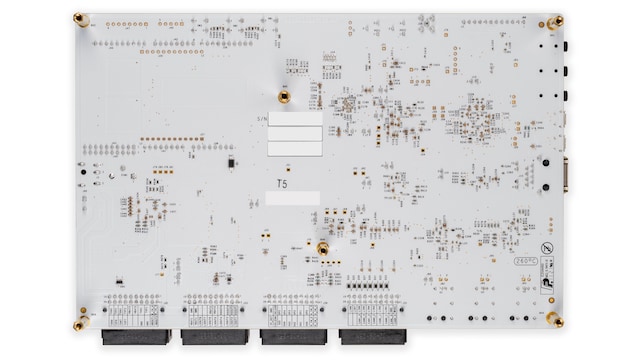

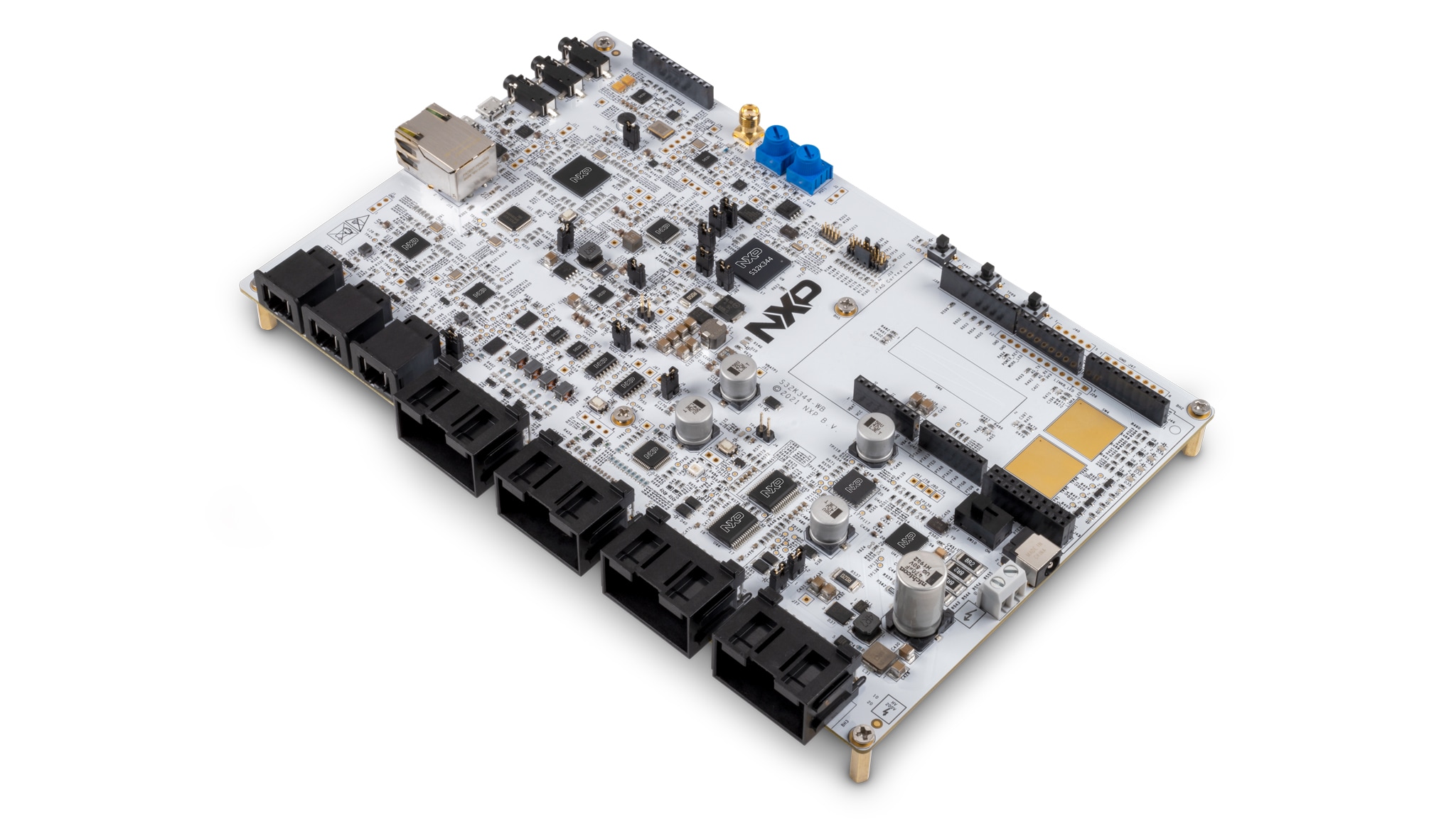

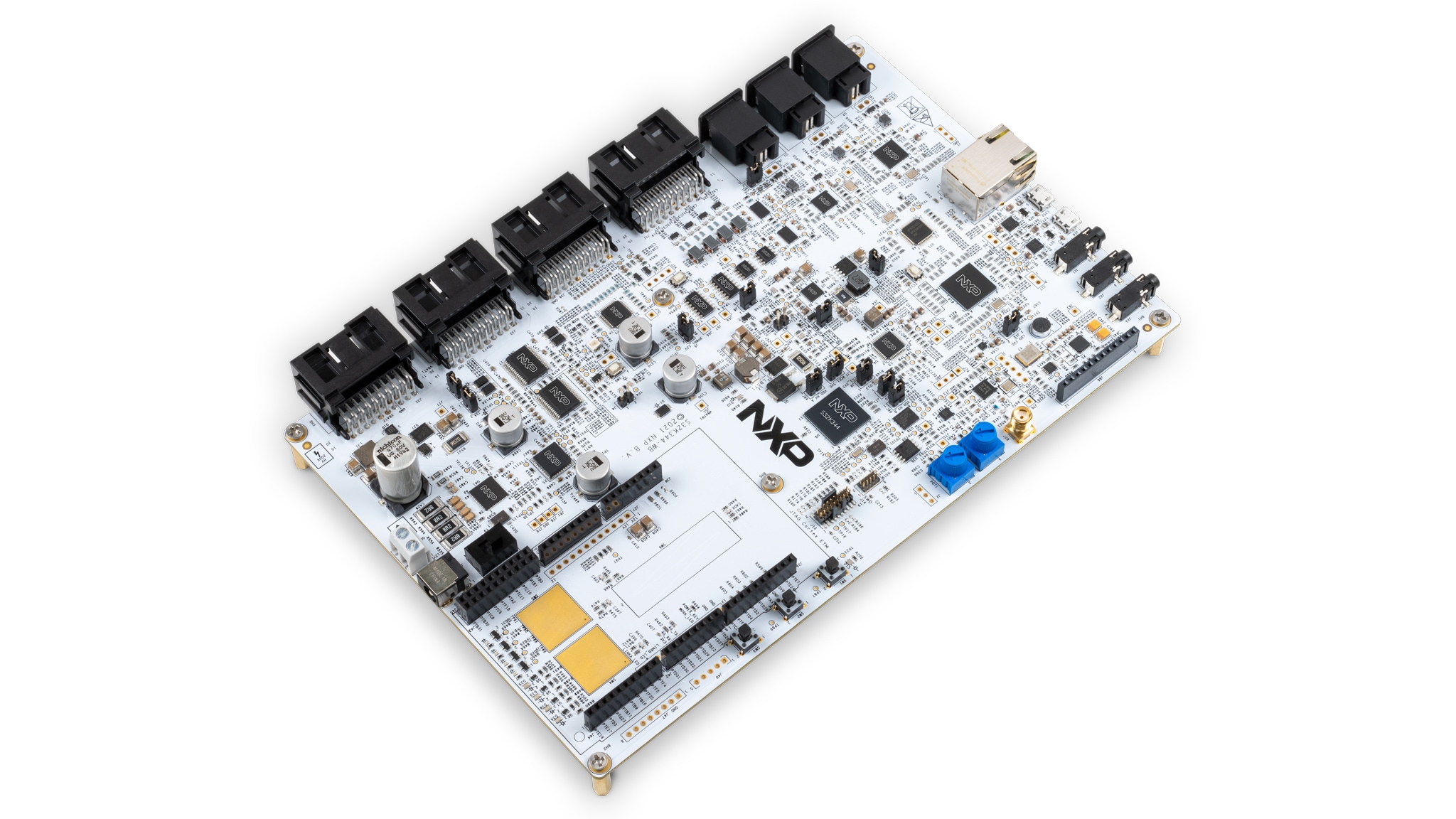

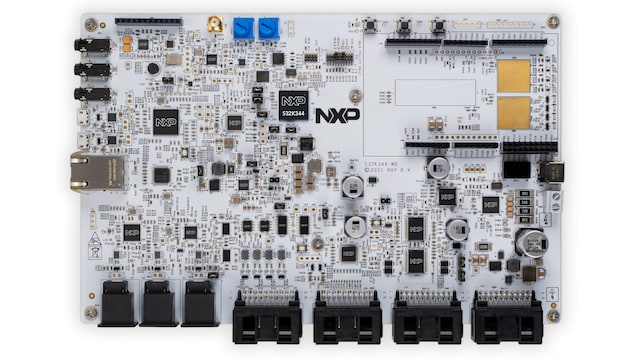

S32K344-WB Evaluation Board

S32K344-WB Evaluation Board
Get diagram PDF

Supported Devices

Power Management

BLDC, H-Bridge, Stepper

  • HB2001: SPI Programmable 10 A H-Bridge Brushed DC Motor Driver

High Side Switches

  • MC12XS6: External Automotive Lighting Multi-Channel eXtreme Switch

Configurable Switches

  • MC33879: Configurable Octal Serial Switch

System Basis Chips

  • FS26: Safety System Basis Chip with Low Power, for ASIL D Systems
  • FS5600: Automotive Dual Buck Regulator and Controller with Voltage Monitors and Watchdog Timer

Interfaces

Automotive LIN Solutions

  • TJA1124: Quad LIN Commander Transceiver for In-Vehicle Subnetworks
  • SJA1124: Quad LIN Commander Transceiver with LIN Commander Controller

Automotive Ethernet Switches and Network Controllers

  • SJA1105PQRS: SJA1105PEL/QEL/REL/SEL Series Ethernet Switches

Automotive Ethernet PHYs

  • TJA1101: TJA1101B, IEEE 100BASE-T1 Compliant Automotive Ethernet PHY Transceiver
  • TJA1102A: TJA1102A/TJA1102AS, Dual/Single Port Automotive Ethernet 100BASE-T1 PHY Transceiver

Signal Conditioners

  • CD1030: 33-Channel Multiple Switch Detection Interface with Programmable Current

3.3 V / 5 V IO CAN Transceivers

  • TJA1145: High-Speed CAN Transceiver for Partial Networking

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K3: S32K3 Microcontrollers for Automotive General Purpose

Audio

Audio Converters

Sensors

Accelerometers

  • MMA8452Q: ±2g/±4g/±8g, Low g, 12-Bit Digital Accelerometer

Security and Authentication

Secure Car Access

  • NJJ29C0BHN: Low-Frequency Driver and Receiver IC for Passive Keyless Entry Applications

Features

Hardware Features

  • Power supply switch
  • 2x user push-buttons
  • 2x ADC rotary potentiometer
  • 2x touchpad electrode + 1x slider
  • 10-pin and 20-pin JTAG connector for S32K3 debug interface

Software Features

Compatibility

  • Arduino® pin-out compatible with expansion “shield” support

Interfaces

  • 4x CAN interfaces
  • 8x LIN interfaces
  • Single 10/100BASE-TX PHY transceiver with RJ45 connector
  • 3x 100BaseT1 Automotive Ethernet PHY
  • 12x switch detection interface
  • 4x high side driver
  • 8x low side driver
  • 2x H-bridge driver
  • 2x micro-USB UART port
  • 3x audio jack

Buy Options

S32K344-WB-Image

Click to expand

  • S32K344-WB
    Active

  • S32K344-WB Evaluation Board for Automotive General Purpose.

  • Kit Contains

    • S32K344-WB evaluation board
    • ECU cables x2
    • MicroUSB cable
  • $699.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 6
    • Shipping: Normally ships 1-2 business days
