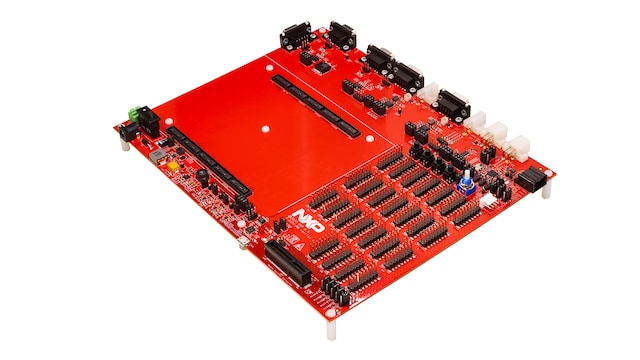

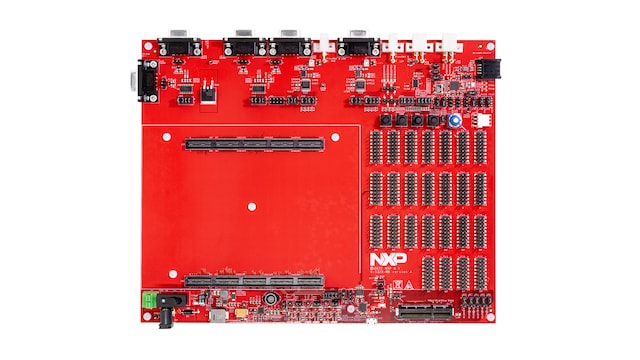

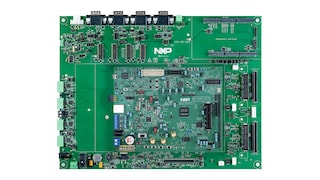

S32X-MB I/O Extension Evaluation Board for Real-Time Domain Control and Actuation

S32X-MB

Roll over image to zoom in

S32X-MB is an I/O extension board compatible with the evaluation boards for the S32K39/37 microcontrollers and the S32Z and S32E real-time processors. The S32K39/37 microcontrollers target electrification applications while S32Z and S32E safe and secure high-performance real-time processors.

S32X-MB provides additional functionality and access to I/O and peripherals. Some of these additional peripherals include CAN FD, Ethernet, FlexRay, LIN and motor control. The S32X-MB is utilized when development requires more peripherals and access to I/O than are available on the S32K39/37 or S32Z/E evaluation boards.

The S32X-MB is not a standalone development board. It must be used with the S32K39/37 or S32Z/E evaluation boards.

Block Diagram

S32X-MB Features

S32X-MB Features
Get diagram PDF

Supported Devices

Interfaces

Automotive LIN Solutions

  • TJA1124: Quad LIN Commander Transceiver for In-Vehicle Subnetworks

CAN with Flexible Data Rate

  • TJA144x: Automotive CAN FD Transceiver Family

FlexRay Transceivers

  • TJA1081B: FlexRay™ Node Transceiver - Clamp 30

Automotive Ethernet PHYs

  • TJA1103: TJA1103, ASIL B Compliant Automotive Ethernet 100BASE-T1 PHY Transceiver

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K39-37-36: S32K39/37/36 Microcontrollers for Electrification Applications

S32Z and S32E Real-Time Processors

  • S32E2: S32E2 Safe and Secure High-Performance Real-Time Processors with Actuation Support
  • S32Z2: S32Z2 Safe and Secure High-Performance Real-Time Processors

Features

Interfaces

  • Interface to S32K39/37 or S32Z/E evaluation board
  • 4x CAN FD
  • 1x 100 Mbps Automotive Ethernet (100BASE-T1)
  • 1x FlexRay
  • 2x LIN
  • 1x PSI5
  • 1x USB/UART
  • 1x motor control
  • 4x user LED
  • 4x user push buttons
  • 1x potentiometer
  • General access connectors for access to GPIO pins that are not dedicated to other purposes on the processor board

Motor Control

  • Control up to 1x 3-phase PMSM or 1x BLDC motor or general 3-phase machine
  • Extends S32K396-BGA-DC1 for 2nd motor control or 1x 6-phase motor

Power

  • +12 V power connector

Buy Options

S32X-MB-Image

Click to expand

  • S32X-MB
    Active

  • S32X-MB I/O Extension Evaluation Board for Real-Time Domain Control and Actuation.

  • Kit Contains:

    • S32X-MB I/O Extension Evaluation Board
  • $700.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
