S32K31XEVB-Q100 Evaluation Board for Automotive General Purpose

S32K31XEVB-Q100
Active

Roll over image to zoom in

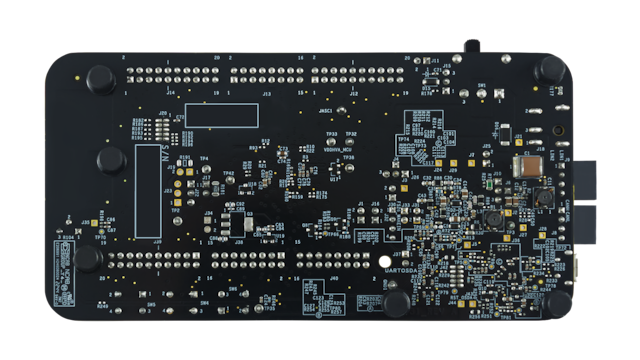

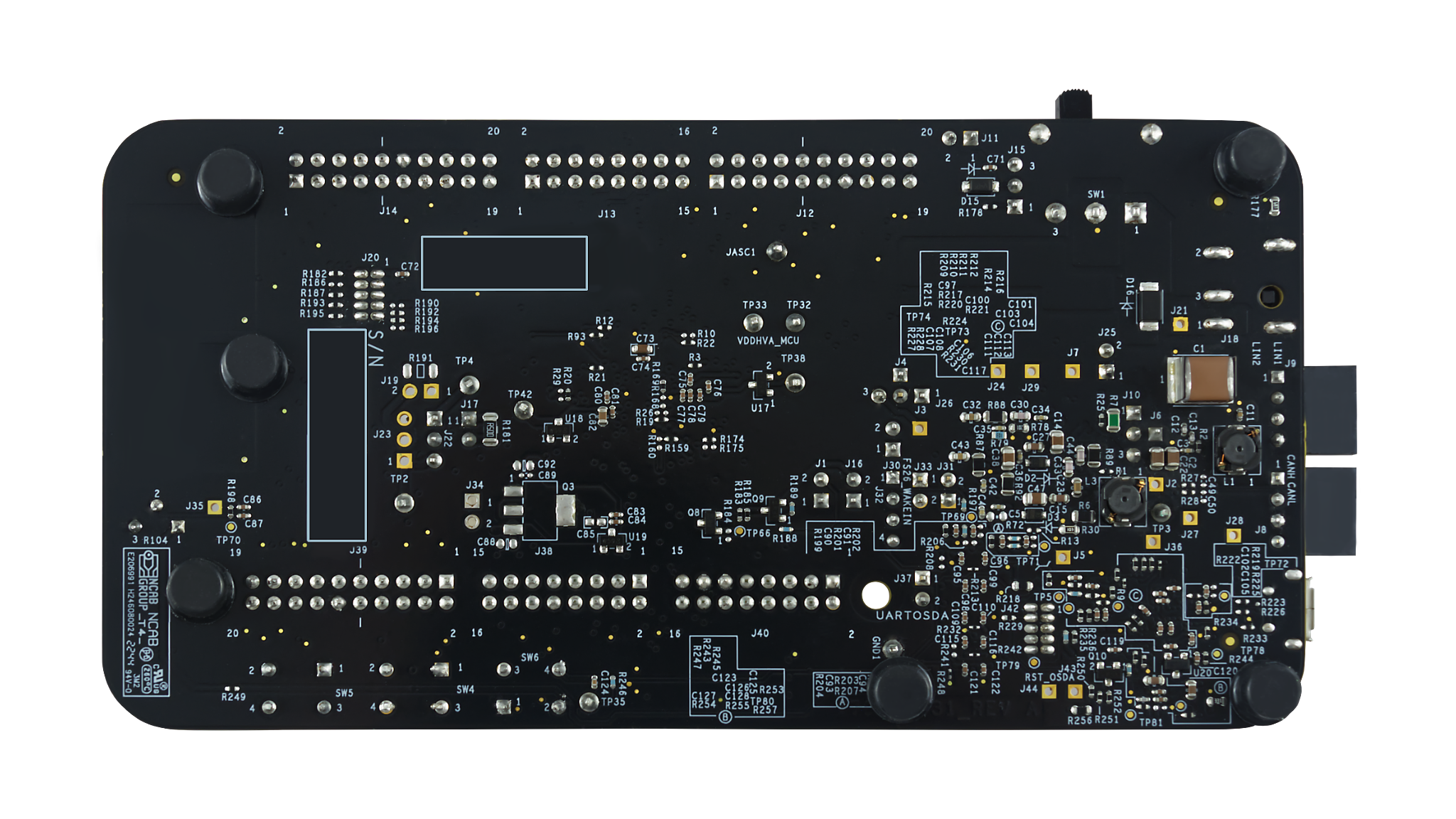

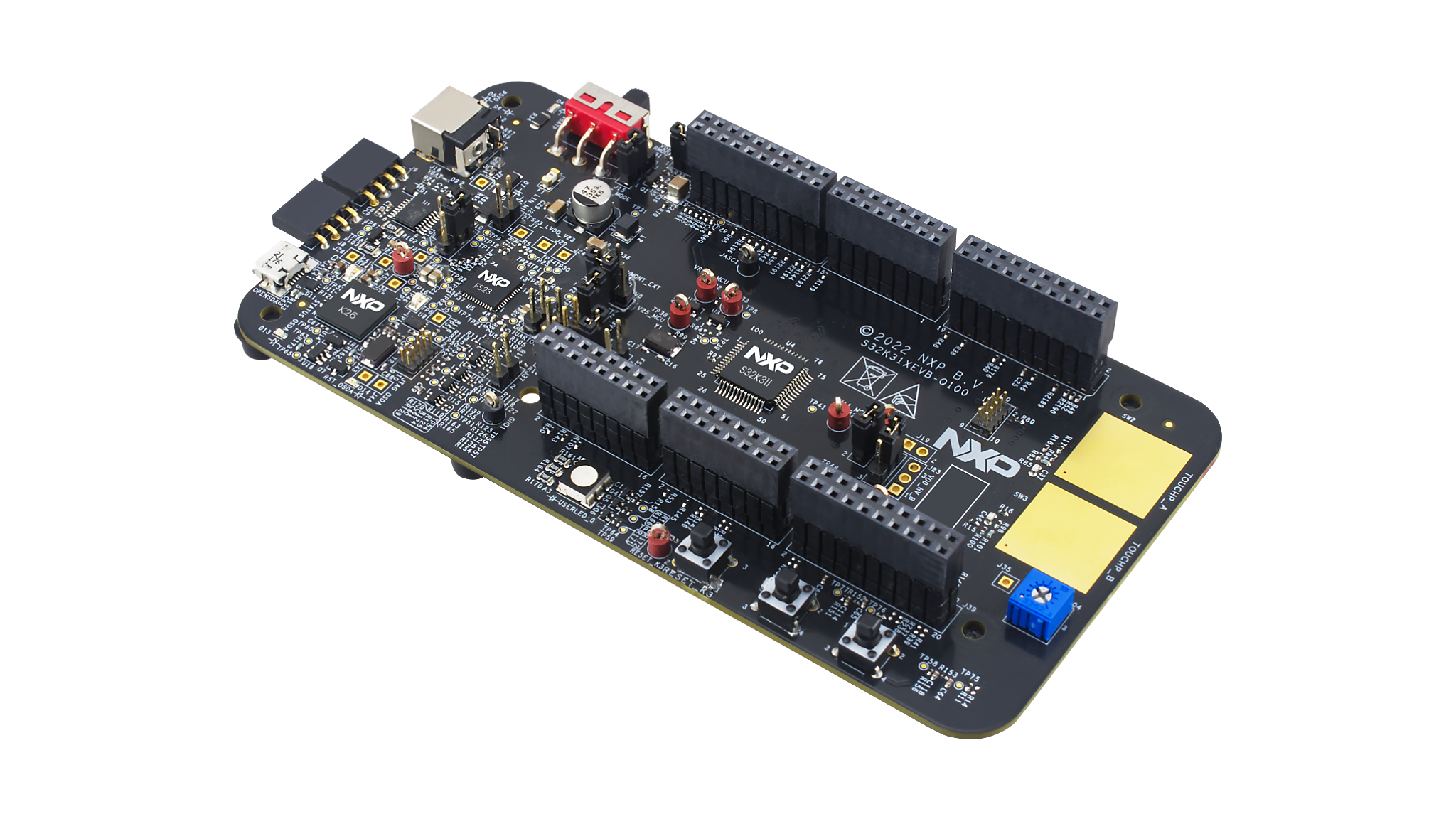

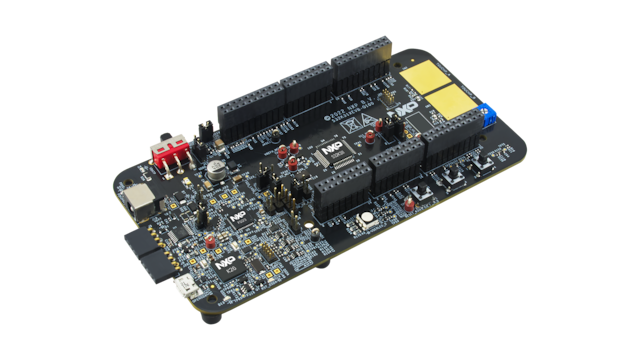

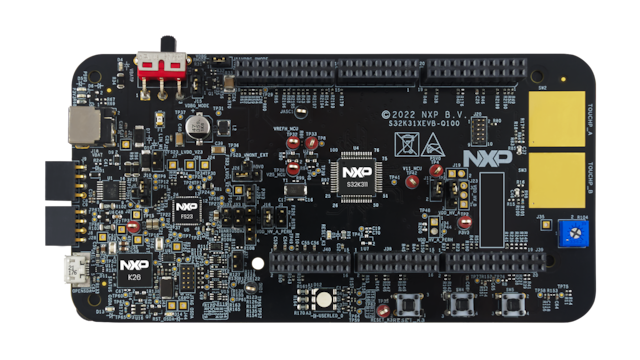

The S32K31XEVB-Q100 is an evaluation and development board for general-purpose industrial and automotive applications.

Based on the 32-bit Arm®Cortex®-M7 S32K3 MCU in a 100 HDQFP package, the S32K31XEVB-Q100 offers a single core mode, HSE security engine, OTA support, advanced connectivity and low power.

The S32K31XEVB-Q100 offers a standard-based form factor compatible with the Arduino® pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.

Block Diagram

S32K31XEVB-Q100 Features

S32K31XEVB-Q100 Features
Get diagram PDF

Supported Devices

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K3: S32K3 Microcontrollers for Automotive General Purpose

K2x / KS2x USB

  • K26_180: Kinetis® K26-180 MHz, Dual High-Speed and Full-Speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

Power Management

System Basis Chips

  • FS23: Safety System Basis Chip (SBC) Family with Power Management, CAN and LIN

Features

Hardware Features

  • Power supply switch
  • MCU voltage/current measurement
  • User RGB LED
  • 2x user push-buttons
  • ADC rotary potentiometer
  • 2x touch pad electrode

Software Features

Compatibility

  • Arduino pinout compatible with expansion “shield” support

Interfaces

  • On-board CAN FD
  • On-board LIN
  • SWD/JTAG debug interface for S32K3 debugger

Enablement

  • Free of charge S32 Design Studio IDE (Eclipse, GCC and debugger) and S32 Config Tool (pins, clocks, peripherals) with third-party compilers and debuggers

Buy Options

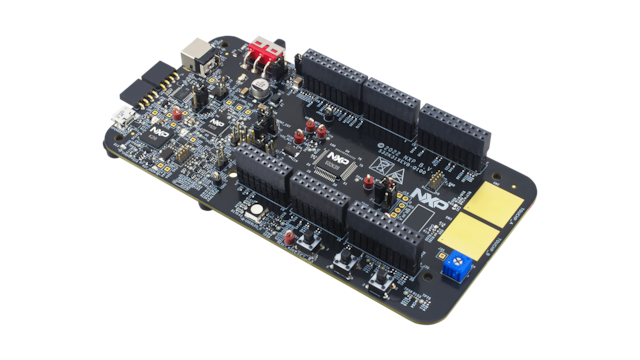

S32K31XEVB-Q100-Image

Click to expand

  • S32K31XEVB-Q100
    Active

  • S32K31XEVB-Q100 Evaluation Board for Automotive General Purpose.

  • Kit contains:

    • S32K31XEVB-Q100 Evaluation Board
  • $225.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 3
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
