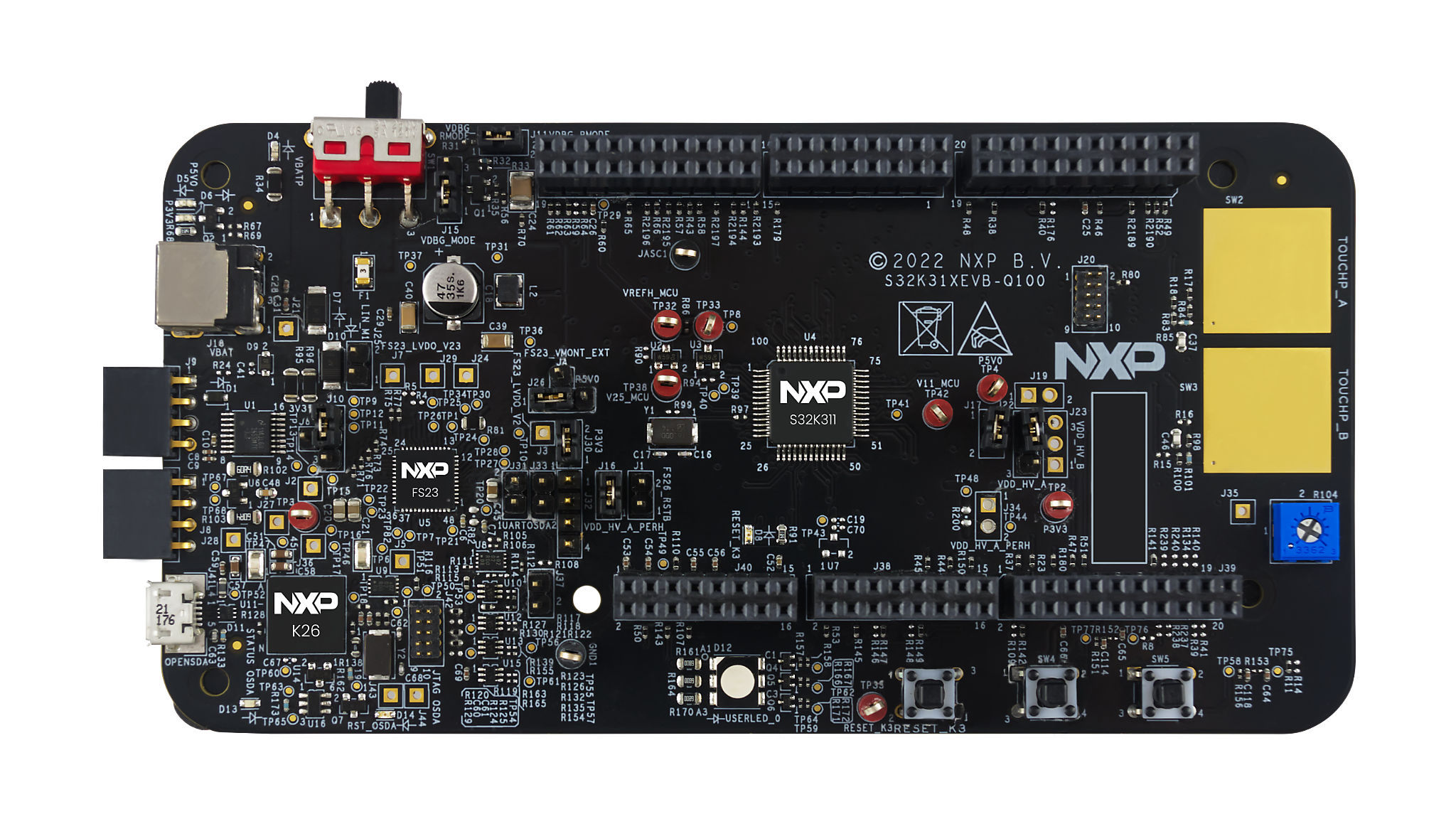

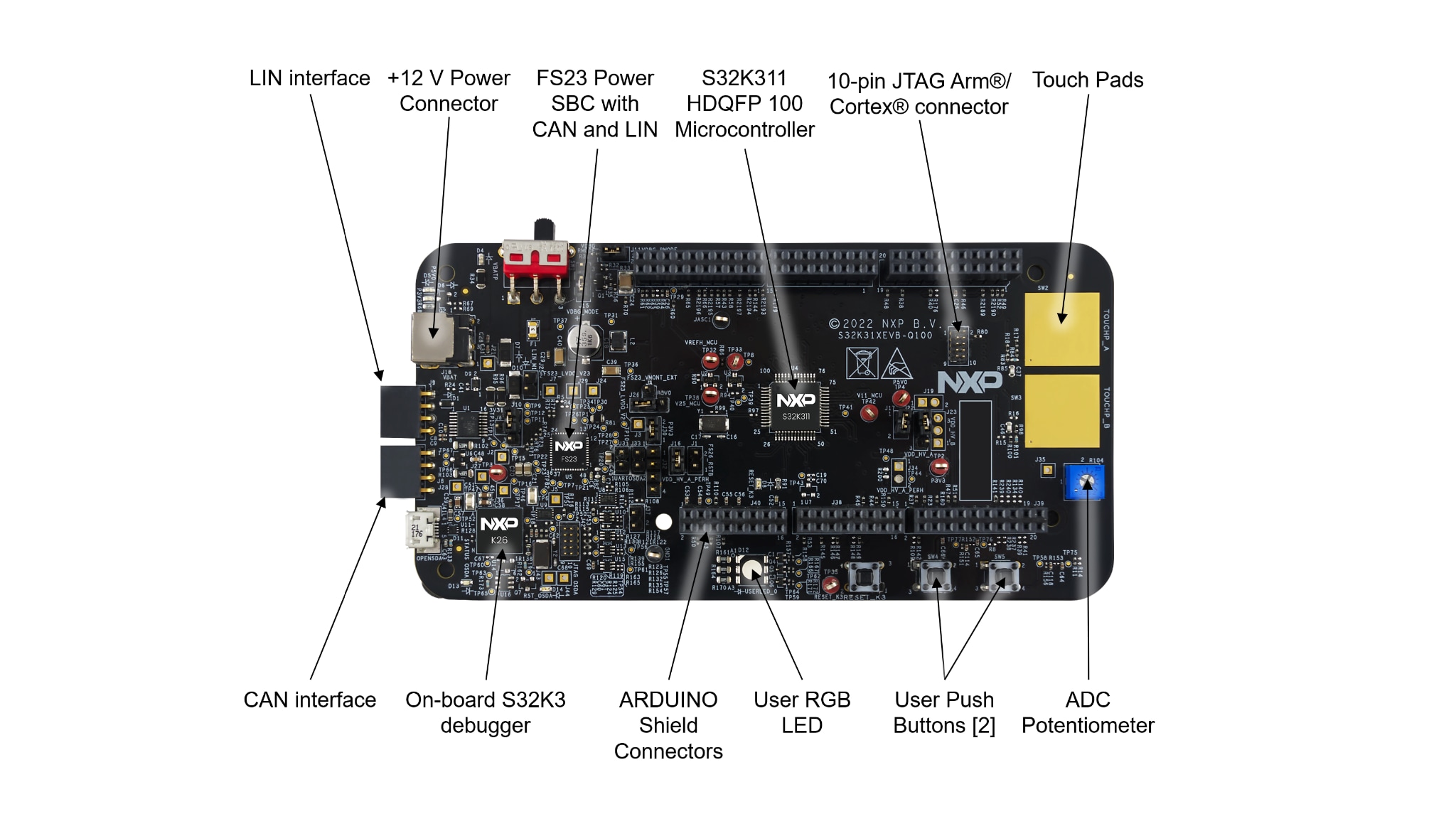

Getting Started with the S32K31XEVB-Q100 Evaluation Board for General Purpose

2.1 Get the Integrated Development Environment (IDE)

Download and install S32 Design Studio IDE for S32 Platform. Click S32 Design Studio for S32 Platform v.3.5.

Then click S32 Design Studio v3.5 Windows installer.

S32 Design Studio for S32 Platform v.3.5

S32 Design Studio for S32 Platform v.3.5

Note: You will receive an activation code via email or under the license Keys tab.

2.2 Install the S32K3xx Development Package and RTD

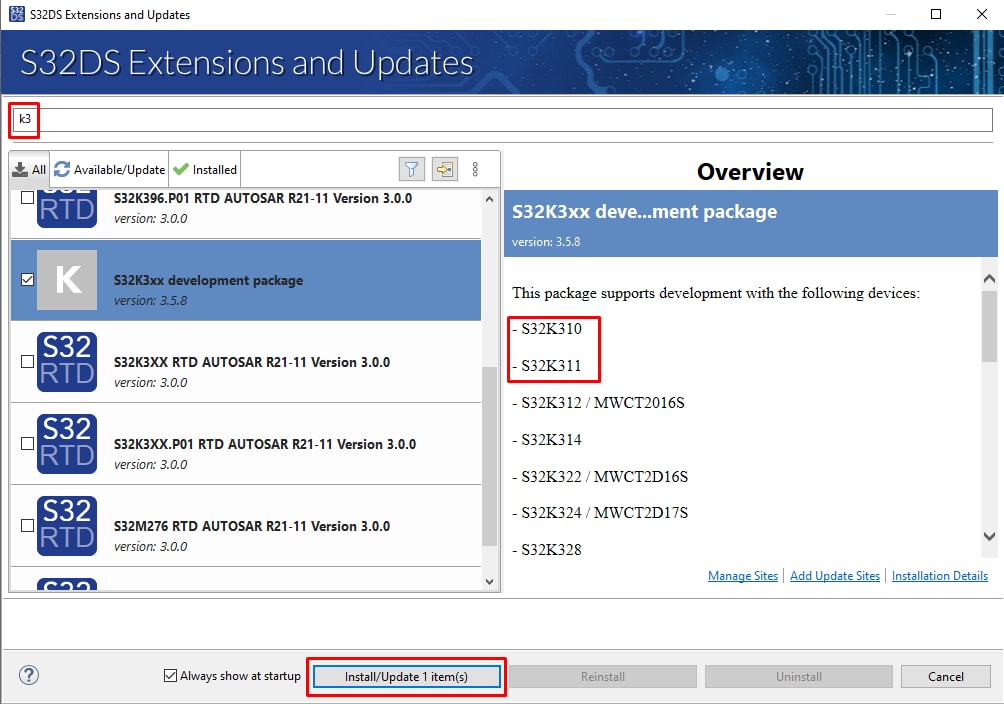

1. Go to Help → S32DS Extensions and Updates from the top menu to open the S32DS Extensions and Updates dialogue. Install S32K3xx Development Package


Note: In case of installation issues, please ensure that the latest version of S32 Design Studio Platform package and S32 Design Studio Platform Tools package is installed.

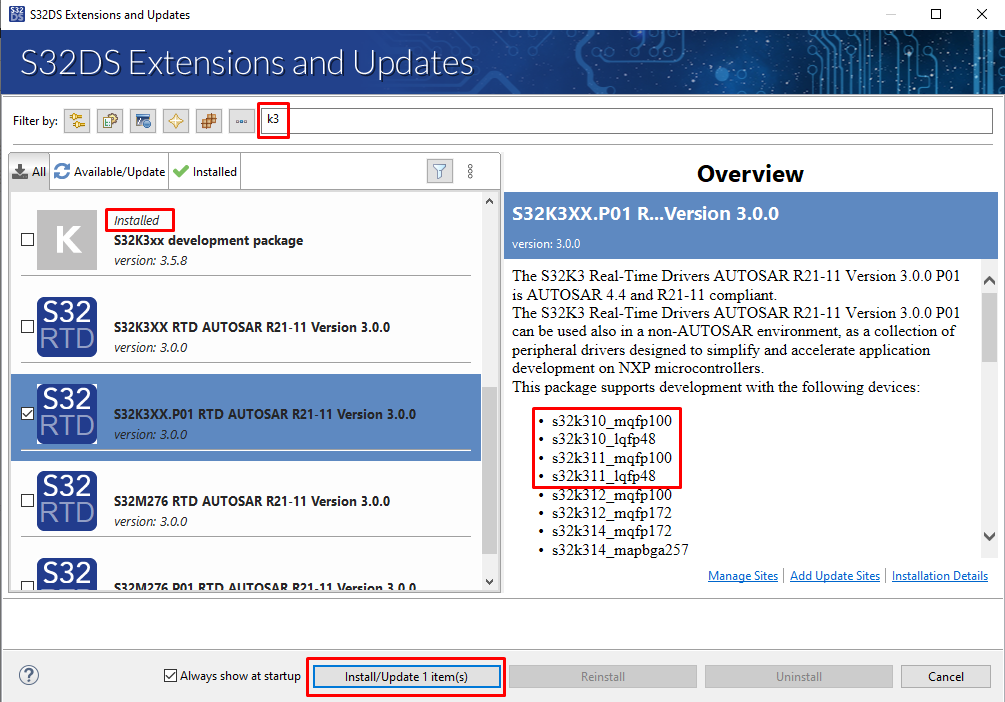

2. Continue with the installation of Real-Time Drivers for S32K3xx

2.3 For AUTOSAR® Users - Download and Install Elektrobit Tresos Studio and Real-Time Drivers

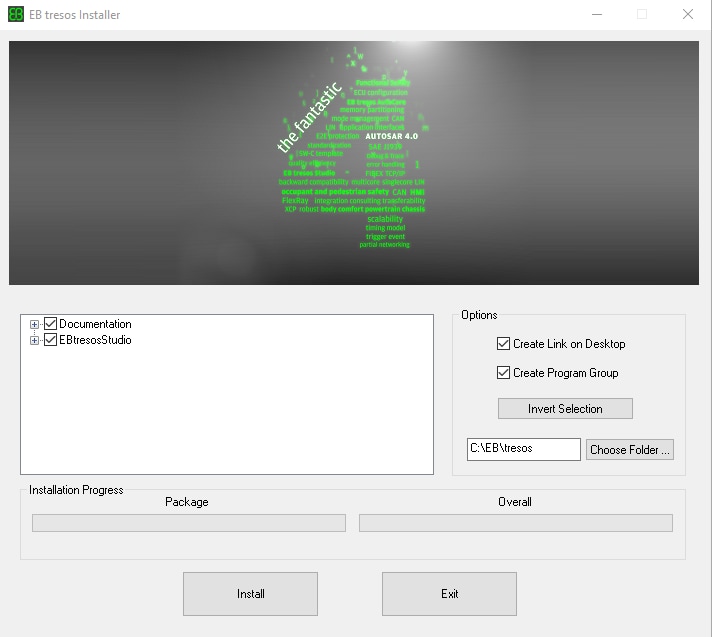

1. Download and install Automotive SW - Elektrobit tresos Studio / AUTOSAR Configuration Tool from the S32K3 Standard Software package

2. Select the version that you prefer and start the installation

3. Download and install also the Automotive SW - S32K3/S32M27x - Real-Time Drivers for Cortex-M from the S32K3 Standard Software package

4. Then search for the file S32K3 Real-Time Drivers AUTOSAR R21-11 Version 3.0.0 P10

5. Finally, start the installation

Note: You will receive an activation code via email. The Instalator will ask for the EB Tresos installation directory on your disk - that saves time in configuration. If you installed RTD prior to EB tresos, create a SW32K3_RTD_4.4_x.y.z.link file in: C:\EB\tresos\links folder with the content: "path=C:/NXP/SW32K3_RTD_4.4_x.y.z", where x,y,z refers to the installed RTD version.


Optionally select additional software tools from the S32K3 Standard Software tools list.

2.4 Get FreeMASTER Run-Time Debug Tool

S32K31XEVB-Q100 performs better when using the FreeMASTER Run-Time Debugging Tool.

Note: Check the FreeMASTER page for the latest version.

The FreeMASTER communication driver for S32K3 microcontrollers is also needed; download updatesite file with the FreeMASTER communication driver from the Automotive SW → S32K3 → S32 FreeMASTER link in the SW32K3-STDSW-D.

1. Open the S32DS Extensions and Updates dialog (menu → Help → S32DS Extensions and Updates), click Add Update Sites link and navigate to the FreeMASTER communication driver for S32K3 (zip file starting with "com.") on your disk

2. Install FreeMASTER Communication driver for S32K3

Note: Similarly, you may use these steps for manual download and installation of other software from the SW32K3-STDSW-D or SW32K3-REFSW-D.

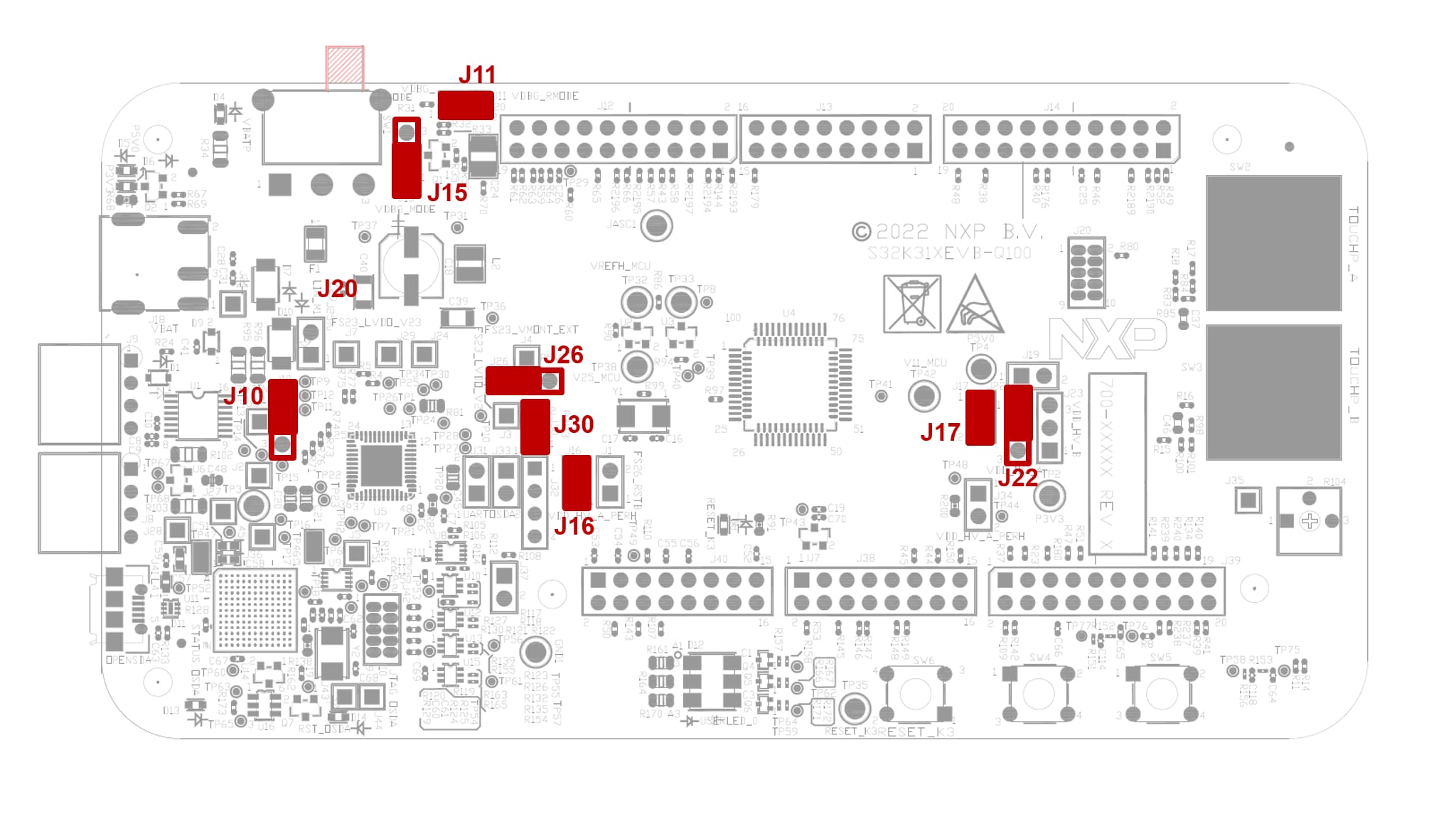

3.1 Set Up Jumpers in the S32K31XEVB-Q100 Evaluation Board

GS-S32K31XEVB-Q100-IMG11

GS-S32K31XEVB-Q100-IMG11

3.2 Plug in the Power Supply

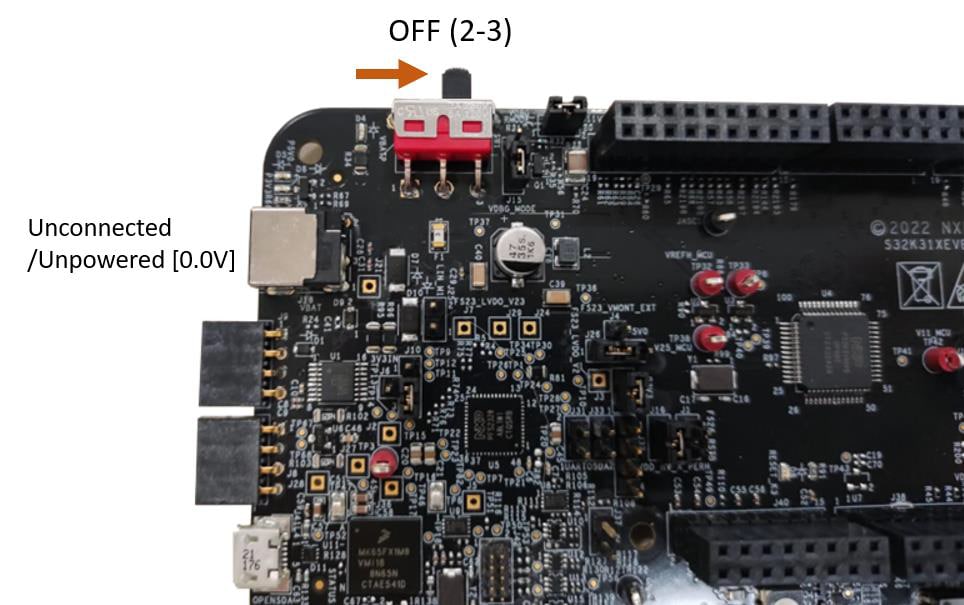

1. Switch SW1 to the OFF position (fully to the right)

GS-S32K31XEVB-Q100-IMG12



GS-S32K31XEVB-Q100-IMG12


2. Connect the 12 V power supply adapter and switch SW1 to the ON position (fully to the left)

GS-S32K31XEVB-Q100-IMG13



GS-S32K31XEVB-Q100-IMG13


3. When power is applied to the EVB, Three orange LED's adjacent to the voltage regulators show the presence of the supply voltages (12 V, 5 V and 3.3 V)

Note: This power-up procedure manages that FS23 SBC starts with a disabled watchdog.

3.3 Debugger Connection

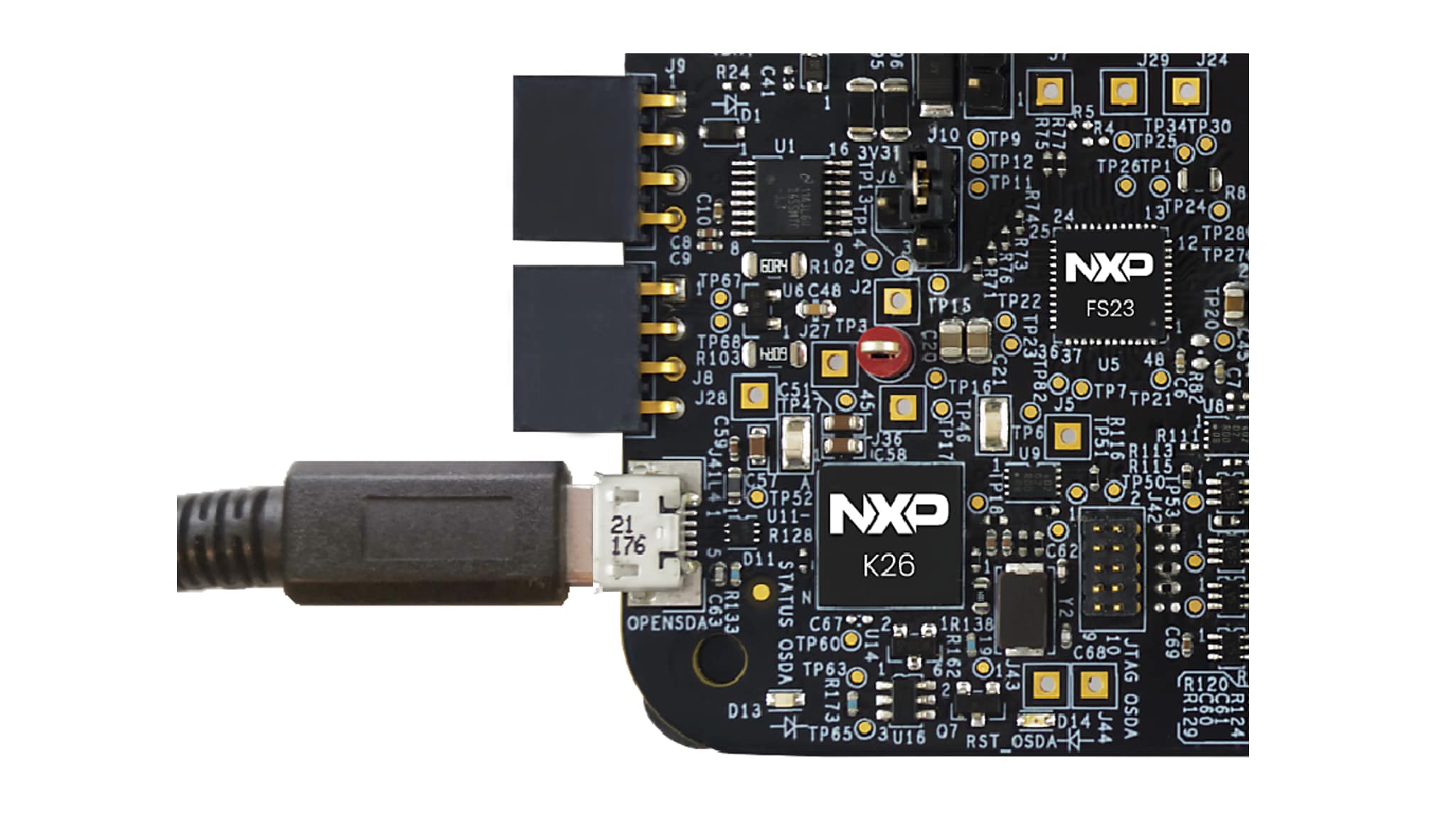

1. Connect a micro-USB cable to the J41 connector to debug via the on-board S32K3 debugger

GS-S32K31XEVB-Q100-IMG14



GS-S32K31XEVB-Q100-IMG14

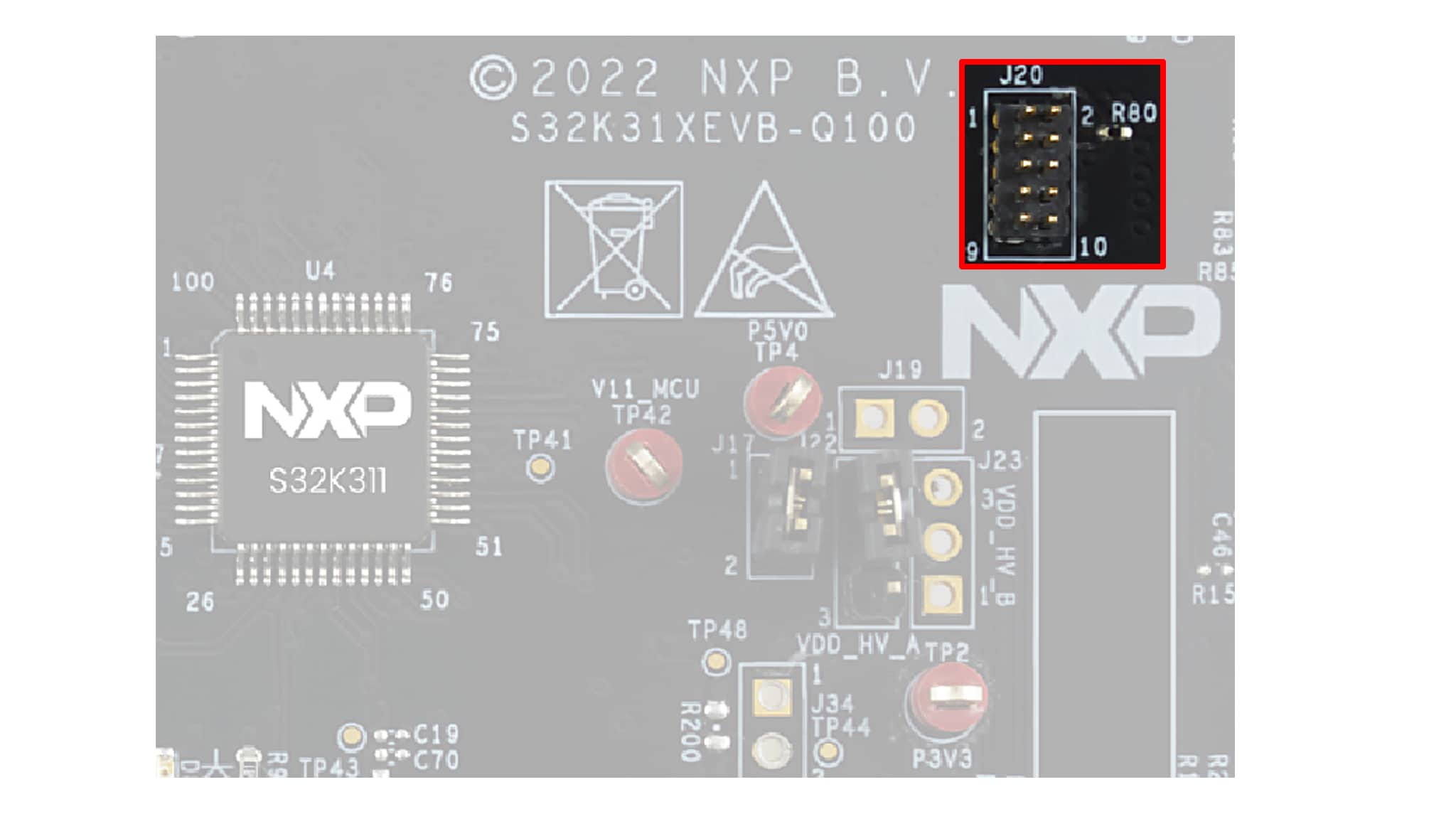

2. Or use one of the available JTAG connectors for debugging via an external S32K3 debugger

GS-S32K31XEVB-Q100-IMG15



GS-S32K31XEVB-Q100-IMG15

4.1 Create New S32DS Project

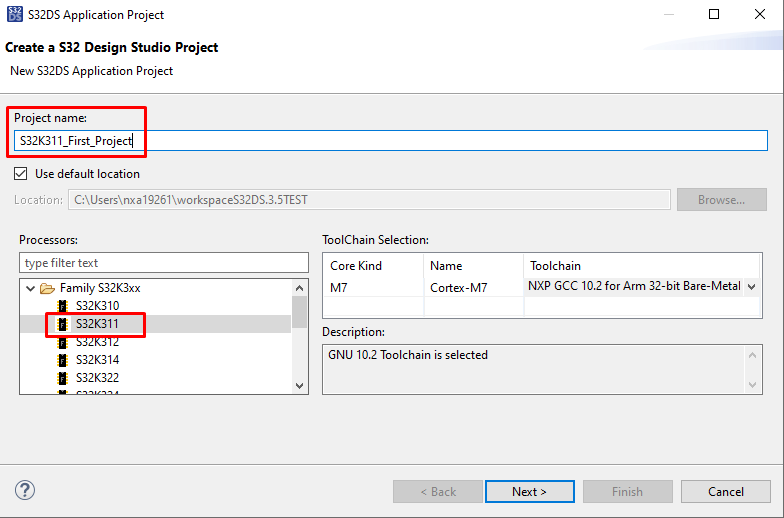

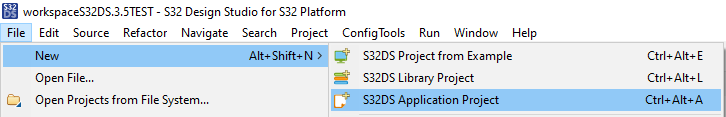

1. Open S32DS and from the menu, go to: File → New → S32DS Application Project. Fill in the project name(without spaces) and select S32K311 derivative

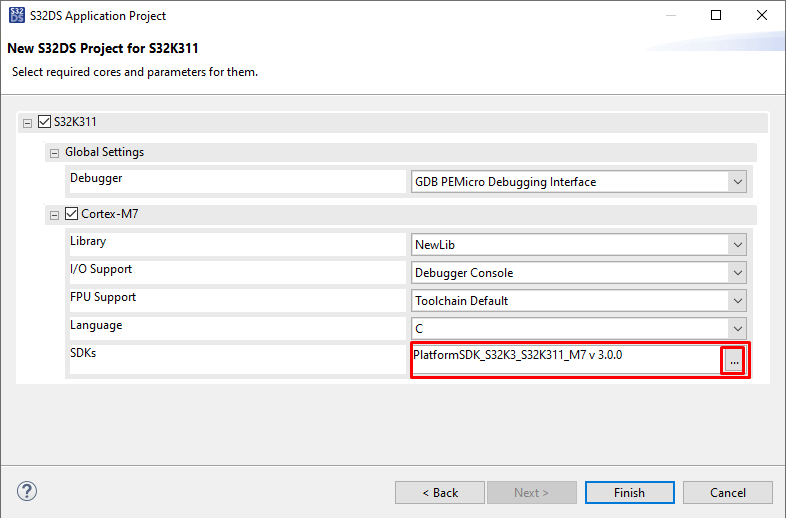

2. Select RTD drivers as Platform SDK and finish project creation

4.2 Set Pins

1. Double-click on project mex file

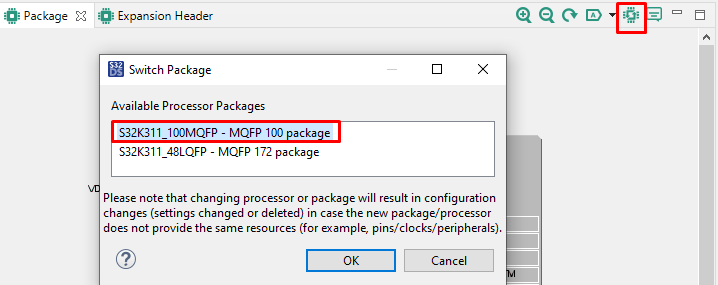

2. Select the 100HDQFP package

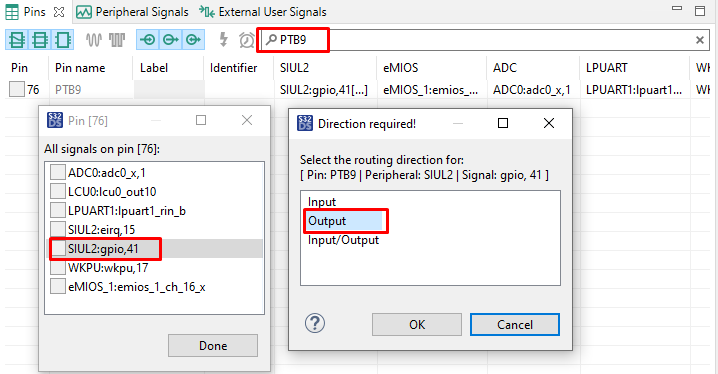

3. Set PTB9 pin (connected to Green LED) as GPIO Output
4. Define PTB9 Identifier (without spaces). For example "GREEN_LED"

4.3 Add Driver and Generate Configuration Files

Switch to the Peripherals perspective and add Siul2_Dio driver to the application.

Ensure that you configure the appropriate project and click on the Update Code button for generating configuration files.

4.4 Edit Code

1. Return back to the C/C++ perspective

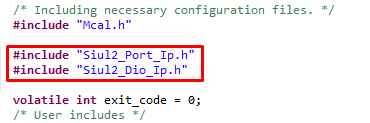

2. Edit main.c file in src folder and include the Port and Dio drivers
3. Enter the command line for pin initialization

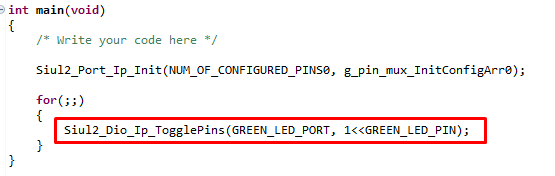

4. And finaly also the command for toggling with GREEN_LED pin

5.1 Upload Software

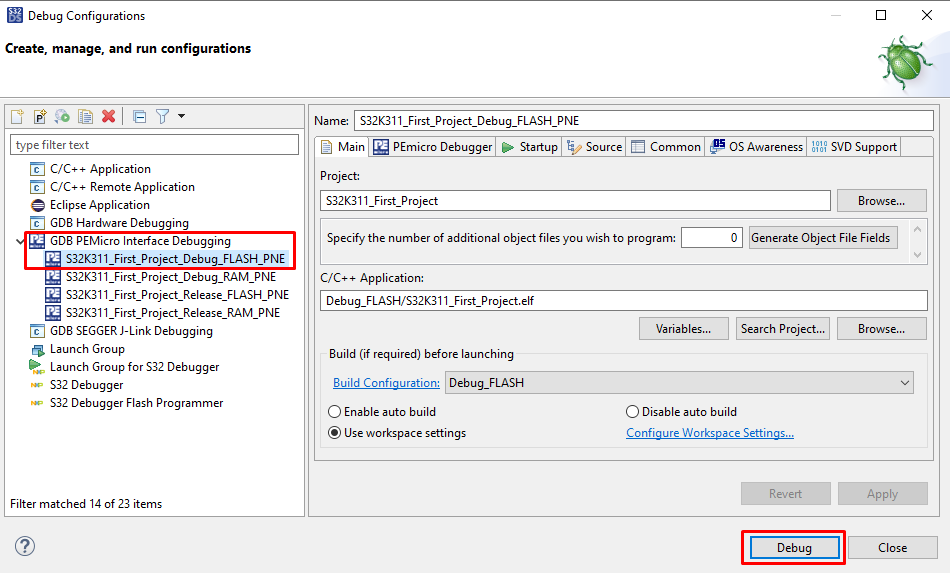

Use Debug Configuration menu and select one of predefined debug configurations for building and uploading software into MCU.

Note: If you don't use the default on-board debugger, edit Debugger tab for your setup.

5.2 Debug Code

The S32DS will switch into the Debug perspective where you Step Over (F6) your code.

The green LED will now be toggling in an endless loop.

5.3 Optional - Add Clock Initialization Code

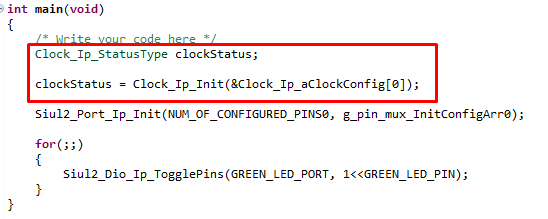

Similarly to previous steps, you may add the code for Clock initialization.
