S32K Power Estimation Tool (PET)

S32K-PET

Roll over image to zoom in

The S32K Power Estimation Tool (PET) provides a user interface to generate a power profile for an application use case quickly; it also helps calculate a first estimate of the average power consumption for developing automotive battery-operated applications.

The results should only be considered as an initial reference.

Diagram

Automotive General Block Diagram

Automotive General Block Diagram
Get diagram PDF

Features

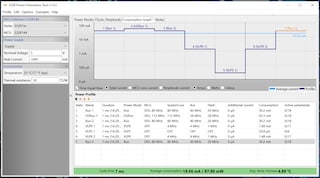

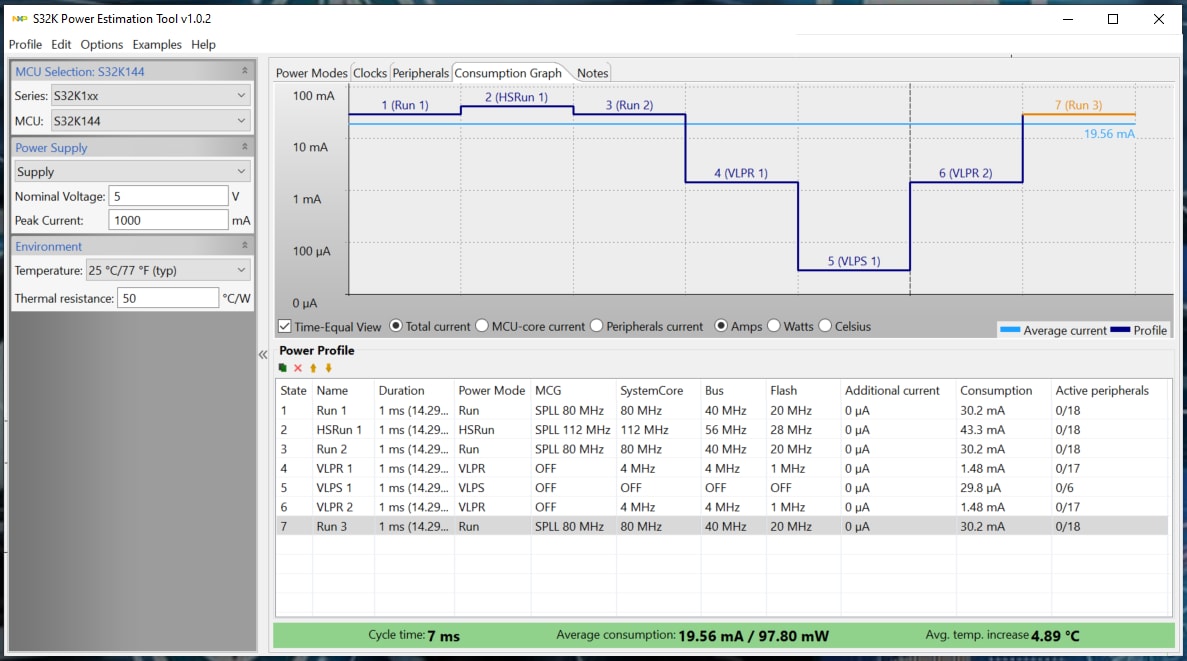

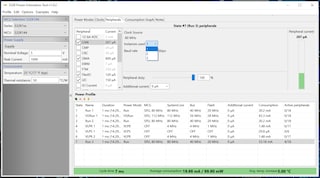

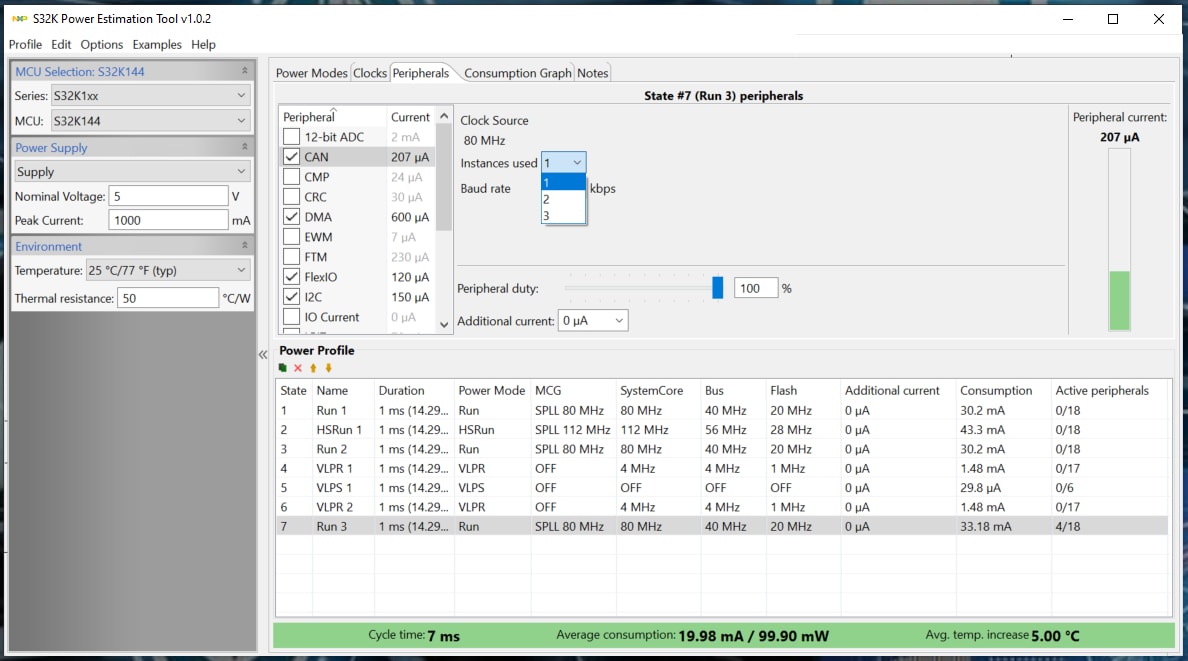

  • Estimates your application's power profile by analyzing the configuration details you provide for each state of your system
  • Provides immediate energy consumption and battery life estimations
  • Provides ability to save and load profiles and generate reports
  • Backed by real power measurement data
  • Quickly evaluate which S32K MCU fits your use-case and power budget

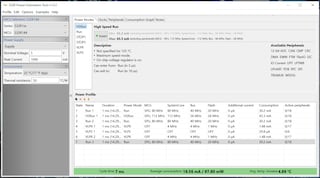

  • Accelerates learning curve for advanced power management features

Supported Devices

  • S32K1: S32K1 Microcontrollers for Automotive General Purpose
  • S32K3: S32K3 Microcontrollers for Automotive General Purpose
