S32K144 and NCx3340 Automotive NFC Add-On Board

NCX3340S32KEVB

Roll over image to zoom in

NXP's NCx3340 Automotive-Qualified NFC Controller with NCI Interface is equipped with embedded firmware. The compact, fully NFC Forum-compliant NCx3340 controller enables easy integration of NFC functionality into embedded systems of a car via the NCI interface.

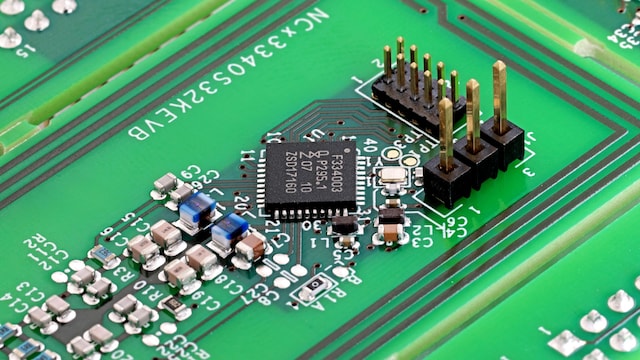

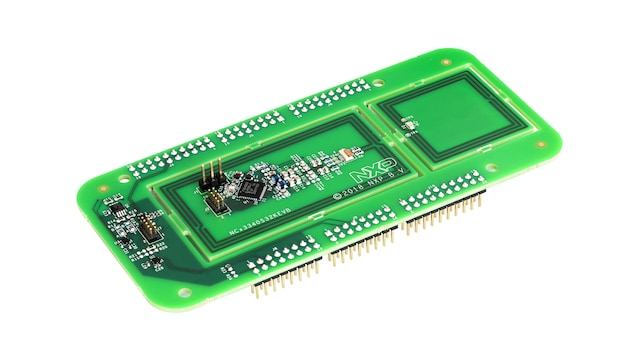

The small form factor NCx3340 board is designed to fit the Arm®-based S32K144 EVB. It offers a low-cost evaluation and development platform for quick application and demonstration prototyping for the S32K144 MCU and the NCx3340 full NFC controller.

For additional information contact support or your sales representative.

Product Details

Supported Devices

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K1: S32K1 Microcontrollers for Automotive General Purpose

Security and Authentication

Secure Car Access

  • NCF3340AHN: Automotive Qualified NFC Controller with NCI Interface
  • NCx3320: Automotive-Grade NFC Frontend IC

Features

Processor

  • Internal oscillator for 27.12 MHz crystal
  • Integrated PLL unit for use with an external reference clock

Power Management

  • An integrated power management unit
  • Voltage supply: 2.3 to 5.5 V
  • Autonomous mode when the host is shut down
  • Automatic wake-up via RF field and an internal timer

Support

  • Supports Reader/Writer mode with multiple protocols incl. ISO/IEC 14443 A/MIFARE, ISO/IEC 14443 B, FeliCa, and ISO/IEC 15693
  • Supports Passive and Active Peer to Peer mode with full NFCIP-1 and NFCIP-2 compliance
  • Supports Card Emulation mode in accordance with ISO/IEC 14443 A and FeliCaSupported host interfaces: SPI bus, I²C bus, NCI protocol interface according to NFC Forum NCI standardization
