S32 Debug Probe

S32-DP Active

Roll over image to zoom in

S32 Debug Probe enables NXP target system debugging via a standard debug port while connected to a developer’s workstation via Ethernet or USB. S32 Debug Probe may also be referred to by industry-standard terms such as a probe, JTAG probe, JTAG emulator or target probe.

Using S32 Debug Probe’s Ethernet connection, developers can debug systems remotely or effectively share a single system within a team. Alternatively Or, S32 Debug Probe connects directly to the developer’s workstation with a single USB cable. S32 Debug Probe is designed to work in conjunction with S32 Design Studio and NXP Automotive Microcontrollers and Processors. It is a critical debug tool in all phases of the project.

Block Diagram

Automotive General Block Diagram

Automotive General Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

S32V2 Vision MPUs

  • S32V234: S32V2 Processors for Vision, Machine Learning and Sensor Fusion

S32G Vehicle Network Processors

  • S32G2: S32G2 Processors for Vehicle Networking
  • S32G3: S32G3 Processors for Vehicle Networking

S32R Radar Processing

  • S32R45: S32R45 High-Performance Processor for Imaging Radar
  • S32R41: S32R41 High-Performance Processor for High-Resolution Radar

S32Z and S32E Real-Time Processors

  • S32E2: S32E2 Safe and Secure High-Performance Real-Time Processors with Actuation Support
  • S32Z2: S32Z2 Safe and Secure High-Performance Real-Time Processors

S32K Auto General-Purpose MCUs

  • S32K39-37-36: S32K39/37/36 Microcontrollers for Electrification Applications

S32M Integrated Solutions for MC

  • S32M2: S32M2 Integrated Solution for 12V Motor Control

Features

Connectivity

  • Allows either USB or Ethernet (10/100) host connection for the developer workstation

Power Management

  • USB powered, even when using Ethernet

Debug

  • Supports debugging via JTAG interface
  • With the S32 Design Studio, S32 Debug Probe:
    • Programs system flash memory during debugging and development phases of the project
    • Controls the target development system even when the application system may have crashed during development
    • Offers complete system visibility and control, including reading/writing of CPU registers, memory mapped registers, block reading/writing of memories, single-step debugging, setting software and hardware breakpoints, and monitoring target system status
    • Gives control over the target system execution, including control of one or all cores and resets

Support

  • Automatically supports system voltage levels from 1.2 to 3.3
  • Supports all available core speeds and voltages for supported NXP Automotive Microcontrollers and Processors

Buy Options

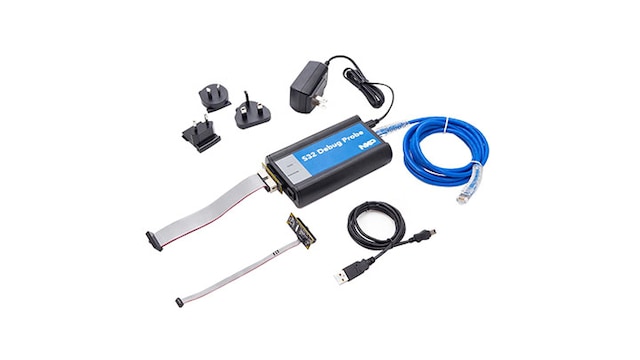

S32DBGPROBE-Image

Click to expand

  • S32DBGPROBE
    Active

  • S32 Debug Probe.

    • S32 Debug Probe
    • USB power supply
    • USB cable
    • Arm 10 pin probe tip and ribbon cable
    • Arm 20 pin probe tip and ribbon cable
    *Ethernet cable not included
  • $525.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 11
    • Shipping: Normally ships 1-2 business days
