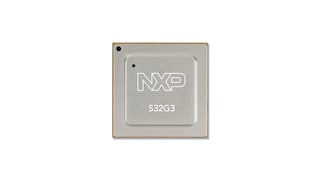

S32G3 Safe and Secure Vehicle Network Processor

S32G3 Safe and Secure Vehicle Network Processor | NXP Semiconductors

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

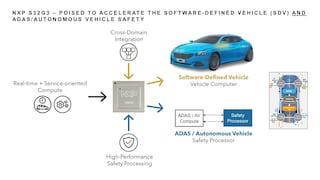

S32G3 vehicle network processors combine ASIL D safety, hardware security, high-performance real-time and application processing and network acceleration. S32G3 supports the needs of new vehicle architectures: service-oriented gateways, vehicle computers, domain controllers, zonal processors, safety processors and more.

The S32G3 vehicle network processors are supported by a broad range of software enablement that is comprised of Reference Software, Standard Software and Premium Software, in addition to support from the S32 Design Studio IDE.

The S32G3 series extends the S32G family with pinout and software compatibility with the S32G2 series.

Data Sheet

Reference Manual

Product Details

Block Diagram

Choose a diagram:

S32G3 Processor
S32G Processors Software Ecosystem

S32G3 Processor

S32G Processors Software Ecosystem

Get diagram PDF

Features

Key Features

Extend S32G family capabilities with software and pin compatibility with S32G2 processors
Up to 8 Arm® Cortex®-A53 cores with Arm Neon™ technology organized in two clusters of four cores with optional cluster lockstep for applications and services
Up to 4 Arm® Cortex® -M7 dual-core lockstep (DCLS) complexes for real-time applications
Up to 20 MB of on-chip System SRAM
Low Latency Communication Engine (LLCE) for automotive networks acceleration
Packet Forwarding Engine (PFE) for Ethernet networks acceleration with 3 ports supporting 2.5 Gbps
Hardware Security Engine (HSE) for secure boot and accelerated security services
16 isolation domains with eXtended Resource Domain Control (XRDC)
Advanced functional safety hardware and software for ASIL D systems
AEC-Q100 Grade 2 device: -40 °C to 105 °C

Software Enablement

Offered software support enables the S32G3 features running on the Arm Cortex-M7 and Arm Cortex-A53, plus the accelerators. Explore the vast array of available software solutions to help users build their applications.

Tools	Reference Software	Standard Software	Premium Software
S32 Design Studio for S32 Platform Including Config Tools FreeMASTER Run-Time Debugging Tool Host PC Real-Time Debugging Tools eIQ® Auto Machine Learning (ML) Toolkit	Linux BSP Cortex®-A53 FreeRTOS™ Cortex®-M7 Integration Reference Examples Cortex-A53 Cortex-M7 USB Stack Cortex-M7 TCP/IP Stack Cortex-M7 SDHC Stack Cortex-M7 S32G Board Diagnostic Tests	S32 Real-Time Drivers (RTD) Cortex-M7 Including EB tresos Studio Safety Peripheral Drivers (SPD) Cortex-M7 Inter-Platform Comms Framework (IPCF) Cortex-A53 Cortex-M7 PFE Driver + Standard Firmware LLCE Driver Standard Firmware HSE Standard Firmware	S32 Security NDA required Increased key count IDPS capability IPsec Customization services LLCE Driver Firmware Dev Kit Automotive SW for S32G3 - Linux BSP	S32 Safety NDA required S32 Safety Software Framework (SAF) Cortex-A53 Cortex-M7 Safety concept implementation Structural Core Self-Test (SCST) Cortex-A53 Shared Resource Manager (SRM) Product Brief Cortex-M7 Linux BSP S32G Packet Forwarding Engine (PFE) Product Brief Linux BSP
Vehicle Integration Platform S32G GoldVIP: Accelerates S32G evaluation, development, integration and rapid prototyping efforts.
Software Package Manager Use the Automotive Software Package Manager to navigate the offerings, view product briefs and release notes and easily download software. Launch Software Package Manager			NXP Support Contact an NXP representative for more information. Support Home	SafeAssure NDA group Available through NXP Secure Content. Request Access

Reference Software

Includes FreeRTOS™ support for the Cortex-M7 cores and Linux BSP support for the Cortex-A53 cores, as well as integration reference examples and board diagnostic tests.

Standard Software

Includes Real-Time Drivers for AUTOSAR® and non-AUTOSAR operating systems, safety peripheral drivers and an inter-platform communication framework for communications between the Cortex-M7 and Cortex-A53 cores and hardware accelerator drivers and firmware.

Premium Software

Includes premium security with expanded security capabilities and Premium Safety, which includes the S32 Safety Software Framework for functional safety implementations and Structural Core Self Test (SCST) for the Cortex-A53 cores.

Product Programs

Product Longevity

Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.

Buy/Parametrics

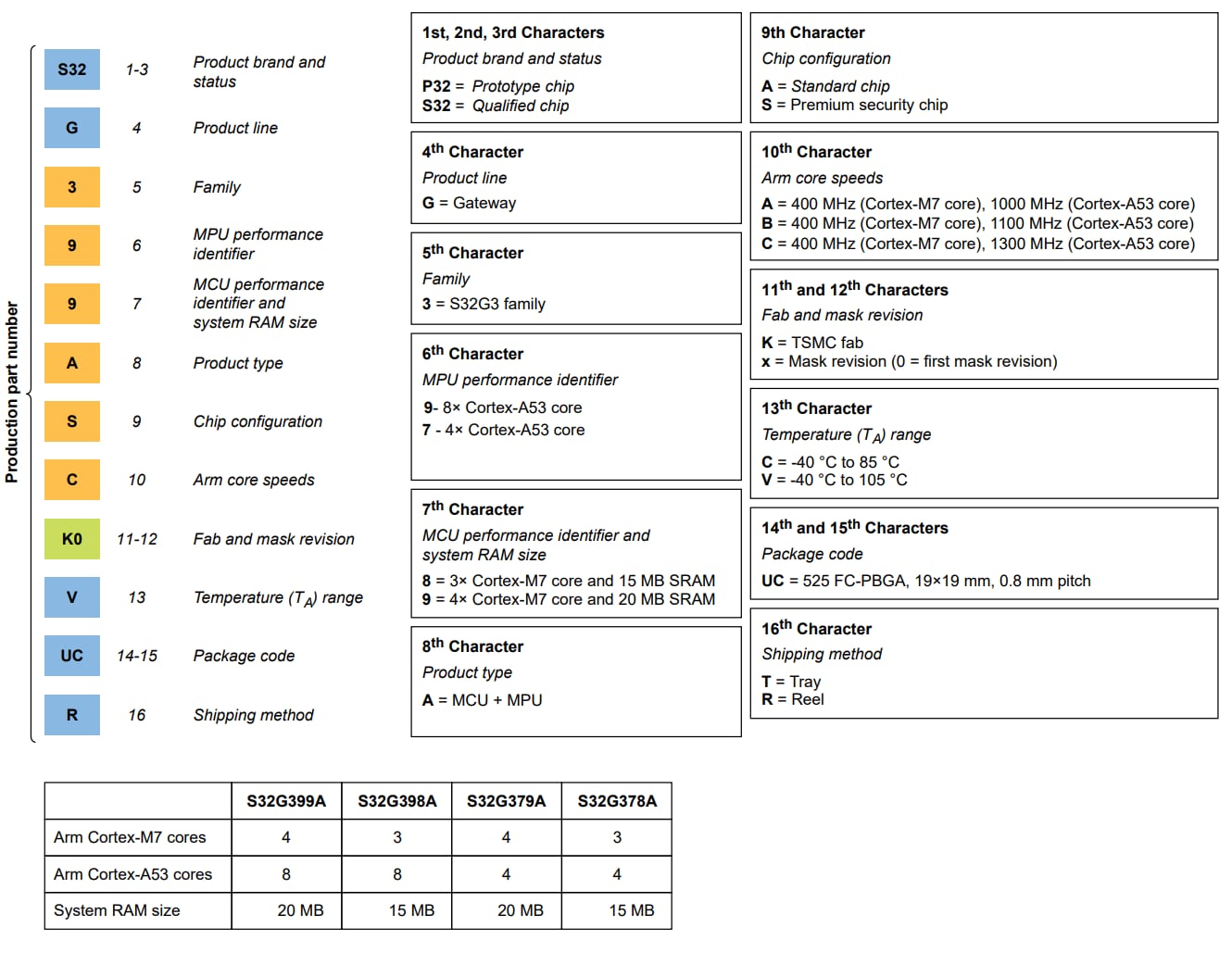

Part Show description	Core Type	Lockstep	Operating Frequency [Max] (MHz)	RAM (kB)	Standby RAM	External Memory Supported	Serial Communication	Number of LIN Channels	Flexray	CAN	CAN FD	Ethernet MACs	Ethernet Type	PCIe	USB	Security Modules	Hardware Isolation	Timer	PWM [Number, bits]	ADC [Number, bits]	JTAG Debug	Aurora Trace	Package Type	Package Pitch (mm)	SafeAssure Functional Safety	ASIL Certification	AEC-Q100 Temperature Range
S32G378AACK1VUCT Data Sheet	3 x Arm Cortex-M7, 4 x Arm Cortex-A53	Cluster, Dual-Core	400, 1300	15000	32000	DDR3L SDRAM, LPDDR4 DRAM, QSPI NOR, SD3.0/eMMC5.1 NAND	10 x SPI, 2 x FlexRay, 3 x UART, 5 x I²C	4	2	20	20	4	MII, RGMII, RMII, SGMII	2 x PCIe 3.0	1 x USB OTG	HSE_H	XRDC	12 x WDT x 32, 13 x STM x 32	6 x 32	12 x 12	Y	Y	FBGA525	0.8	ISO 26262	up to ASIL D	grade 2
S32G378ASCK1VUCT Data Sheet	3 x Arm Cortex-M7, 4 x Arm Cortex-A53	Cluster, Dual-Core	400, 1300	15000	32000	DDR3L SDRAM, LPDDR4 DRAM, QSPI NOR, SD3.0/eMMC5.1 NAND	10 x SPI, 2 x FlexRay, 3 x UART, 5 x I²C	4	2	20	20	4	MII, RGMII, RMII, SGMII	2 x PCIe 3.0	1 x USB OTG	HSE_H	XRDC	12 x WDT x 32, 13 x STM x 32	6 x 32	12 x 12	Y	Y	FBGA525	0.8	ISO 26262	up to ASIL D	grade 2
S32G379AACK1VUCT Data Sheet	4 x Arm Cortex-A53, 4 x Arm Cortex-M7	Cluster, Dual-Core	400, 1300	20000	32000	DDR3L SDRAM, LPDDR4 DRAM, QSPI NOR, SD3.0/eMMC5.1 NAND	10 x SPI, 2 x FlexRay, 3 x UART, 5 x I²C	4	2	20	20	4	MII, RGMII, RMII, SGMII	2 x PCIe 3.0	1 x USB OTG	HSE_H	XRDC	12 x WDT x 32, 13 x STM x 32	6 x 32	12 x 12	Y	Y	FBGA525	0.8	ISO 26262	up to ASIL D	grade 2
S32G379ASCK1VUCT Data Sheet	4 x Arm Cortex-A53, 4 x Arm Cortex-M7	Cluster, Dual-Core	400, 1300	20000	32000	DDR3L SDRAM, LPDDR4 DRAM, QSPI NOR, SD3.0/eMMC5.1 NAND	10 x SPI, 2 x FlexRay, 3 x UART, 5 x I²C	4	2	20	20	4	MII, RGMII, RMII, SGMII	2 x PCIe 3.0	1 x USB OTG	HSE_H	XRDC	12 x WDT x 32, 13 x STM x 32	6 x 32	12 x 12	Y	Y	FBGA525	0.8	ISO 26262	up to ASIL D	grade 2
S32G398AAAK1VUCT Data Sheet	3 x Arm Cortex-M7, 8 x Arm Cortex-A53	Cluster, Dual-Core	400, 1000	15000	32000	DDR3L SDRAM, LPDDR4 DRAM, QSPI NOR, SD3.0/eMMC5.1 NAND	10 x SPI, 2 x FlexRay, 3 x UART, 5 x I²C	4	2	20	20	4	MII, RGMII, RMII, SGMII	2 x PCIe 3.0	1 x USB OTG	HSE_H	XRDC	12 x WDT x 32, 13 x STM x 32	6 x 32	12 x 12	Y	Y	FBGA525	0.8	ISO 26262	up to ASIL D	grade 2
S32G398AABK1VUCT Data Sheet	3 x Arm Cortex-M7, 8 x Arm Cortex-A53	Cluster, Dual-Core	400, 1100	15000	32000	DDR3L SDRAM, LPDDR4 DRAM, QSPI NOR, SD3.0/eMMC5.1 NAND	10 x SPI, 2 x FlexRay, 3 x UART, 5 x I²C	4	2	20	20	4	MII, RGMII, RMII, SGMII	2 x PCIe 3.0	1 x USB OTG	HSE_H	XRDC	12 x WDT x 32, 13 x STM x 32	6 x 32	12 x 12	Y	Y	FBGA525	0.8	ISO 26262	up to ASIL D	grade 2
S32G398AACK1VUCT Data Sheet	3 x Arm Cortex-M7, 8 x Arm Cortex-A53	Cluster, Dual-Core	400, 1300	15000	32000	DDR3L SDRAM, LPDDR4 DRAM, QSPI NOR, SD3.0/eMMC5.1 NAND	10 x SPI, 2 x FlexRay, 3 x UART, 5 x I²C	4	2	20	20	4	MII, RGMII, RMII, SGMII	2 x PCIe 3.0	1 x USB OTG	HSE_H	XRDC	12 x WDT x 32, 13 x STM x 32	6 x 32	12 x 12	Y	Y	FBGA525	0.8	ISO 26262	up to ASIL D	grade 2
S32G398ASAK1VUCT Data Sheet	3 x Arm Cortex-M7, 8 x Arm Cortex-A53	Cluster, Dual-Core	400, 1000	15000	32000	DDR3L SDRAM, LPDDR4 DRAM, QSPI NOR, SD3.0/eMMC5.1 NAND	10 x SPI, 2 x FlexRay, 3 x UART, 5 x I²C	4	2	20	20	4	MII, RGMII, RMII, SGMII	2 x PCIe 3.0	1 x USB OTG	HSE_H	XRDC	12 x WDT x 32, 13 x STM x 32	6 x 32	12 x 12	Y	Y	FBGA525	0.8	ISO 26262	up to ASIL D	grade 2
S32G398ASCK1VUCT Data Sheet	3 x Arm Cortex-M7, 8 x Arm Cortex-A53	Cluster, Dual-Core	400, 1300	15000	32000	DDR3L SDRAM, LPDDR4 DRAM, QSPI NOR, SD3.0/eMMC5.1 NAND	10 x SPI, 2 x FlexRay, 3 x UART, 5 x I²C	4	2	20	20	4	MII, RGMII, RMII, SGMII	2 x PCIe 3.0	1 x USB OTG	HSE_H	XRDC	12 x WDT x 32, 13 x STM x 32	6 x 32	12 x 12	Y	Y	FBGA525	0.8	ISO 26262	up to ASIL D	grade 2
S32G399AAAK1VUCT Data Sheet	4 x Arm Cortex-M7, 8 x Arm Cortex-A53	Cluster, Dual-Core	400, 1000	20000	32000	DDR3L SDRAM, LPDDR4 DRAM, QSPI NOR, SD3.0/eMMC5.1 NAND	10 x SPI, 2 x FlexRay, 3 x UART, 5 x I²C	4	2	20	20	4	MII, RGMII, RMII, SGMII	2 x PCIe 3.0	1 x USB OTG	HSE_H	XRDC	12 x WDT x 32, 13 x STM x 32	6 x 32	12 x 12	Y	Y	FBGA525	0.8	ISO 26262	up to ASIL D	grade 2

Design Resources

Design Files

Quick reference to our design files types.

5 design files

Models
S32G3 Vehicle Network Processor IBIS Models

ZIPRev 0Aug 11, 202122.3 MBS32G399A-IBIS-MODEL

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Models
S32G3 Ansys Icepak Thermal Models

ZIPRev 0Oct 14, 202137.8 KBS32G3-ASYS-ICEPAK-THERMAL-MODEL

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Models
S32G3 Vehicle Network Processors DDR Models

ZIPRev 0Oct 27, 2021209.9 MBS32G3_DDR_MODELS

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Models
S32G3 Mentor FloTHERM Thermal Models

ZIPRev 0Oct 14, 20211.6 KBS32G3-MENTOR-FLOTHERM-THERMAL-MODEL

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Models
S32G3 Vehicle Network Processors BSDL Models

ZIPRev 1.1Mar 30, 202311.0 KBS32G3-BGA-BSDL-MODELS
