SABRE Development Boards for TJA11xx PHYs

TJA11xx-SDBx

Roll over image to zoom in

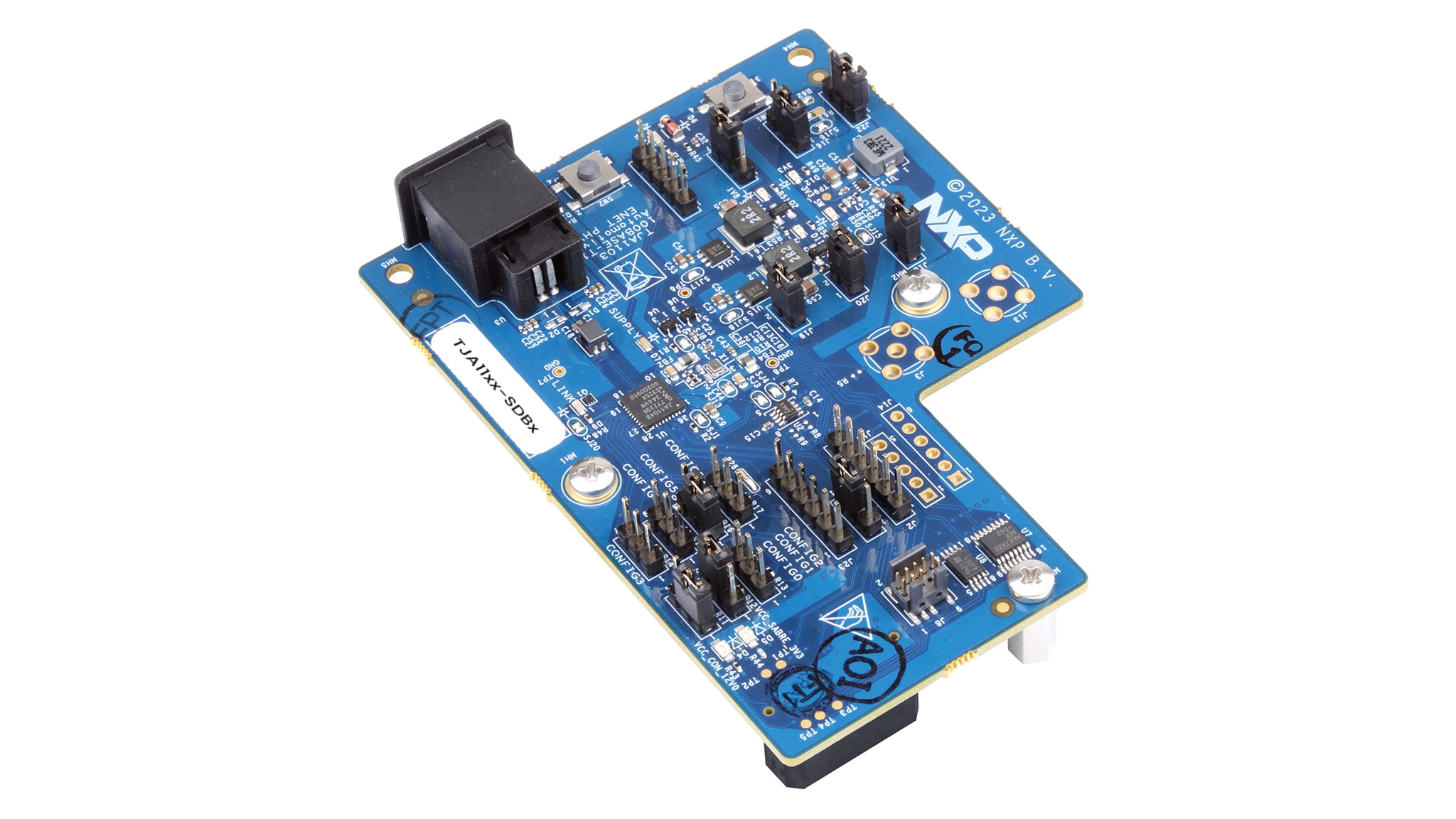

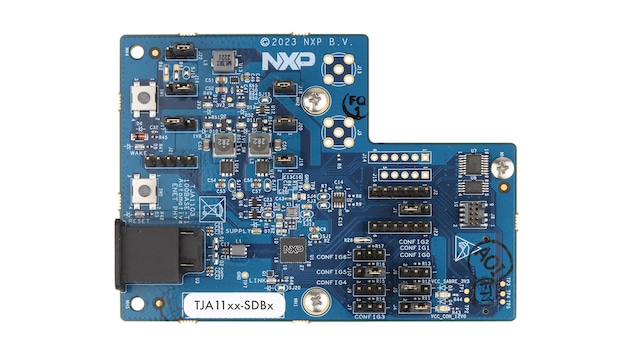

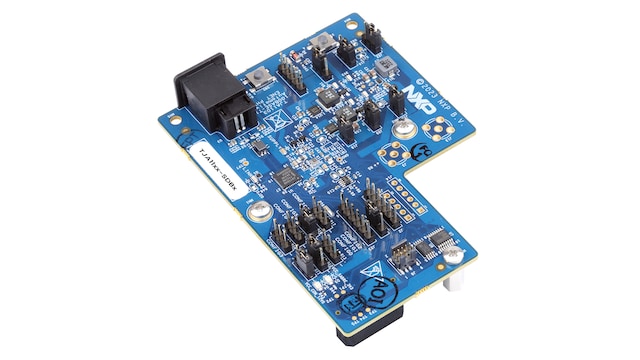

The TJA11xx-SDBx SABRE development boards are purpose-built tools to evaluate the SGMII and RGMII. From the naming convention, TJA11xx-SDBR and TJA11xx-SDBS include RGMII and SGMII, respectively.

To enable quick application prototyping, various NXP system development boards feature the common SABRE connector; for example, our latest radar SoCs.

These boards represent a reference design for scaling from 100 to 1000BASE-T1 with or without MACsec within our PHY family. The same board can be ordered with TJA1103, TJA1104, TJA1120 or TJA1121.

It is important to note that with the help of SABRE connector TJA11xx-SDBx board can smoothly interface with S32K and S32G µP/µC evaluation boards.

Block Diagram

TJA11xx-SDBx

TJA11xx-SDBx Block Diagram
Get diagram PDF

Supported Devices

Interfaces

Automotive Ethernet PHYs

  • TJA1103: TJA1103, ASIL B Compliant Automotive Ethernet 100BASE-T1 PHY Transceiver
  • TJA1104: TJA1104, MACsec Enabled ASIL B Compliant Automotive Ethernet 100BASE-T1 PHY Transceiver
  • TJA1120: TJA1120, ASIL B Compliant Automotive Ethernet 1000BASE-T1 PHY Transceiver
  • TJA1121: TJA1121, MACsec Enabled ASIL B Compliant Automotive Ethernet 1000BASE-T1 PHY Transceiver

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K3: S32K3 Microcontrollers for Automotive General Purpose

S32G Vehicle Network Processors

  • S32G3: S32G3 Processors for Vehicle Networking
  • S32G2: S32G2 Processors for Vehicle Networking

S32Z and S32E Real-Time Processors

  • S32Z2: S32Z2 Safe and Secure High-Performance Real-Time Processors

Features

Connectivity

  • 100BASE-T1 and 1000BASE-T1 automotive ethernet

General Specifications

  • Quick functional evaluation of TJA1103, TJA1104, TJA1120 and TJA1121
  • Supports MII/RMII/RGMII (PN ending with R)
  • Supports SGMII (PN ending with S)
  • SMA and JTAG connectors
  • Voltage and current tap points
  • Control signals are accessible via pin headers
  • Configurable pin strapping jumper settings
  • Control signals for inhibit and wake in/out
  • Multiple supply options

Buy Options

TJA1104-SDBS-Image

Click to expand

  • TJA1104-SDBS
    Active

  • SABRE Development Board for TJA1104 (SGMII) PHY.

  • Kit contains:

    • Assembled and tested TJA1104-SDBS evaluation board in an antistatic bag
    • Cable: UTP with 2x MateNET connectors

    Note: An NDA is required in order to access the TJA11xx-SDBx documentation.

  • $212.30 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 19
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
TJA1104-SDBR-Image

Click to expand

  • TJA1104-SDBR
    Active

  • SABRE Development Board for TJA1104 (RGMII) PHY.

  • Kit contains:

    • Assembled and tested TJA1104-SDBR evaluation board in an antistatic bag
    • Cable: UTP with 2x MateNET connectors

    Note: An NDA is required in order to access the TJA11xx-SDBx documentation.

  • $210.92 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
TJA1120-SDBS-Image

Click to expand

  • TJA1120-SDBS
    Active

  • SABRE Development Board for TJA1120 (SGMII) PHY.

  • Kit contains:

    • Assembled and tested TJA1120-SDBS evaluation board in an antistatic bag
    • Cable: UTP with 2x MateNET connectors

    Note: An NDA is required in order to access the TJA11xx-SDBx documentation.

  • $212.30 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
TJA1120-SDBR-Image

Click to expand

  • TJA1120-SDBR
    Active

  • SABRE Development Board for TJA1120 (RGMII) PHY.

  • Kit contains:

    • Assembled and tested TJA1120-SDBR evaluation board in an antistatic bag
    • Cable: UTP with 2x MateNET connectors

    Note: An NDA is required in order to access the TJA11xx-SDBx documentation.

  • $210.92 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
TJA1103-SDBS-Image

Click to expand

  • TJA1103-SDBS
    Active

  • SABRE Development Boards for TJA11xx PHYs.

  • Kit contains:

    • Assembled and tested TJA1103-SDBS evaluation board in an antistatic bag
    • Cable: UTP with 2x MateNET connectors
  • $212.30 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
