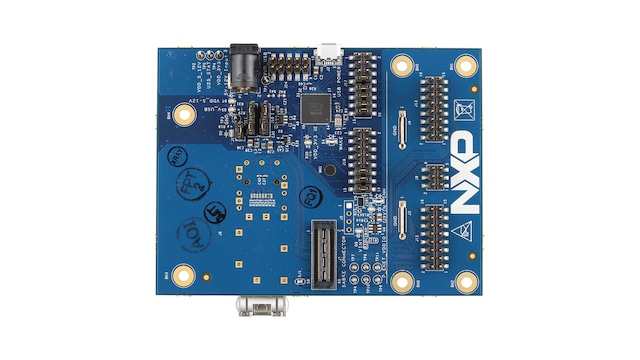

Evaluation Baseboard for TJA11xx PHYs

TJA11xx-EVB

Roll over image to zoom in

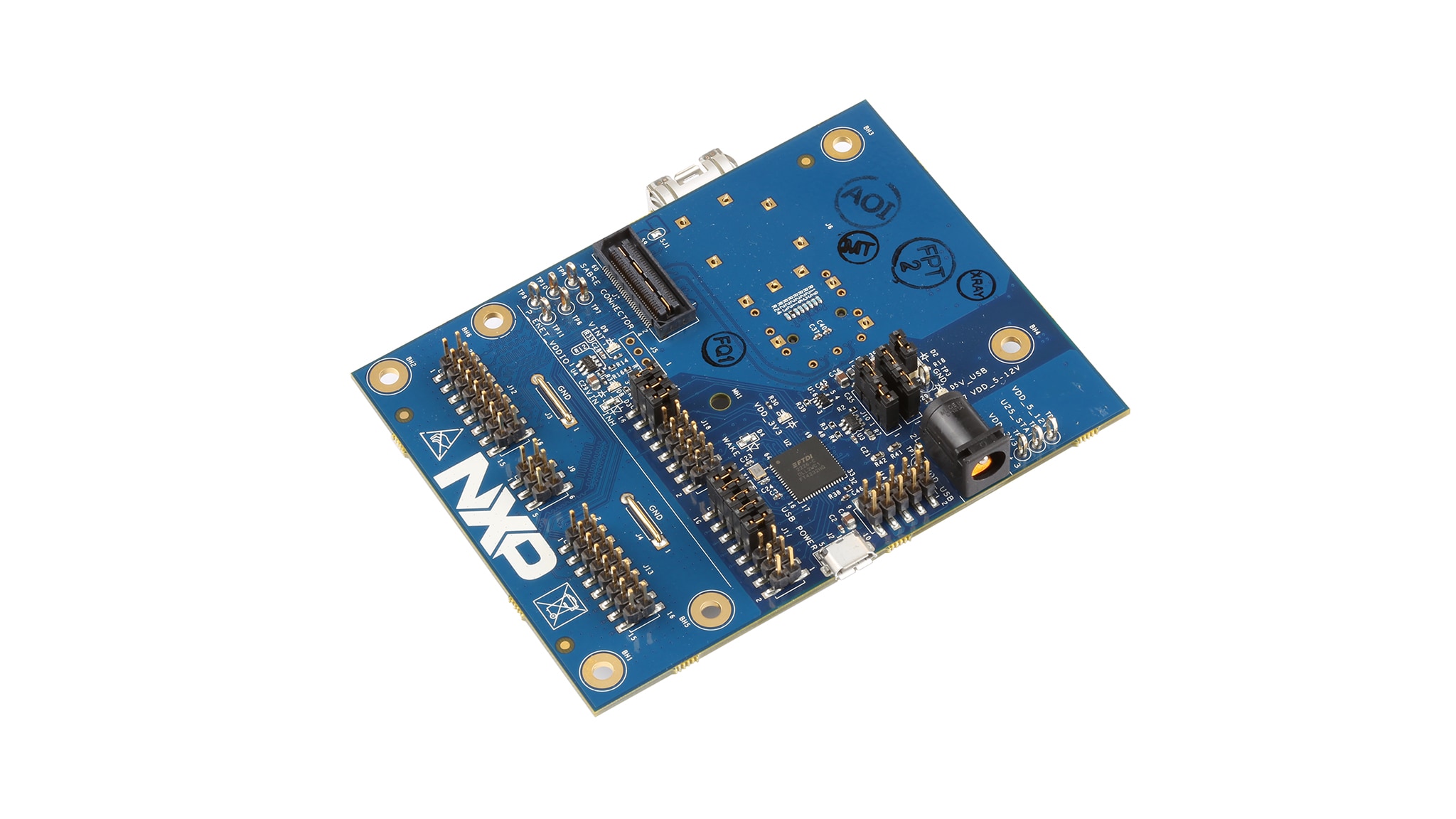

The TJA11xx-EVB board acts as a hardware evaluation baseboard for 100BASE-T1 or 1000BASE-T1 PHYs. The evaluation board is designed to be a breakout board that can be used as host board for TJA1104 / TJA1120 SABRE daughter boards. Moreover, the EVB allows access to all relevant signals that the baseboard exposes on the SABRE connector and also provides power to the SABRE daughter board.

Block Diagram

TJA11xx-EVB

TJA11xx-EVB Block Diagram
Get diagram PDF

Supported Devices

Interfaces

Automotive Ethernet PHYs

  • TJA1104: TJA1104, MACsec Enabled ASIL B Compliant Automotive Ethernet 100BASE-T1 PHY Transceiver
  • TJA1120: TJA1120, ASIL B Compliant Automotive Ethernet 1000BASE-T1 PHY Transceiver
  • TJA1121: TJA1121, MACsec Enabled ASIL B Compliant Automotive Ethernet 1000BASE-T1 PHY Transceiver

Features

General Specifications

  • Includes supply line connections on board
  • Evaluation of hardware pinstrapping options on the expansion board
  • LEDs to indicate supply status and PHY signals
  • Several supply options can be configured - with external supplies, all possible options can be evaluated
  • All signals accessible via pinheaders
  • CMOS xMII interface accessible via pinheader

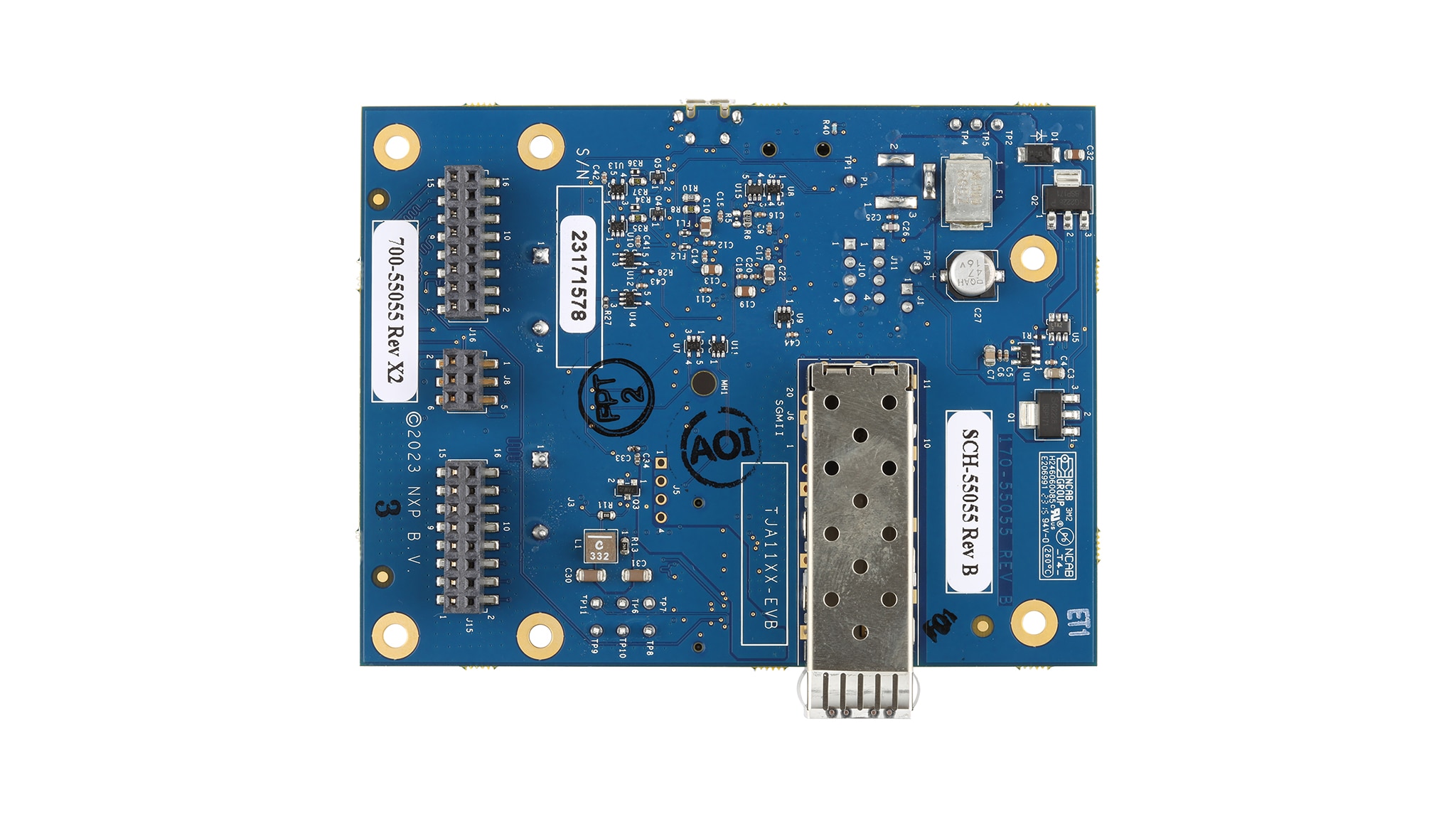

  • SGMII interface accessible via SFP cage
  • JTAG connection accessible
  • SMI accessible in several different modes including via USB

Connectivity

  • 100BASE-T1 or 1000BASE-T1 automotive ethernet
  • The entire board can powered via USB
  • SMI access via USB is possible. Software support is provided in the form of a GUI-tool and a python API
  • SMI+xMII pinheaders are placed in such a way that 2 boards can be connected back-to-back
  • All serial interfaces supported by the sabre specification are accessible via USB (SPI, I²C, SMI)
  • Unused pins on the USB-to-GPIO IC are brought to pinheaders and can be used for custom functions
  • Supplies routed to the sabre daughter expansion can be switched via enable signals

Buy Options

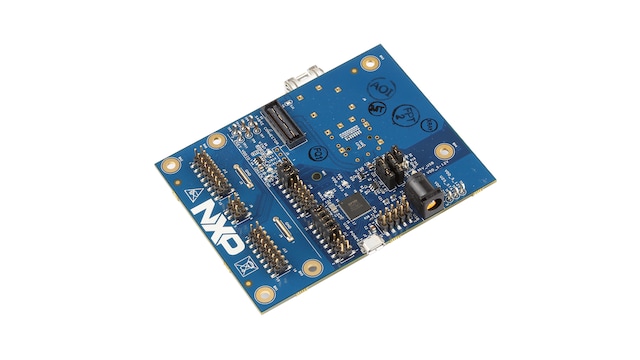

TJA11XX-EVB-Image

Click to expand

  • TJA11XX-EVB
    Active

  • Evaluation Baseboard for TJA11xx PHYs.

  • Each order will be reviewed prior to being fulfilled.
    We apologize for any experienced inconvenience as a result of this approval process.

    Kit contains:

    • 1x TJA11xx customer evaluation baseboard
    • 1x Unshielded twisted pair (UTP) cable (Automotive grade)

    Note: An NDA is required in order to access the TJA11xxEVB documentation.

  • $210.92 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 19
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
N true 0 TSPTJA11xx-EVBen 2 Fact Sheet Fact Sheet t523 1 User Guide User Guide t792 1 en_US en_US 1 1 English Getting Started with the TJA11xx-EVB Evaluation Board 1715871828656704027778 Y 1715871828656704027778 GS-TJA11xx-EVB GS-TJA11xx-EVB /document/guide/getting-started-with-the-tja11xx-evb-evaluation-board:GS-TJA11xx-EVB HTML 0 2024-05-16 GS-TJA11xx-EVB TSP User Guide 132339537837198660 2025-01-21 en May 14, 2024 User Guide t792 User Guide User Guide Y Getting Started with the TJA11xx-EVB Evaluation Board false en Fact Sheet Fact Sheet 1 2 0 English TJA1104 is the first MACsec enabled product of NXP’s successful family of 100BASE-T1 Automotive Ethernet PHYs. It addresses the security concerns for future networks and provides an efficient HW based solution with MACsec. 1686150257419698300450 TSP 254.8 KB None None documents None 1686150257419698300450 /docs/en/fact-sheet/TJA1104FS.pdf 254760 /docs/en/fact-sheet/TJA1104FS.pdf TJA1104FS documents N N 2023-06-07 TJA1104: MACsec Enabled and ASIL B Compliant 100BASE-T1 Ethernet PHY Fact Sheet /docs/en/fact-sheet/TJA1104FS.pdf /docs/en/fact-sheet/TJA1104FS.pdf Fact Sheet N 736675474163315314 2024-05-22 pdf N en May 3, 2024 736675474163315314 Fact Sheet Y N TJA1104: MACsec Enabled and ASIL B Compliant 100BASE-T1 Ethernet PHY Fact Sheet false 0 TJA11xx-EVB downloads en true 0 Y TSP Y Y Fact Sheet 1 /docs/en/fact-sheet/TJA1104FS.pdf 2023-06-07 1686150257419698300450 TSP 2 May 3, 2024 Fact Sheet TJA1104 is the first MACsec enabled product of NXP’s successful family of 100BASE-T1 Automotive Ethernet PHYs. It addresses the security concerns for future networks and provides an efficient HW based solution with MACsec. None /docs/en/fact-sheet/TJA1104FS.pdf English documents 254760 None 736675474163315314 2024-05-22 N /docs/en/fact-sheet/TJA1104FS.pdf TJA1104: MACsec Enabled and ASIL B Compliant 100BASE-T1 Ethernet PHY Fact Sheet /docs/en/fact-sheet/TJA1104FS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 0 N N TJA1104: MACsec Enabled and ASIL B Compliant 100BASE-T1 Ethernet PHY Fact Sheet 254.8 KB TJA1104FS N 1686150257419698300450 User Guide 1 2024-05-16 1715871828656704027778 1 May 14, 2024 User Guide User Guide Getting Started with the TJA11xx-EVB Evaluation Board Y GS-TJA11xx-EVB English 0 User Guide 2025-01-21 /document/guide/getting-started-with-the-tja11xx-evb-evaluation-board:GS-TJA11xx-EVB Getting Started with the TJA11xx-EVB Evaluation Board GS-TJA11xx-EVB TSP 132339537837198660 User Guide en Y t792 HTML GS-TJA11xx-EVB 1715871828656704027778 true Y Tools

Documentation

Quick reference to our documentation types.

Filters

2 documents

Compact List

Related Hardware

Quick reference to our board types.
Filters

2 hardware offerings

Design Files

Quick reference to our design files types.
Filters

2 design files

Software

Quick reference to our software types.

Filters

2 software files

  • BSPs and Device Drivers

    TJA11xx Linux driver for IEEE 802.3 Clause 45 managed PHYs

    EXTERNAL FILERev 0.1Nov 24, 2021TJA11XX-LINUX-DRIVER
    Download
  • BSPs and Device Drivers

    XJA11XX Ethernet Phy Real-Time Drivers AUTOSAR 4.4 (ISO26262) License

    FLEXERARev 1.0.7Dec 20, 20241 KBSWXJA11XX-SEPHY44D
    Download
