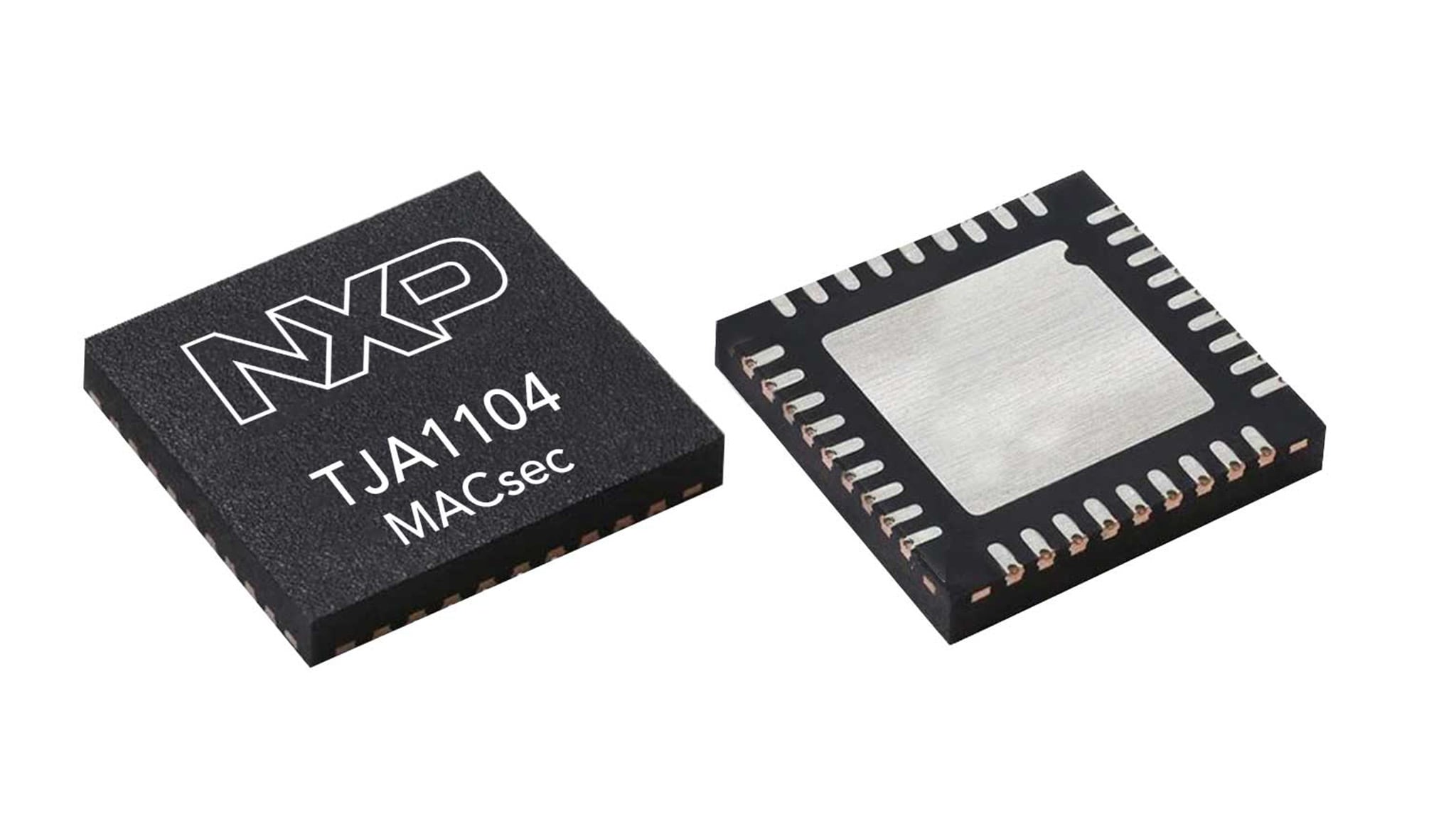

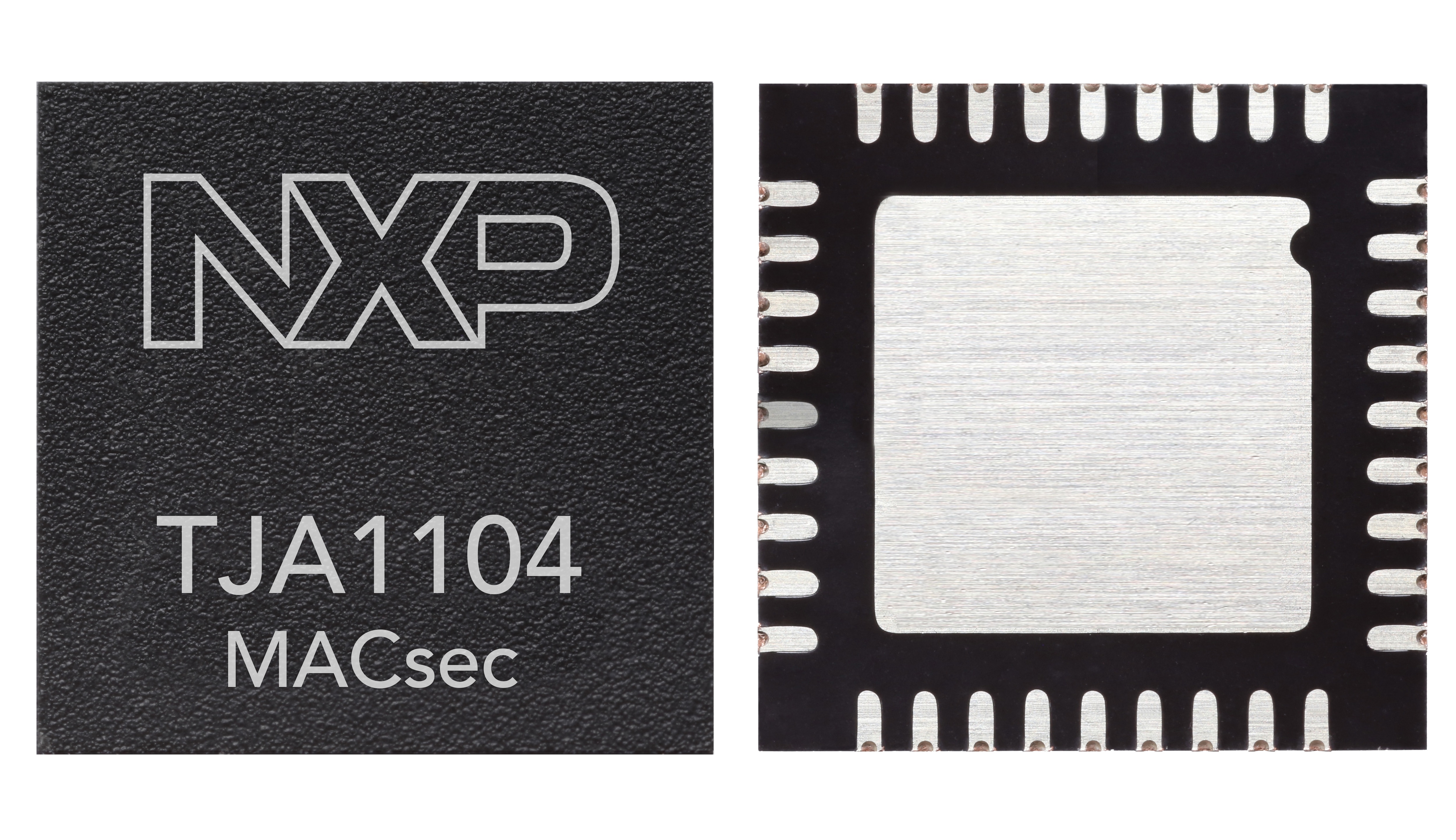

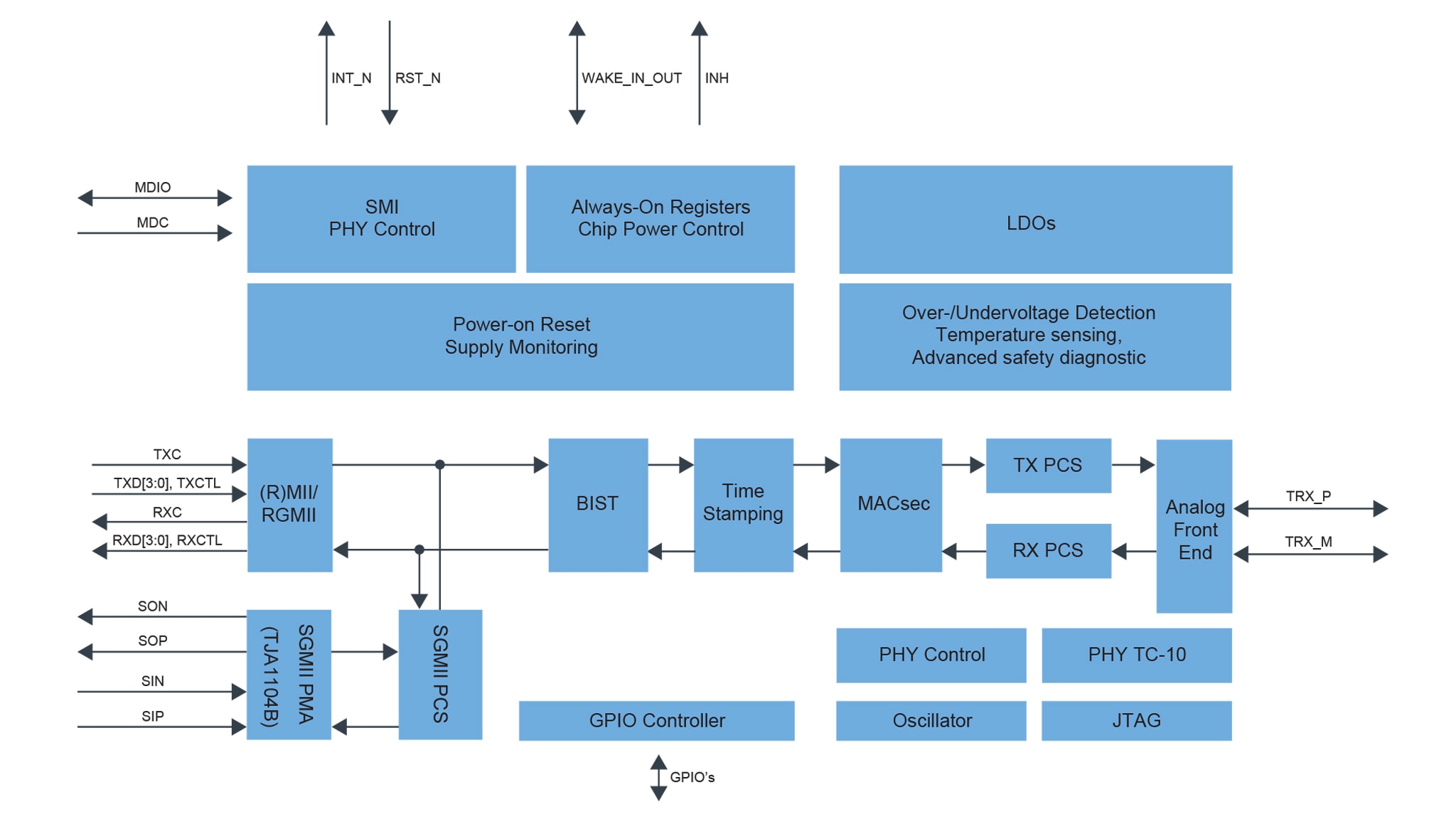

TJA1104, MACsec Enabled ASIL B Compliant Automotive Ethernet 100BASE-T1 PHY Transceiver
TJA1104 is the first MACsec enabled product of NXP’s successful family of 100BASE-T1 Automotive Ethernet PHYs. It addresses the security concerns for future networks and provides an efficient HW based solution with MACsec. To enable scalable platform designs TJA1104 is drop-in compatible with TJA1103 and TJA1120.
TJA1104 complies with all state-of-the-art conformance test specifications and is designed according to ISO 26262 to meet ASIL B, providing enhanced monitoring and diagnostic features. Further, it integrates OPEN Alliance TC-10 compliant wake-up forwarding over the Ethernet data line.
Product Details
Features
Key Features
- IEEE 802.1AE-2018 MACsec at full wireline performance
- Functional safety ISO 26262 ASIL B compliant
- IEEE802.3bw compliant 100BASE-T1 PHY
- OPEN Alliance TC-1 advanced PHY features
- IEEE1588v2 / 802.1AS compliant time stamping
- OPEN Alliance TC-10 compliant sleep / wake up
- Single supply capability
- HVQFN36 (6 x 6 mm) with wettable flanks
- Optimized for automotive use cases
- Includes startup self test
- Compliant to AEC-Q100 Grade 1
Scalability
- Drop-in compatible with TJA1103
- Drop-in compatible with TJA1120
- Enables optimized platform designs
Important Information
- TJA1104 silicon, documentation and software are available for selected NDA customers only. For additional information please contact support or your local sales representative
Product Longevity Program
- This product is included in the NXP Product Longevity program with assured supply for a minimum of 15 years after launch
