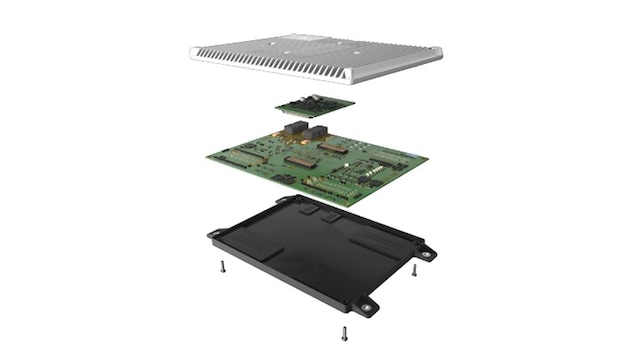

Modular Zone Controller Reference Design
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.
Zone controllers are a key part of next-generation electric and electronic (E/E) architectures in vehicles, allowing the integration of end-node functionalities into fewer electronic control units (ECUs).
This automotive-grade reference design enables a zone controller implementation through streamlined evaluation of key component features and a flexible joint development model that allows automakers to focus purely on their differentiating software while optimizing the vehicle BOM.
This reference design is offering system-level performance indicators on power, wake-up, latency and performance, among others, for quick evaluation and fast time to market.
Product Details
Supported Devices
Processors and Microcontrollers
S32K Auto General-Purpose MCUs
- S32K5: S32K5 Automotive Microcontrollers
Interfaces
Automotive LIN Solutions
- TJA1124: Quad LIN Commander Transceiver for In-Vehicle Subnetworks
Automotive Ethernet PHYs
Automotive Ethernet Switches and Network Controllers
- S32J100: S32J100 High-Performance Ethernet Switch and Network Controller
FlexRay Transceivers
- TJA1081B: FlexRay™ Node Transceiver - Clamp 30
CAN Signal Improvement
- TJA1462: CAN Signal Improvement Capability Transceiver with Standby Mode
Multi-Switch Detection Interface
- MC33978: 22 I/O MSDI Programmable Current Analog Mux
Features
- Latest semiconductor innovations and cost-performance optimized chipsets
- Customizable, scalable design-to-cost hardware for unique customer needs
- Excellent ramp-up expertise and ready for next-generation vehicles
- Automotive-grade design and production quality
- Pre-integrated NXP's CoreRide Platform Software and partner ECU system
