SJA1110 Ethernet Switch Multi-Gig Secure Evaluation Board
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

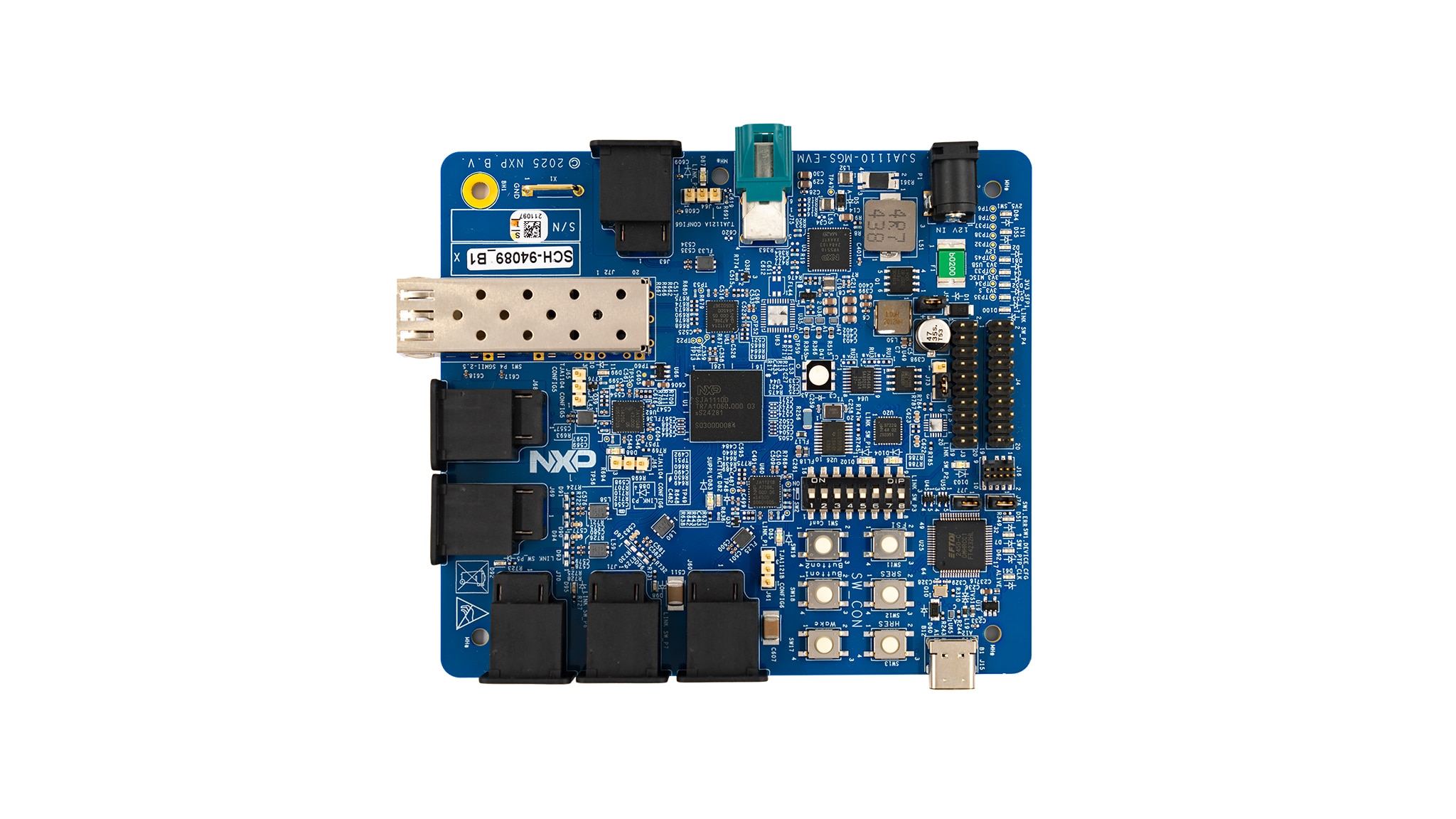

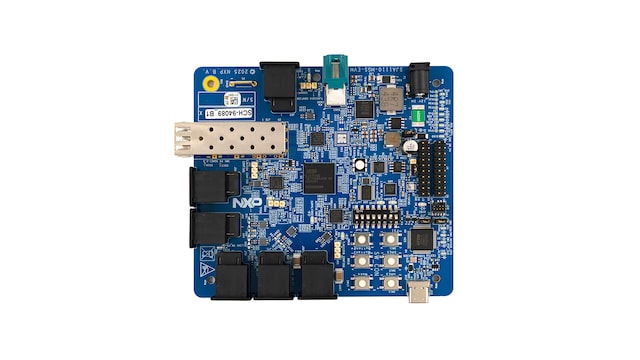

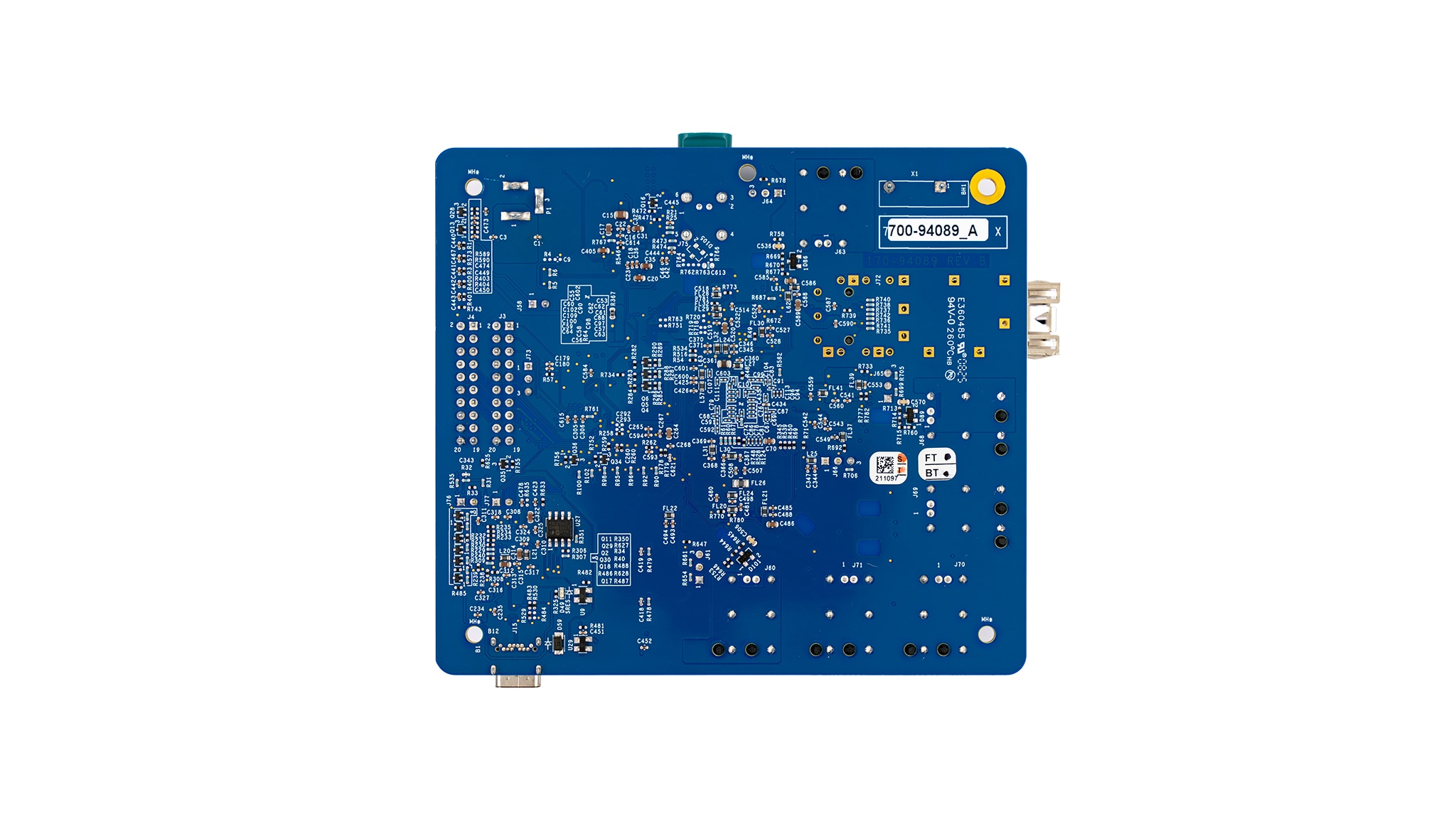

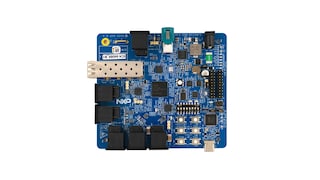

The SJA1110-MGS-EVM is a compact, cost-effective multi-gig secure evaluation board, ideal for automotive Ethernet use cases. Consisting of the SJA1110 switch along with TJA1121 and TJA1104 PHYs, the board demonstrates MACsec security on both PHYs and enables rapid prototyping with integrated software examples based on Real-Time Drivers (RTDs).
Product Details
Supported Devices
Features
Hardware Features
- Secure variant of SJA1110 switch
- 100BASE-T1 (SJA1110 internal PHYs)
- 1x 100BASE-T1 Ethernet port using the TJA1104 automotive Ethernet PHY
- 2x 1000BASE-T1 Ethernet port using the TJA1121 automotive Ethernet PHY
- 1x SFP+ cage
- JTAG connector
- Several LEDs for status indication
- DIP switches for easy configuration
- USB-C connector for SPI access
- Power supply based on VR5510 PMIC
Software Features
- Software examples based on Real-Time Drivers (RTDs)
- gPTP software stack
- TCP/IP software stack
