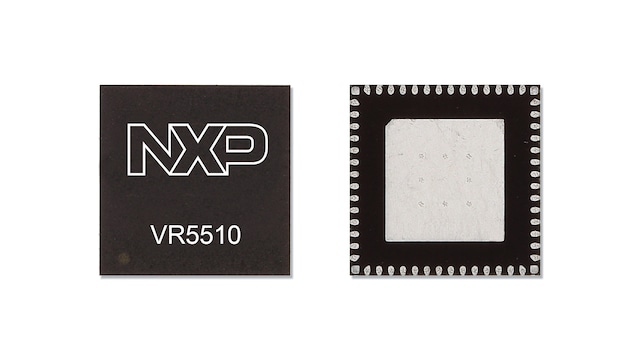

The VR5510 is NXP’s multi-channel high-voltage PMIC device designed to be used for high performance automotive and industrial applications. The VR5510 is designed specifically for the S32G vehicle network processor family targeting service-oriented gateways, domain controllers, and safety controller applications.
Integrated and independent voltage monitoring circuits ensure compliance with ISO 26262 standard and functional safety up to ASIL D level. The VR5510 is also available as a standard ASIL B device or a non-safety device for applications that have different ISO compliance requirements.
The VR5510 is also suitable for a variety of applications including infotainment, ADAS, vision, and radar either as a standalone power solution or in combination with other NXP PMICs like PF502x family or PF8x family.
| Part number | Processor | Memory | Reference design | OTP Files and Report | Safety Grade |
|---|---|---|---|---|---|
| MVR5510AMDA0ES | N/A | Non-programmed | N/A | N/A | ASIL D |
| MVR5510AMBA0ES | N/A | Non-programmed | N/A | N/A | ASIL B |
| MVR5510AMMA0ES | N/A | Non-programmed | N/A | N/A | QM |
| MVR5510AMDA4ES | S32G2 | LPDDR4 Memory | S32G-VNP-RDB | DA4 Report, programming and configuration files | ASIL D |
| MVR5510AMBA4ES | LPDDR4 Memory | S32G-VNP-RDB | BA4 Report, programming and configuration files | ASIL B | |
| MVR5510AMMA4ES | LPDDR4 Memory | N/A | MA4 Report, programming and configuration files | QM | |
| MVR5510AMDAHES | LPDDR4 Memory | S32G-VNP-RDB2 | DAH Report, programming and configuration files | ASIL D | |
| MVR5510AMBAHES | LPDDR4 Memory | S32G-VNP-RDB2 | BA4 Report, programming and configuration files | ASIL B | |
| MVR5510AMMAHES | LPDDR4 Memory | N/A | MAH Report, programming and configuration files | QM | |
| MVR5510AMDA6ES | DDR3L Memory | N/A | DA6 Report, programming and configuration files | ASIL D | |
| MVR5510AMBA6ES | DDR3L Memory | N/A | BA6 Report, programming and configuration files | ASIL B | |
| MVR5510AMMA6ES | DDR3L Memory | N/A | MA6 Report, programming and configuration files | QM | |
| MVR5510AMDALES | S32G3 | LPDDR4 Memory | S32G-VNP-RDB3
S32-VNP-EVB3 |
DAL Report, programming and configuration files | ASIL D |
| MVR5510AMBALES | LPDDR4 Memory | N/A | BAL Report, programming and configuration files | ASIL B | |
| MVR5510AMMALES | LPDDR4 Memory | N/A | MAL Report, programming and configuration files | QM | |
| MVR5510AMDANES | DDR3L Memory | N/A | DAN Report, programming and configuration files | ASIL D | |
| MVR5510AMBANES | DDR3L Memory | N/A | BAN Report, programming and configuration files | ASIL B | |
| MVR5510AMMANES | DDR3L Memory | N/A | MAN Report, programming and configuration files | QM |
| Part number | Processor | Memory | Reference design | OTP Files and Report | Safety Grade |
|---|---|---|---|---|---|
| MVR5510AVMA0EP | S32G2 | Non-programmed | N/A | N/A | QM |
| MVR5510AVMA4EP | LPDDR4 Memory | N/A | MA4 Report, programming and configuration files | ||
| MVR5510AVMAHEP | LPDDR4 Memory | N/A | MAH Report, programming and configuration files | ||
| MVR5510AVMA6EP | DDR3L Memory | N/A | MA6 Report, programming and configuration files | ||
| MVR5510AVMALEP | S32G3 | LPDDR4 Memory | N/A | MAL Report, programming and configuration files | |
| MVR5510AVMANEP | DDR3L Memory | N/A | MAN Report, programming and configuration files |
This platform facilitates the design of safe power management systems thanks to a portfolio of configurable and linkable devices. It simplifies complex power supply subsystems into a single smart solution.
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
| | | | | |
|---|---|---|---|---|---|
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
