Programming Socket Board for VR5510 PMIC

KITVR5510SKTEVM Active

Roll over image to zoom in

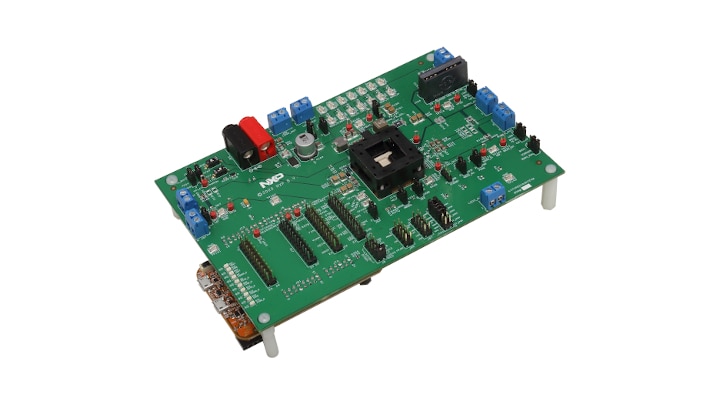

The KITVR5510SKTEVM is a programming board featuring a 56-pin QFN socket for VR5510 PMIC. The kit integrates all hardware needed to program the OTP registers in the PMIC. It integrates a communication bridge based on the FRDM-K82F.

Supported Devices

Power Management

System Basis Chips

  • VR5510: Multi-Channel (9) PMIC for S32G Processor – 8 High Power, 1 Low Power, Fit for ASIL D Safety Level

Features

Programming Socket

  • Clamshell 56-pin QFN socket

System Features

  • 12 V operating input voltage range
  • USB to I2C communication via the FRDM-KL25Z interface
  • Up to 3.0 MHz I2C communication
  • Selectable hardwire default PMIC configuration or Debug mode
  • Selectable operation mode (Normal/Standby mode)
  • Advance system monitoring/diagnostic via PMIC and/or system AMUX
  • Onboard I/O regulator with 1.8 V/3.3 V selectable output voltage

Buy Options

KITVR5510SKTEVM-Image

Click to expand

  • KITVR5510SKTEVM
    Active

  • Programming Socket Board for VR5510 PMIC.

  • Kit Contains

    • Assembled and tested KITVR5510SKTEVM and preprogrammed FRDM-K82F microcontroller board in an anti-static bag
    • USB-STD A to USB-B-micro cable
    • Packing list
  • $427.80 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
