Evaluation Board for VR5510

KITVR5510XA0EVM Active

Roll over image to zoom in

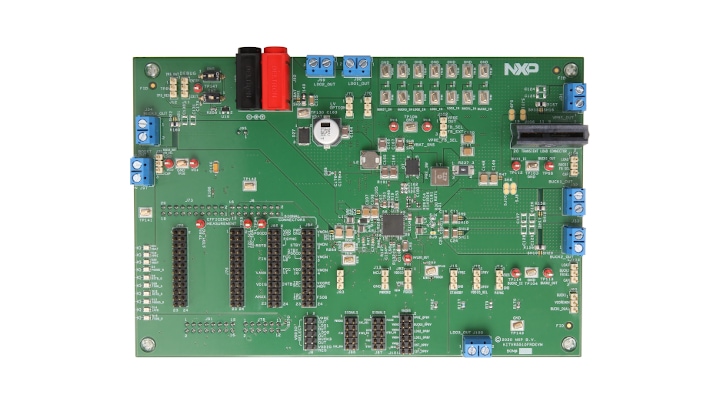

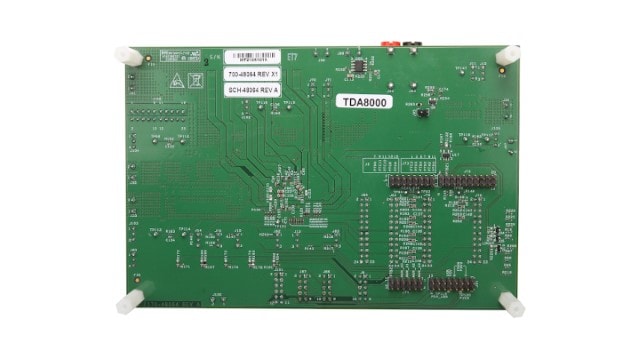

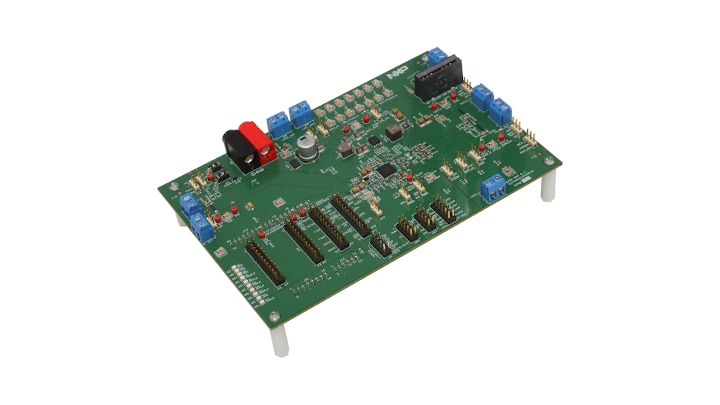

The KITVR5510xA0EVM is the customer evaluation board featuring the VR5510 power management IC. The kit integrates all hardware needed to fully evaluate the featured power management integrated circuit. It integrates a communication bridge based on the FRDM-K82F freedom board to interface with the VR5510 GUI software interface and fully configure and control the VR5510 PMIC.

We offer 3 kits versions: KITVR5510DA0EVM, KITVR5510BA0EVM, KITVR5510MA0EVM.

Supported Devices

Power Management

System Basis Chips

  • VR5510: Multi-Channel (9) PMIC for S32G Processor – 8 High Power, 1 Low Power, Fit for ASIL D Safety Level

Features

System Features

  • 12 V operating input voltage range
  • USB to I²C communication via the FRDM-KL25Z interface
  • Up to 3.0 MHz I²C communication
  • Selectable hardwire default PMIC configuration or Debug mode
  • Selectable operation mode (Normal/Standby mode)
  • Advance system monitoring/diagnostic via PMIC and/or system AMUX
  • Onboard I/O regulator with 1.8 V/3.3 V selectable output voltage

Buy Options

KITVR5510DA0EVM-Image

Click to expand

  • KITVR5510DA0EVM
    Active

  • Evaluation Board for VR5510.

  • Kit Contains

    • Assembled and tested ASILD EVM and preprogrammed FRDM-K82F microcontroller board in an anti-static bag
    • USB-STD A to USB-B-micro cable
    • Packing list
  • $289.80 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 9
    • Shipping: Normally ships 1-2 business days
ADD TO CART
