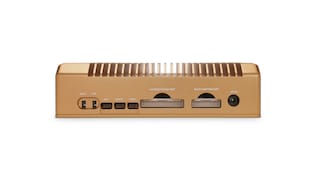

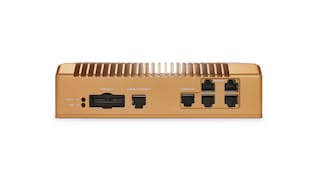

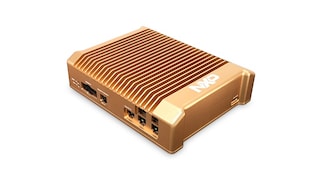

GoldBox for Vehicle Networking Development Platform

GOLDBOX

Roll over image to zoom in

The NXP GoldBox is a compact, highly optimized and integrated reference design engineered for vehicle service-oriented gateway (SoG), domain control applications, high-performance processing, safety and security applications.

The NXP GoldBox offers high-performance computing capacity, real-time network performance, multi-Gigabit packet acceleration and security, as well as rich input/output (I/O) targeting central gateway, domain controller, FOTA, secure key management, smart antenna and high-performance central compute nodes.

Block Diagram

S32G2 Vehicle Networking Reference Design System Architecture

NXP GoldBox for Vehicle Networking system architecture
Get diagram PDF

Supported Devices

Interfaces

Automotive Ethernet Switches and Network Controllers

  • SJA1110: Multi-Gig Safe and Secure TSN Ethernet Switch with Integrated 100BASE-T1 PHYs

Automotive Ethernet PHYs

  • TJA1102A: TJA1102A/TJA1102AS, Dual/Single Port Automotive Ethernet 100BASE-T1 PHY Transceiver
  • TJA1101: TJA1101B, IEEE 100BASE-T1 Compliant Automotive Ethernet PHY Transceiver

3.3 V / 5 V IO CAN Transceivers

  • TJA1043: High-Speed CAN Transceiver with Standby and Sleep Mode

CAN Signal Improvement

  • TJA1463: CAN Signal Improvement Capability Transceiver with Sleep Mode

Secure CAN Transceivers

  • TJA1153: Secure HS-CAN Transceiver with Sleep Mode

Power Management

System Basis Chips

  • VR5510: Multi-Channel (9) PMIC for S32G Processor – 8 High Power, 1 Low Power, Fit for ASIL D Safety Level

Processors and Microcontrollers

S32G Vehicle Network Processors

  • S32G2: S32G2 Processors for Vehicle Networking

Features

GoldBox Features

  • Supports service-oriented gateway and domain controller applications
  • Multiple network interfaces, featuring 18 CAN/CAN FD and 12 Ethernet ports
  • Supports low-power mode and multiple wake-up sources
  • Supports two M.2 modules (M-key slot, E-key slot)
  • ISO 26262 support by using safety components and architecture

Buy Options

S32G-VNP-GLDBOX-Image

Click to expand

  • S32G-VNP-GLDBOX
    Active

  • GoldBox for Vehicle Networking Development Platform.

  • Kit contains

    • Rugged enclosure with integrated thermal management
    • S32G-VNP-RDB2
    • Universal AC adapter
    • AC/DC 12 V, 6.67A power supply
    • 16 GB SD Card
    • DuPont Line
    • (2) USB A-to-Micro B cables (UART0/1)
    • Ethernet and Ethernet Loopback cables
    • 100BASE-T1 Ethernet cable
    • J5 cable (LIN/ADC) and J6 cable (CAN/FlexRay)
    • (4) Heatsinks
    • (4) Thermal Pads
    • M2 Screws
  • For a quantity of 1
