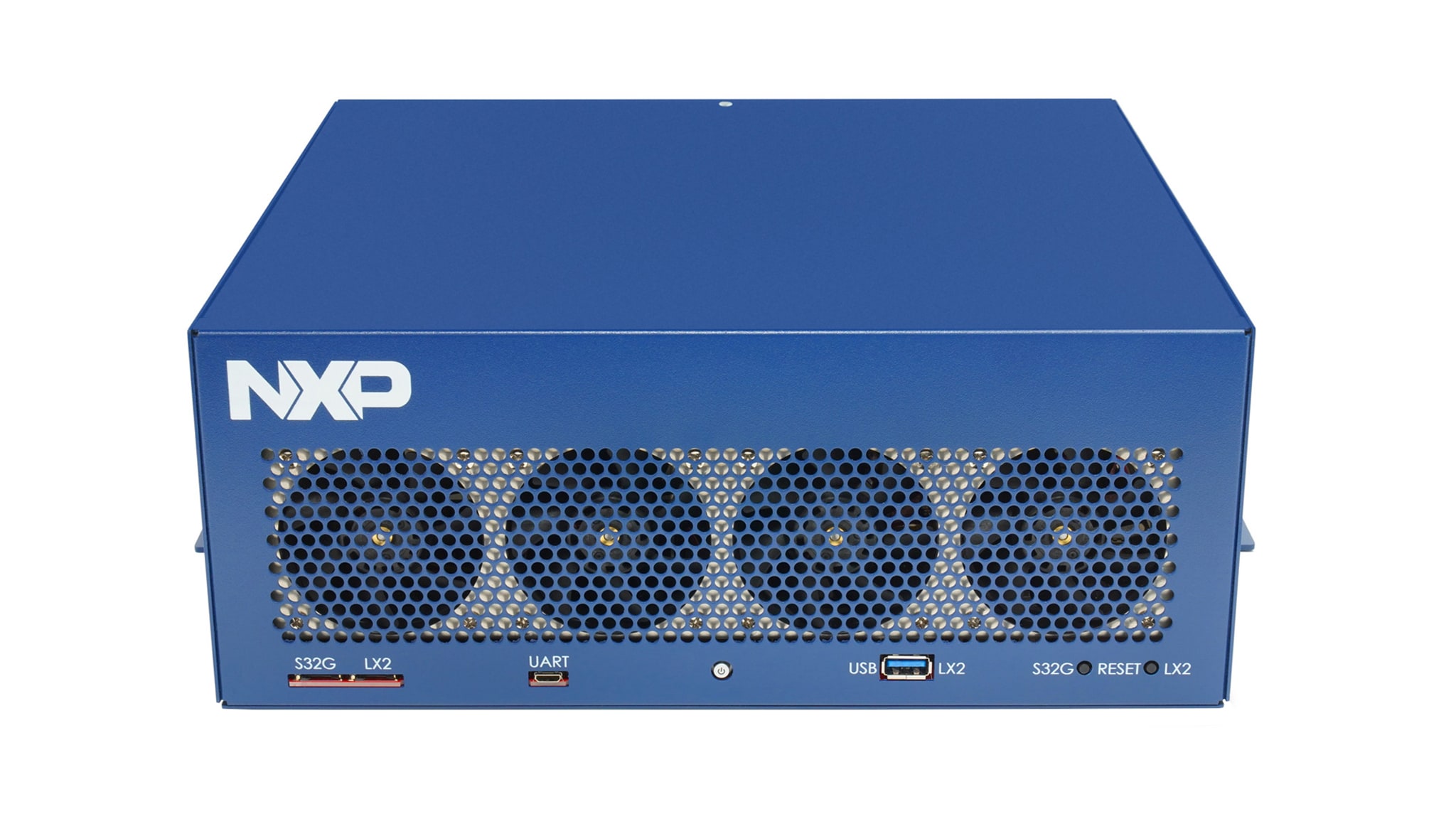

BlueBox 3.0 Automotive High-Performance Compute (AHPC) Development Platform

BlueBox Not Recommended for New Designs
  • The BlueBox development platform is not available for new projects.

Roll over image to zoom in

The NXP BlueBox development platform provides the necessary performance and functional safety features to build both zonal architectures and high-performance computing systems. BlueBox enables the analyzation of driving environments, including risk factors, for software-defined vehicles and directs the behavior of self-driving cars.

BlueBox 3 family is the latest addition to the series, which incorporates the the Layerscape® LX2160A embedded processor. The LX2160A is pair with the ASIL D ready S32G2 vehicle network processor for automotive service-oriented gateway, domain controller, safety co-processor and expansion options to include additional perception and acceleration solutions.

Supported Devices

Processors and Microcontrollers

Layerscape Processors

  • LS2084A: Layerscape 2084A and 2044A Multicore Processors
  • LX2160A: Layerscape® LX2160A, LX2120A, LX2080A Processors

S32G Vehicle Network Processors

  • S32G2: S32G2 Processors for Vehicle Networking

Interfaces

Automotive Ethernet Switches and Network Controllers

  • SJA1110: Multi-Gig Safe and Secure TSN Ethernet Switch with Integrated 100BASE-T1 PHYs

Features

BlueBox 3.0 Features

  • True automotive embedded platform featuring end-to-end automotive-grade system-on-chip ICs

  • Modular and scalable open platform supporting rich expansion options to prototype various configurations and connections to multiple ECUs and sensors:
    • Up to 6 PCIe® expansion slots
    • Up to 8 Ethernet ports

  • System-level safety implementation with the device-level safety collaterals:
    • ASIL D subsystem, with dedicated interfaces
    • ASIL B compute, automotive interfaces with vision acceleration

  • S32G274A vehicle network processor with ASIL D functional safety
  • High-performance LX2160A automotive processor with 16 Arm® Cortex®-A72 cores
  • SJA1110 automotive Ethernet switch with TSN support

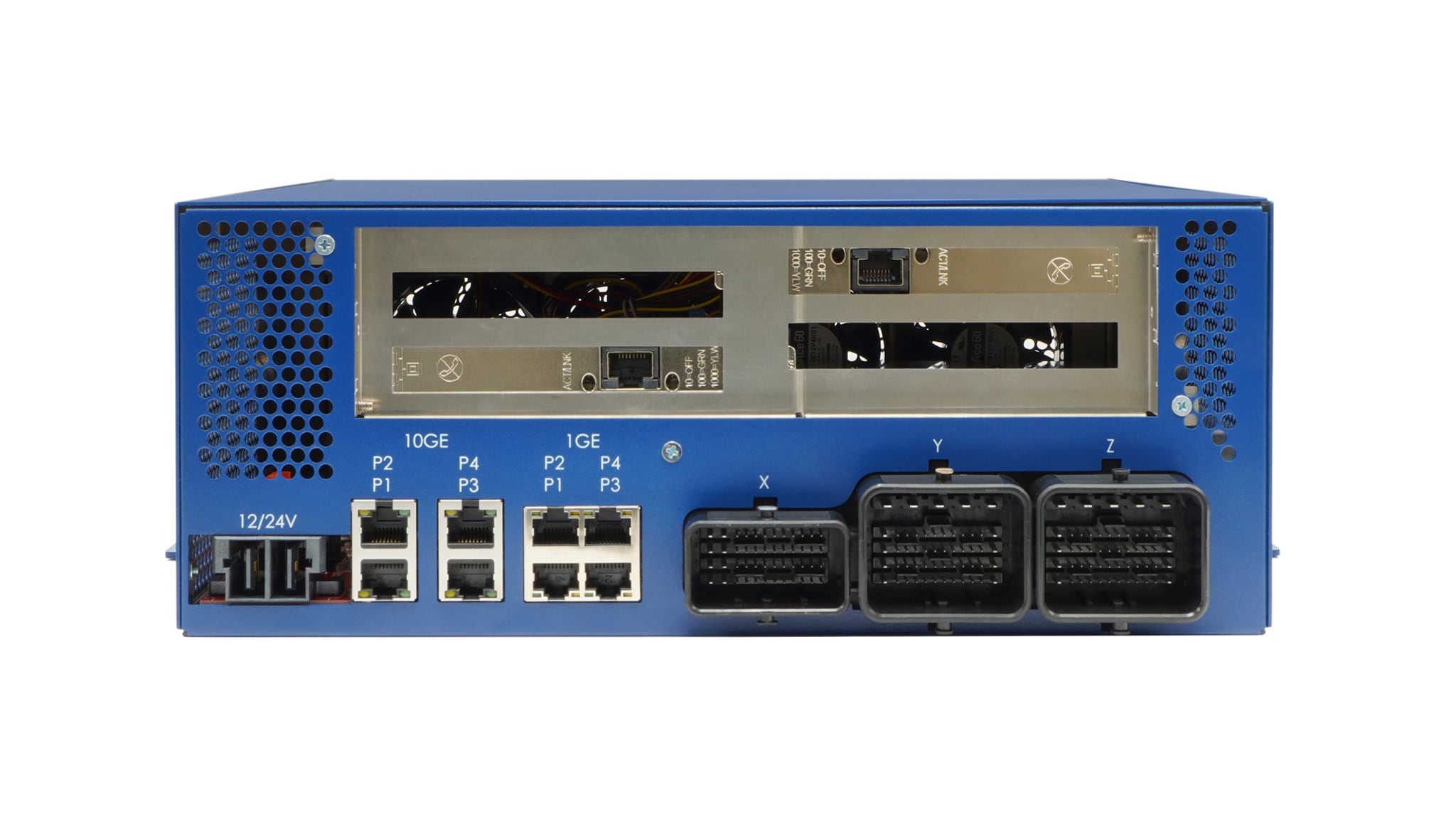

  • 12 V / 24 V vehicle compatible power input
  • 16 GB DDR4 and 256 GB SSD
  • Ethernet 100M/1G/10Gbps, SFP+, 8 x 100BASE-T1, CAN-FD, FlexRay™, 8 x cameras
