Secure HS-CAN Transceiver with Sleep Mode

TJA1153 Active

Roll over image to zoom in

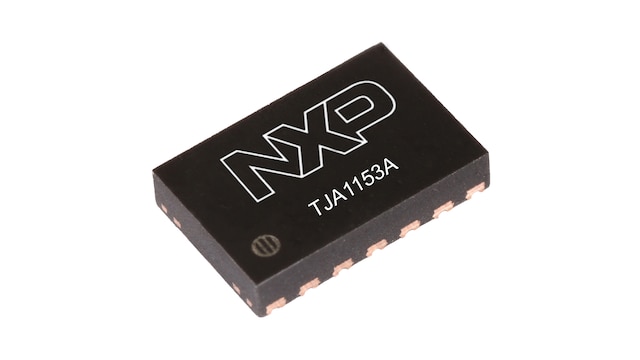

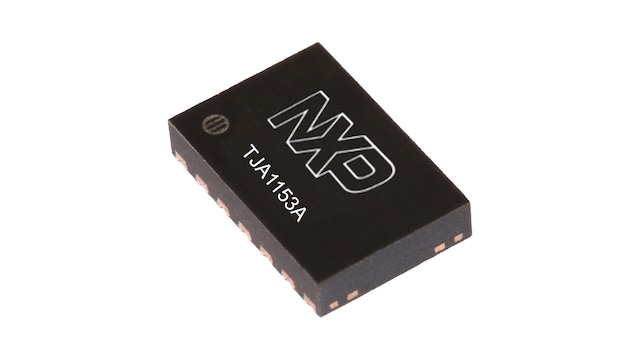

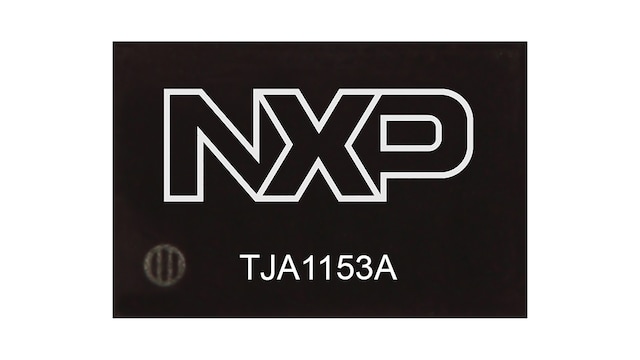

NXP's new secure CAN transceiver TJA1153A provides a seamless and very cost-effective solution for securing classical CAN and CAN FD communication without cryptography. The TJA1153A belongs to a new generation of automotive high-speed CAN/CAN FD transceivers, offering security functions. It provides an interface between a classical CAN or CAN FD protocol controller and the physical two-wire CAN bus. As long as no security incidents have been detected, the TJA1153A behaves like a standard CAN transceiver with Sleep mode.

The security incidents that can be detected and contained are:

  • Flooding the bus from the local node
  • Transmitting a CAN message with an identifier that has not been assigned to the local node for transmission
  • Receiving a CAN message from a remote host with an identifier that is identical to one uniquely assigned to this local node
  • Tampered messages

Block Diagram

TJA1153 Application Block Diagram

TJA1153 Application Block Diagram
Get diagram PDF

Features

General

  • The TJA1153A is a secure HS-CAN transceiver with Sleep mode and a VIO supply pin. The VIO pin allows for direct interfacing with 3.3 V and 5 V microcontrollers
  • ISO 11898-1:2015, ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant
  • Operates in classical CAN and CAN FD systems with arbitration phase bit rate set at 125 kbit/s, 250 kbit/s or 500 kbit/s
  • For arbitration bit rates of 250 kbit/s and 500 kbit/s, the fast phase bit rate can be set to two or four times the arbitration bit rate
  • AEC-Q100 Rev-G qualified (grade 1)
  • Low electromagnetic emission (EME) and high electromagnetic immunity (EMI)

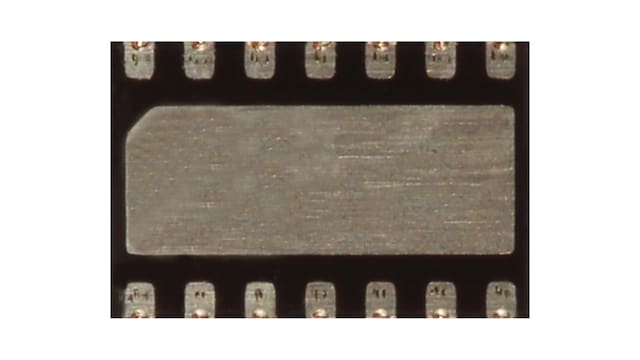

  • HVSON14 plastic small outline package

System Control and Diagnostic Features

  • Mode control via dedicated control pins EN and STB_N
  • Overtemperature shutdown

Security Features

  • Spoofing protection
  • Flooding protection
  • Tamper protection

Predictable and Fail-Safe Behavior

  • Functional behavior predictable under all supply conditions
  • Transceiver disengages from bus when not powered (zero load)
  • Transmit data (TXD) dominant time-out function
  • Internal biasing of TXD, EN and STB_N input pins

Protection

  • High ESD handling capability on the bus pins (8 kV HBM)
  • Bus and VBAT pins protected against transients in automotive
  • Undervoltage detection on pins VCC, VIO and VBAT
  • Thermally protected

Buy/Parametrics

1 result

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Package Type

Package Pitch (mm)

Recommended Orderable Part Number

MCU I/O Interface (V)

VIO Option Available

Low Power Modes

Data Rate [max] kbps

CAN Channels

Product Category

Supply Voltage [Min to Max] (V)

Data Rate [min] kbps

Voltage on bus pins [Min-Max] (V)

VESD IEC on bus pins (+/- kV)

VESD HBM on bus pins (+/- kV)

Junction Temperature (Max) (℃)

Protection

Wake-Up Pin

Min High Input Levels (V) [Vio]

Supported standards

SPLIT Pin

Thermal Resistance (Spec) (℃/W)

Product Application

TJA1153ATK

Active

HVSON14

0.65

TJA1153ATK/0Z

3.3, 5.0

Y

Sleep Mode, Standby Mode

5000.0

1

Secure CAN / High-Speed CAN / CAN FD

4.75 to 5.25

40.0

-58 to 58

0 to 0

0 to 0

150

TXD dominant timeout, overtemperature, undervoltage

Y

2.1

ISO-11898-2:2016, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

50

Automotive, Industrial
