Product Details

Block Diagram

S32K3X8EVB-Q289 Features

Get diagram PDF

Supported Devices

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

S32K3: S32K3 Microcontrollers for Automotive General Purpose

K2x / KS2x USB

K26_180: Kinetis^® K26-180 MHz, Dual High-Speed and Full-Speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core

Power Management

System Basis Chips

FS26: Safety System Basis Chip with Low Power, for ASIL D Systems

Interfaces

Automotive LIN Solutions

TJA1021: ISO17987 LIN 2.1/SAE J2602 Transceiver

Secure CAN Transceivers

TJA1153: Secure HS-CAN Transceiver with Sleep Mode

Audio

Audio Converters

SGTL5000: Ultra-Low-Power Audio Codec

Features

Hardware Interface

Power supply switch
MCU voltage/current measurement
2x user RGB LED
2x user push-buttons
2x ADC rotatory potentiometer
2x touch pad electrode
USB connector
SD card slot
SABRE connector to Ethernet interface

Software Features

Free-of-charge Real-Time Drivers (RTD) for AUTOSAR® and non-AUTOSAR use and ASIL D compliant
Configuration tools for both AUTOSAR and non-AUTOSAR users
Free of charge security firmware: SHE+ compliant NXP supplied, designed for ISO 21434
S32 Safety Software Framework (SAF): Six fault detection and reaction libraries
Free of Charge Safety Peripheral Drivers (SPD)
Structural Core Self-Test (SCST) Library
Inter-Platform Communication Framework (IPCF): Middleware for multicore, multi-OS communication in single and multichip systems
Free of charge Model-Based Design Toolbox (MBDT) for MATLAB®: NXP supplied plug-in for Simulink® environment

Compatibility

Arduino pin-out compatible with expansion “shield” support

Interfaces

On-board CAN FD
On-board LIN
SAI audio
USB to UART

Enablement

Free of charge S32 Design Studio IDE (Eclipse, GCC and debugger) and S32 Config Tool (pins, clocks, peripherals) with third-party compilers and debuggers

More

Buy Options

Click to expand

S32K3X8EVB-Q289
Active

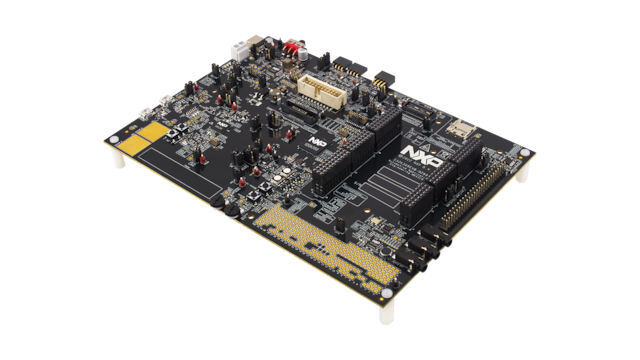

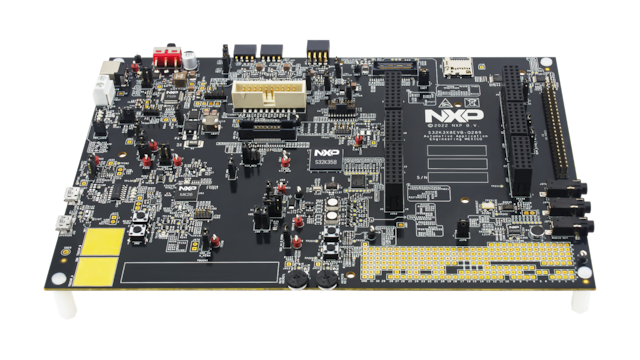

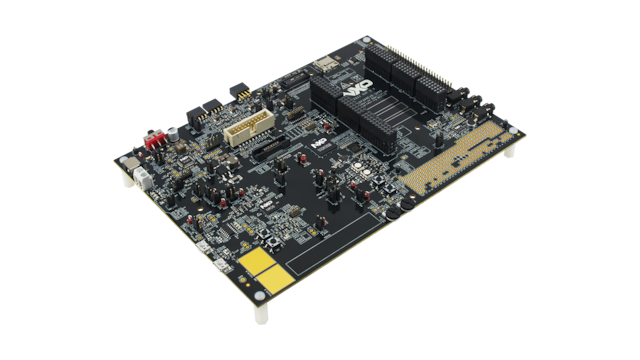

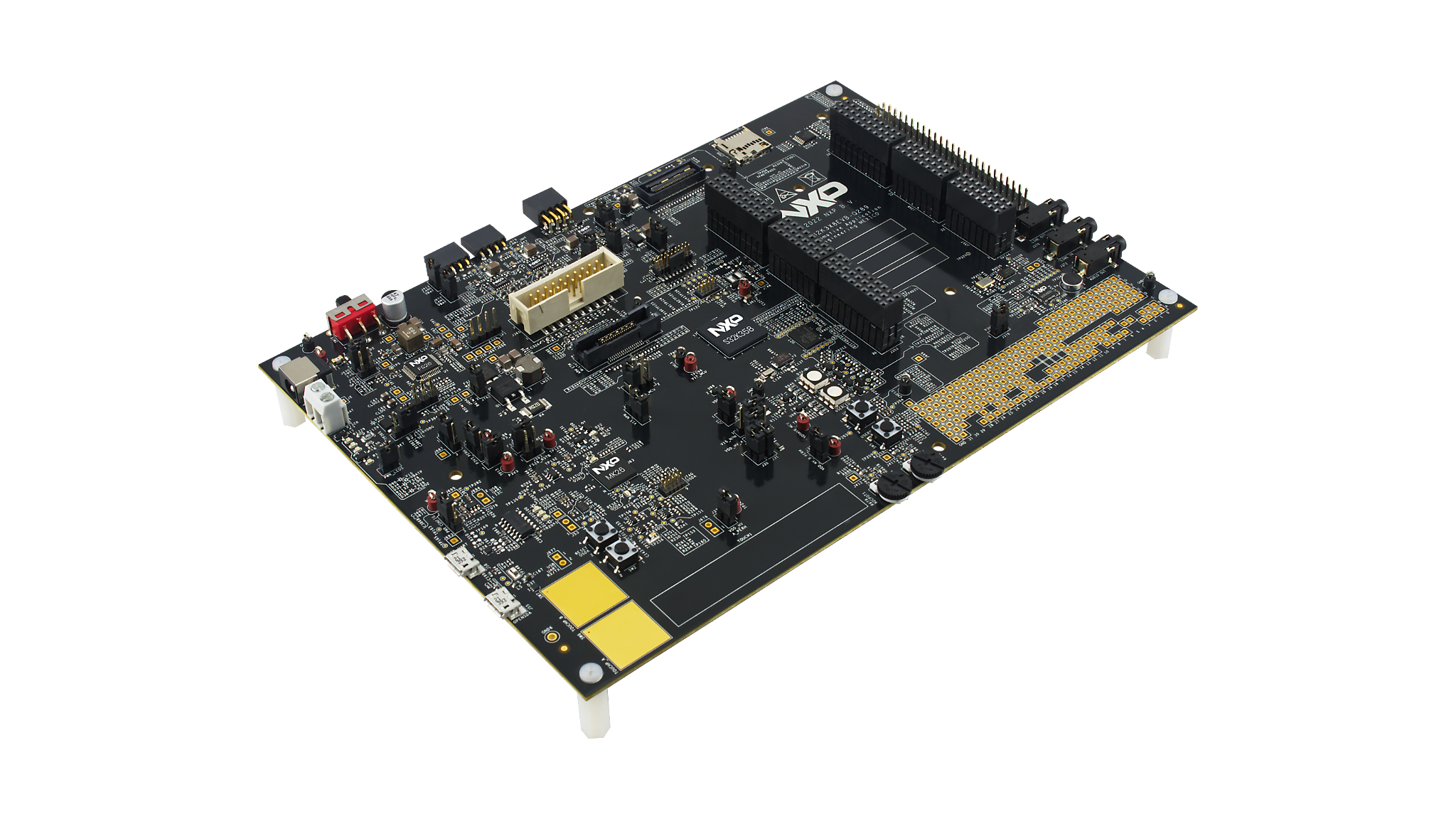

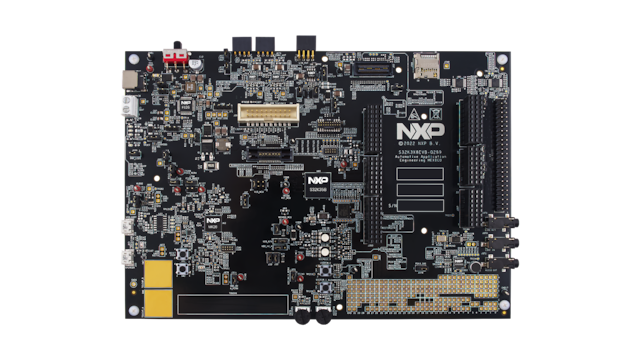

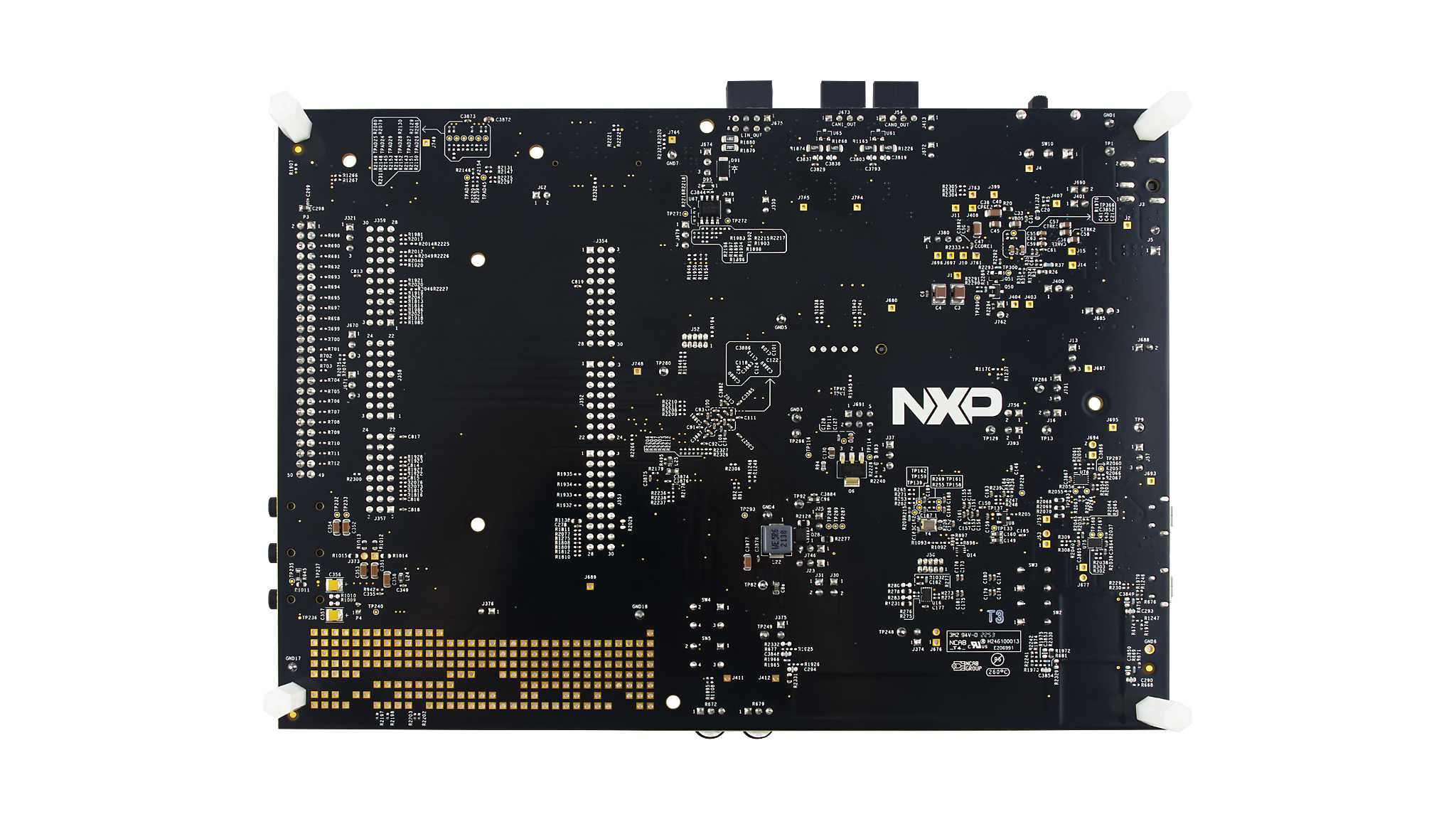

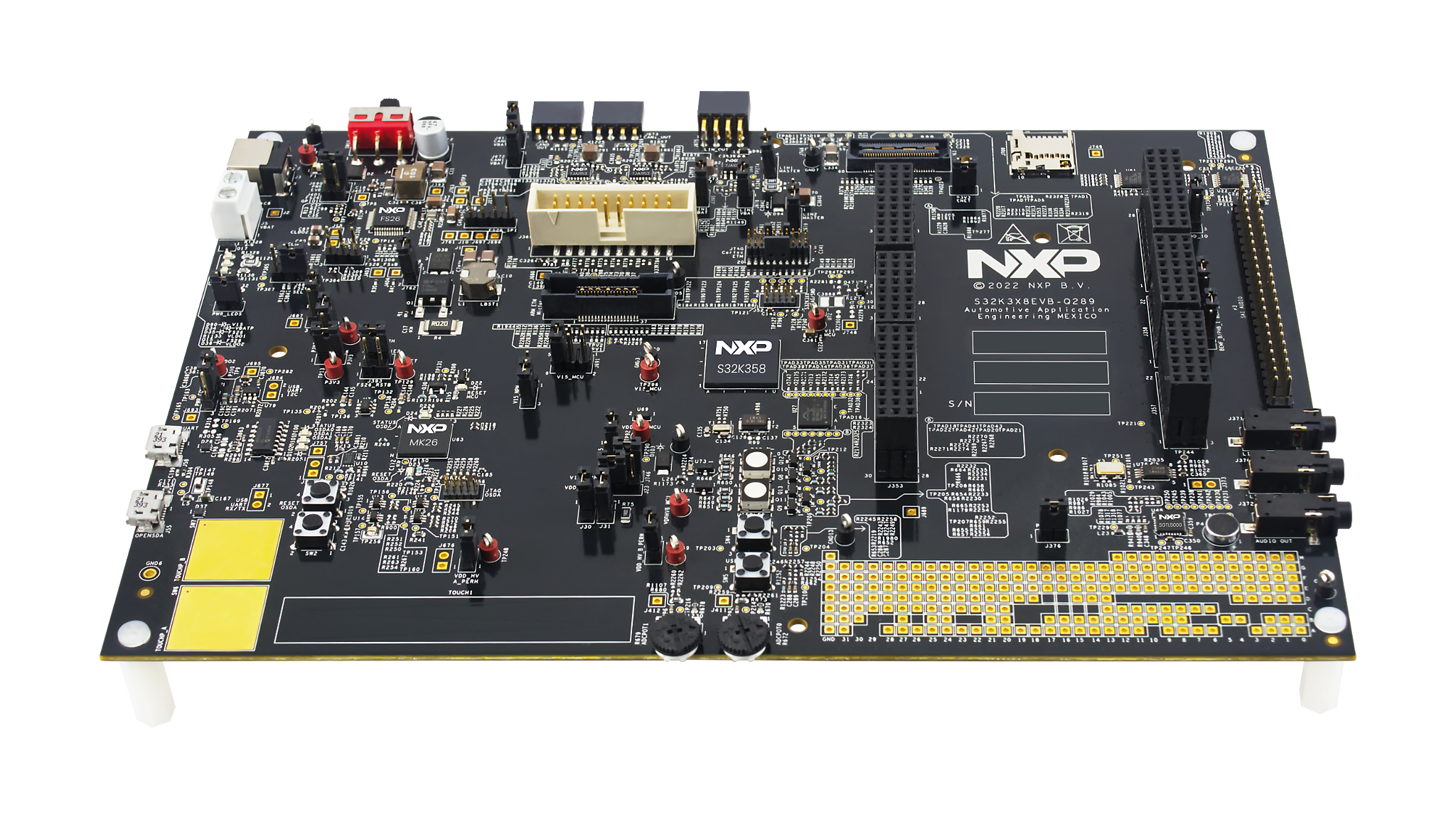

S32K3X8EVB-Q289 Evaluation Board for Automotive General Purpose.
Kit contains:
- S32K3X8EVB-Q289 Evaluation Board

$535.00 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 1
- Shipping: Normally ships 1-2 business days

ADD TO CART
