S32K-ISELED LED Lighting Solution

S32K-ISELED

Roll over image to zoom in

ISELED is a new technology for next-generation smart LED lighting systems, primarily in automotive applications (mainly for automotive interior lighting). It’s also applicable to industrial. ISELED addresses calibration and communication issues in today’s LED lighting systems by moving the costly external processes for ensuring stable light parameters (brightness and color stability) to embedded processing in the RGB LED itself.

The 32-bit Arm® Cortex®-M based S32K MCUs (6 Cortex-M0+/M4F-based S32K1 MCU families and 13 Cortex-M7-based S32K3 MCU families to be available in 2022) support the ISELED protocol with an ISELED software driver available for the SDK and AUTOSAR MCAL.

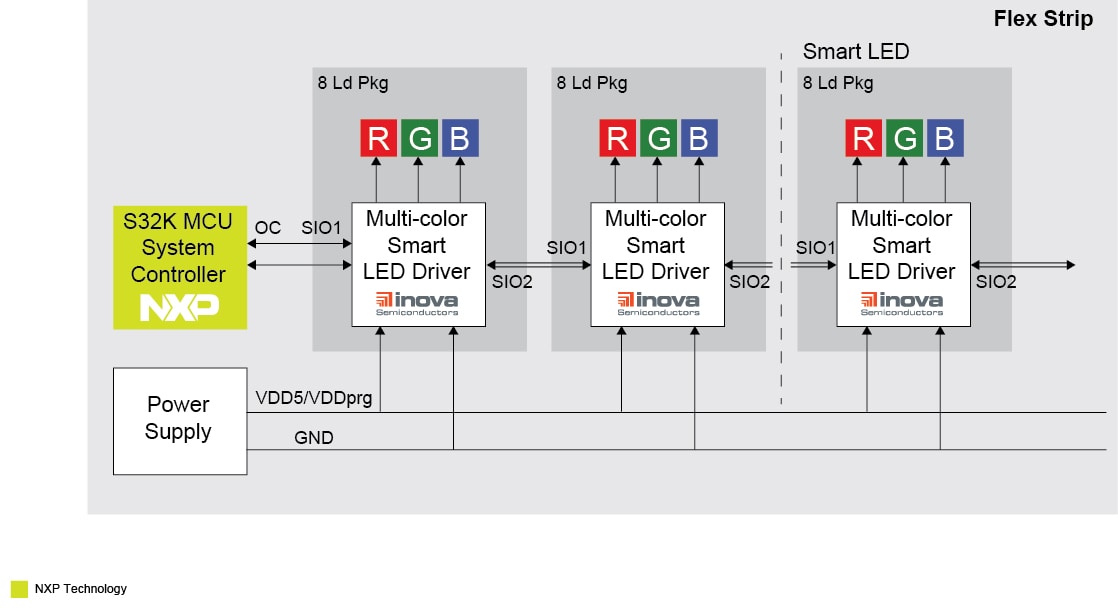

Block Diagram

S32K-ISELED LED lighting solution

S32K-ISELED LED lighting solution
Get diagram PDF

Supported Devices

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K3: S32K3 Microcontrollers for Automotive General Purpose
  • S32K1: S32K1 Microcontrollers for Automotive General Purpose

Features

S32K-ISELED Evaluation Path:

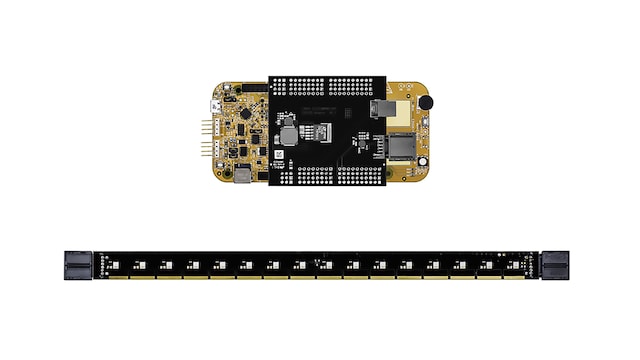

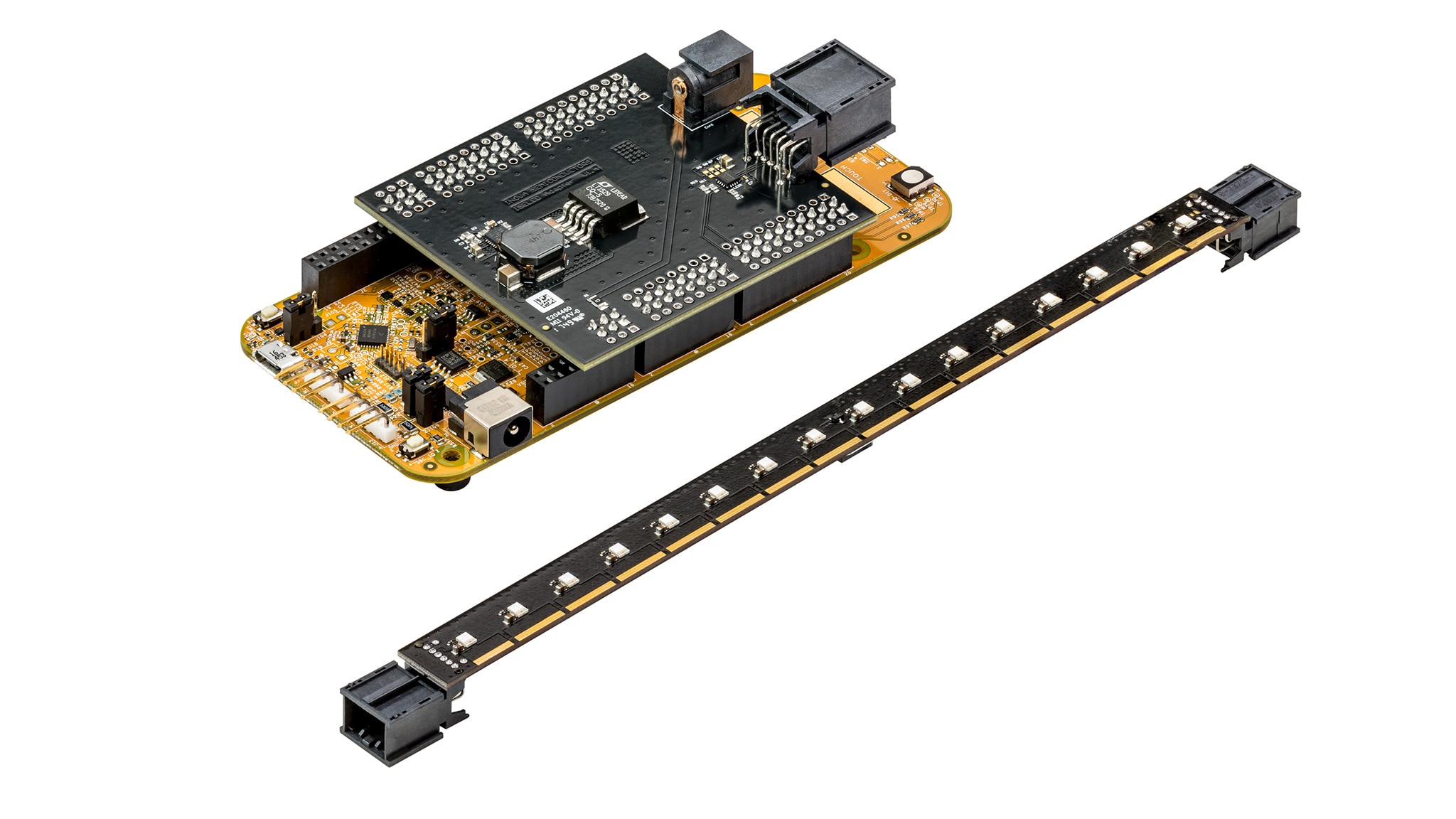

  • ISELED-ADK (Application Development Kit) features:
    • S32K144EVB
    • 1 x IISELED power adaptor board
    • 1 x 16-LED bar (contains ISELED LEDs from Dominant Opto Technologies)
  • Order it From Newark® or From Farnell® (operates as Newark in North America)

S32K-ISELED Production Path:

  • Select S32K1 MCU ISELED-enabled parts in the Buy section. They include the license for evaluation and production phases with full functionality.

Buy Options

FS32K116LIT0VFMT-Image

Click to expand

  • FS32K116LIT0VFMT

  • S32K116 Arm Cortex-M0+, 48 MHz, 128 Kb Flash, ISELED, FlexIO, QFN32 - S32K MCUs for General-Purpose.

  • $1.62USD
  • For a quantity of 10K
    • Availability: In stock
    • Inventory: >100
    • Shipping: Normally ships 1-2 business days
SampleADD TO CART
Order from distributors
FS32K116LIT0VLFT-Image

Click to expand

  • FS32K116LIT0VLFT

  • S32K116 Arm Cortex-M0+, 48 MHz, 128 Kb Flash, ISELED, FlexIO, LQFP48 - S32K MCUs for General-Purpose.

  • $1.71USD
  • For a quantity of 10K
    • Availability: In stock
    • Inventory: >100
    • Shipping: Normally ships 1-2 business days
SampleADD TO CART
Order from distributors
FS32K118LIT0VLFT-Image

Click to expand

  • FS32K118LIT0VLFT

  • S32K118 Arm Cortex-M0+, 48 MHz, 256 Kb Flash, ISELED, FlexIO, LQFP48 - S32K MCUs for General-Purpose.

  • $1.93USD
  • For a quantity of 10K
    • Availability: In stock
    • Inventory: >100
    • Shipping: Normally ships 1-2 business days
SampleADD TO CART
Order from distributors
FS32K142UIT0VLHT-Image

Click to expand

  • FS32K142UIT0VLHT

  • S32K142 Arm Cortex-M4F, 112 MHz, 256 Kb Flash, ISELED, FlexIO, LQFP64 - S32K MCUs for General-Purpose.

  • $2.45USD
  • For a quantity of 10K
Order from distributors
FS32K144UIT0VLHT-Image

Click to expand

  • FS32K144UIT0VLHT

  • S32K144 Arm Cortex-M4F, 112 MHz, 512 Kb Flash, ISELED, FlexIO, LQFP64 - S32K MCUs for General-Purpose.

  • $3.21USD
  • For a quantity of 10K
    • Availability: In stock
    • Inventory: >100
    • Shipping: Normally ships 1-2 business days
SampleADD TO CART
Order from distributors
FS32K144ULT0VLHT-Image

Click to expand

  • FS32K144ULT0VLHT

  • S32K144 Arm Cortex-M4F, 112 MHz, 512 Kb Flash, ISELED, FlexIO, CSEc security, LQFP64 - S32K MCUs for General-Purpose.

  • $3.88USD
  • For a quantity of 10K
    • Availability: In stock
    • Inventory: >100
    • Shipping: Normally ships 1-2 business days
SampleADD TO CART
Order from distributors
FS32K146UIT0VLLT-Image

Click to expand

  • FS32K146UIT0VLLT

  • S32K146 Arm Cortex-M4F, 112 MHz, 1Mb Flash, ISELED, FlexIO, LQFP100 - S32K MCUs for General-Purpose.

  • $3.99USD
  • For a quantity of 10K
Order from distributors
FS32K146ULT0VLLT-Image

Click to expand

  • FS32K146ULT0VLLT

  • S32K146 Arm Cortex-M4F, 112 MHz, 1Mb Flash, ISELED, FlexIO, CSEc security, LQFP100 - S32K MCUs for General-Purpose.

  • $4.67USD
  • For a quantity of 10K
Order from distributors
FS32K144ULT0VLLT-Image

Click to expand

  • FS32K144ULT0VLLT

  • S32K144 Arm Cortex-M4F, 112 MHz, 512 Kb Flash, ISELED, FlexIO, CSEc security, LQFP100 - S32K MCUs for General-Purpose.

Buy Options
FS32K148UIT0VLQT-Image

Click to expand

  • FS32K148UIT0VLQT

  • S32K148 Arm Cortex-M4F, 112 MHz, 2 Mb Flash, ISELED, FlexIO, LQFP144 - S32K MCUs for General-Purpose.

  • $6.15USD
  • For a quantity of 10K
Order from distributors
FS32K148UGT0VLQT-Image

Click to expand

  • FS32K148UGT0VLQT

  • S32K148 Arm Cortex-M4F, 112 MHz, 2Mb Flash, FlexIO, CSEc security, ethernet, LQFP144 - S32K MCUs for General-Purpose.

  • $7.27USD
  • For a quantity of 10K
Order from distributors
