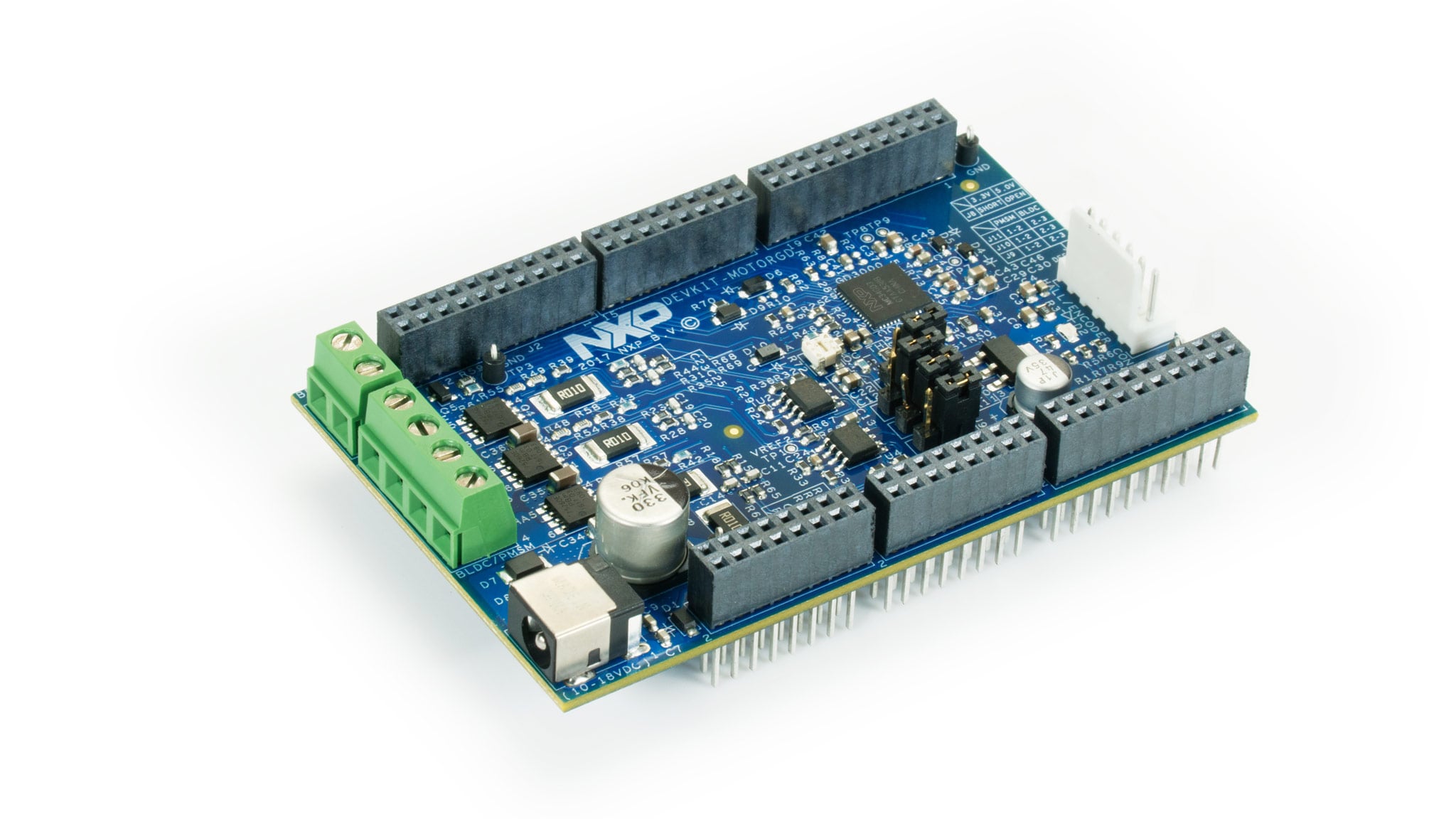

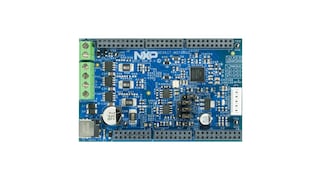

The DEVKIT-MOTORGD is an integrated motor control shield from NXP for the DEVKIT platform. This offering combines the functionality of the FRDM-GD3000EVB and FRDM-PWRSTG for a full automotive solution. DEVKIT-MOTORGD is compatible with the low-cost evaluation board of the S32K and MPC5744P, S32K144EVB-Q100 and DEVKIT-MPC5744P, respectively, and can drive a 3-phase BLDC/PMSM motor. The built-in Hall/Encoder interface means DEVKIT-MOTORGD can support both sensored and sensorless motor control applications.

In addition to DEVKIT-MOTORGD, NXP also offers a comprehensive motor control software suite. Check this product page to see our enablement offerings.

Design Files

Software

Product Details

Supported Devices

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

S32K1: S32K1 Microcontrollers for Automotive General Purpose
S32K3: S32K3 Microcontrollers for Automotive General Purpose

Ultra-Reliable MPC57xx MCUs

MPC574xP: Ultra-Reliable MPC574xP MCU for Automotive and Industrial Safety Applications

Power Management

BLDC, H-Bridge, Stepper

GD3000: 3-Phase Brushless Motor Pre-Driver

Pre-Drivers

MC33937: 3-Phase Field Effect Transistor Pre-Driver

Features

Power Management

Built-in Voltage Regulator
Support for 3-Phase BLDC/PMSM Motor
- Output Parameters:
  - 3 phase outputs
  - 10-18 V
  - 5 A phase current (RMS)

Connectivity

10-18 V Barrel Connector

Tools and OS Support

Arduino^® pin compatibility
Hall/Encode Interface

General

GD3000 MOSFET Gate Driver
Compatible with S32K144EVB-Q100 and DEVKIT-MPC5744P Evaluation Boards
Linux 45ZWN24-40 BLDC or Nanotec DB41M024030-A motor recommended for evaluation purposes

Buy Options

Click to expand

DEVKIT-MOTORGD
DEVKIT for MOTOR CONTROL.
- DEVKIT-MOTORGD Motor Control Shield

$69.00 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 3
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.
