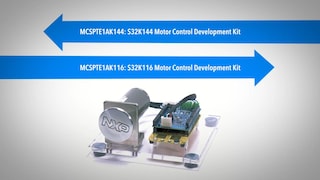

S32K144 BLDC/PMSM Development Kit

MCSPTE1AK144

Roll over image to zoom in

The MCSPTE1AK144 is a development kit engineered for Brushless Direct Current (BLDC) motor control (targeting Heating, Ventilation and Air Conditioning (HVAC) or electric pumps) and 3-phase Permanent Magnet Synchronous Motor (PMSM) control (targeting active suspension or electric powertrain).

Based on the 32-bit Arm® Cortex®-M S32K1 microcontroller and the GD3000 Pre-Driver, the MCSPTE1AK144 enables rapid prototyping and evaluation of BLDC and PMSM control applications without having to wait for the final hardware design.

The MCSPTE1AK144 application software takes advantage of the Automotive Math and Motor Control Library Set and provides a complete reference implementation for both 3-phase BLDC and PMSM motor control.

MCSPTE1AK144 kit is replacing MTRDEVKSBNK144 and MTRDEVKSPNK144.
Both collateral and software are fully compatible with those kits.

Supported Devices

Power Management

BLDC, H-Bridge, Stepper

  • GD3000: 3-Phase Brushless Motor Pre-Driver

System Basis Chips

  • UJA1169TK: Mini High-Speed CAN System Basis Chip

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K1: S32K1 Microcontrollers for Automotive General Purpose

Buy Options

MCSPTE1AK144-Image

Click to expand

  • MCSPTE1AK144
    Active

  • S32K144 BLDC/PMSM Development Kit.

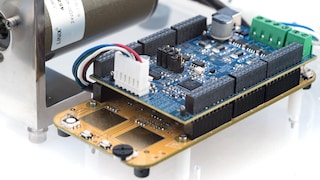

  • Kit Contains

    • S32K144EVB-Q100 Evaluation Board

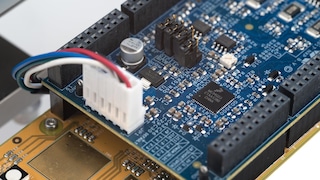

    • Motor Control shield for DEVKIT (DEVKIT-MOTORGD) Board
    • PM Motor
    • USB cable
    • Power Supply
  • $703.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
