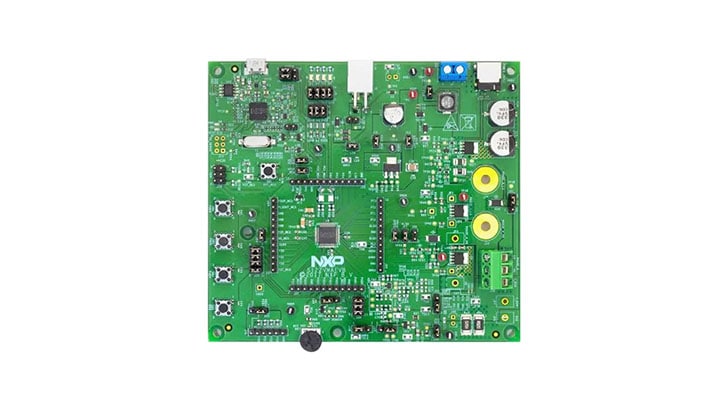

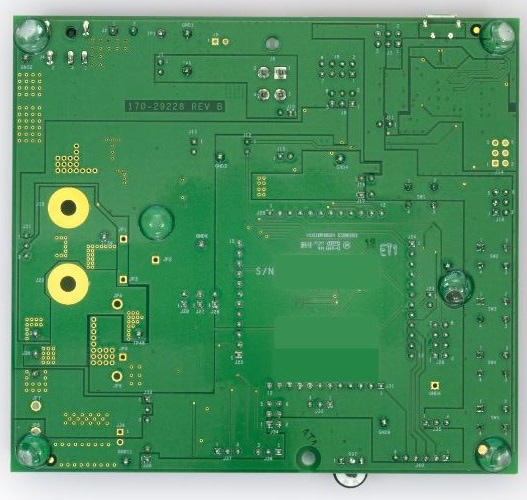

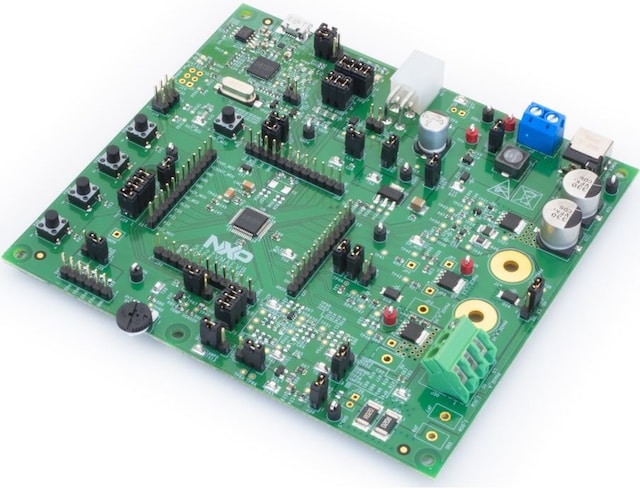

S12ZVMA DC Motor Control Evaluation Board

S12ZVMAEVB Active

Roll over image to zoom in

The S12ZVMAEVB is a development board for the S12 MagniV® S12ZVM 16-bit MCUs targeted for DC motor control applications and simple loads to be controlled via LIN or PWM command. Integrated LIN-PHY, 12V-Vreg and Gate Driver Unit (GDU) allow building extremely compact solutions for DC-motors, solenoids or resistive loads.

Product Details

Supported Devices

Processors and Microcontrollers

S12 MagniV Mixed-Signal MCUs

  • S12ZVMA: Mixed-Signal MCU for Automotive and Industrial Motor Control Applications

Features

Microcontroller

  • S912ZVMBA6 in 48 LQFP, 64 kB in flash

Connectivity

  • Connector interface for 2-ch half-bridge MOSFET gate driver
  • USB-to-SCI interface
  • LIN connector
  • Hall-sensor interface and connector

Debug

  • Built-in OSBDM debugger

Sensors

  • Temperature sensor

Components

  • One general-purpose potentiometer
  • 4 LEDs
  • 4 push buttons

Buy Options

S12ZVMAEVB-Image

Click to expand

  • S12ZVMAEVB
    Active

  • S12ZVMBA6 Evaluation Board for DC.

  • $315.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
