MPC5744P 3-phase PMSM Development Kit

MTRCKTSPS5744P Active

Roll over image to zoom in

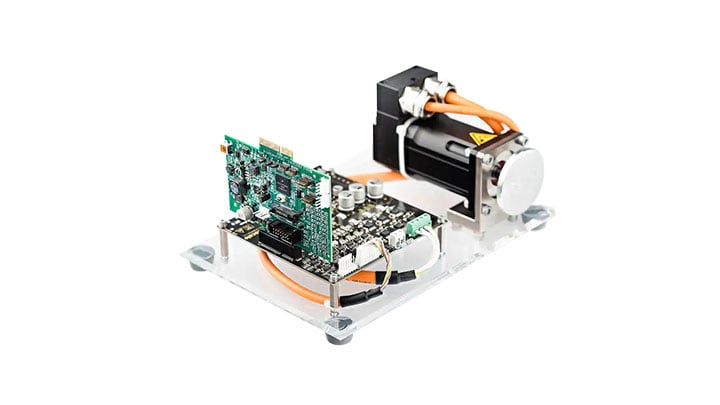

The NXP MTRCKTSPS5744P motor control development kit is ideal for applications requiring one PMSM motor, such as power steering or electric powertrain.

  • Designed to enable rapid prototyping and evaluation of the motor control application early in the design process
  • Includes a 32-bit NXP MPC5744P MCU based controller board and the 3-phase low-voltage power stage board
  • Application software that provides a complete reference implementation of the PMSM motor control application and takes advantage of the Automotive Math and Motor Control Library Set

Supported Devices

Interfaces

Automotive LIN Solutions

  • MC33905: SBC Gen2 with High-Speed CAN and LIN

Power Management

Pre-Drivers

  • MC33937: 3-Phase Field Effect Transistor Pre-Driver

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC574xP: Ultra-Reliable MPC574xP MCU for Automotive and Industrial Safety Applications

Features

Functional

  • DC-bus overvoltage, overcurrent, and under-voltage and stall fault detection

Connectors

  • JTAG and NEXUS debug connector

Power

  • Supports low-voltage PMSM motors with a resolver position sensor

Software enablement

  • ANSI-C based example SW created in S32 Design Studio for Power Architecture®
  • FreeMASTER visualization/configuration support
  • MCAT tool 1.1 part of software package

Buy Options

MTRCKTSPS5744P-Image

Click to expand

  • MTRCKTSPS5744P
    Active

  • MPC5744P Development Kit for 3-phase PMSM.

  • Kit contains:

    • MPC5744P controller board
    • MC33937A power stage based on SMARTMOS pre-driver
    • 3-phase PMSM low-voltage motor
    • AC/DC 24 V universal power supply
    • USB cable
  • $1999.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
