S32M27x PMSM/BLDC Motor Control Evaluation Board

S32M27XEVB
Active

Roll over image to zoom in

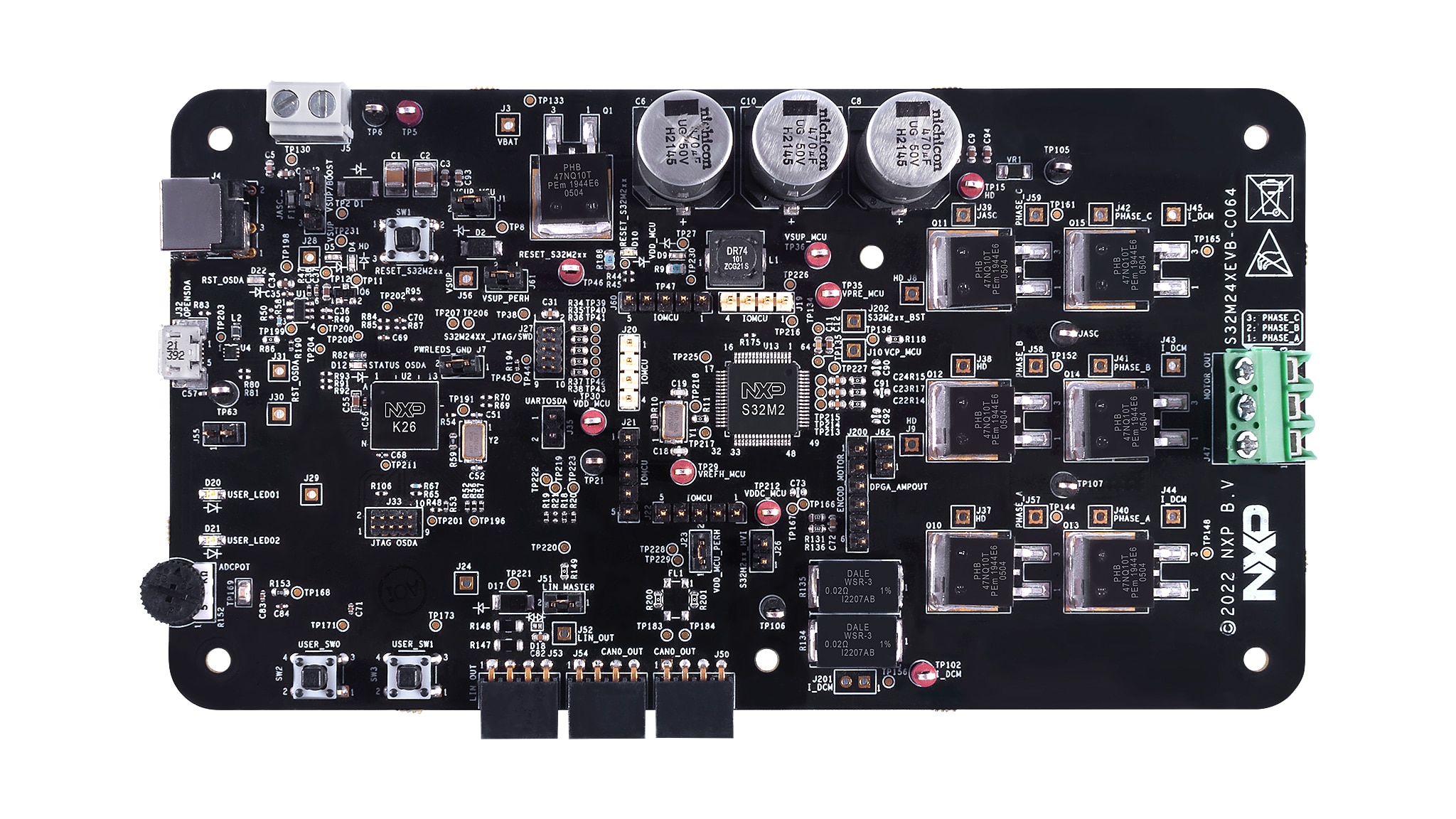

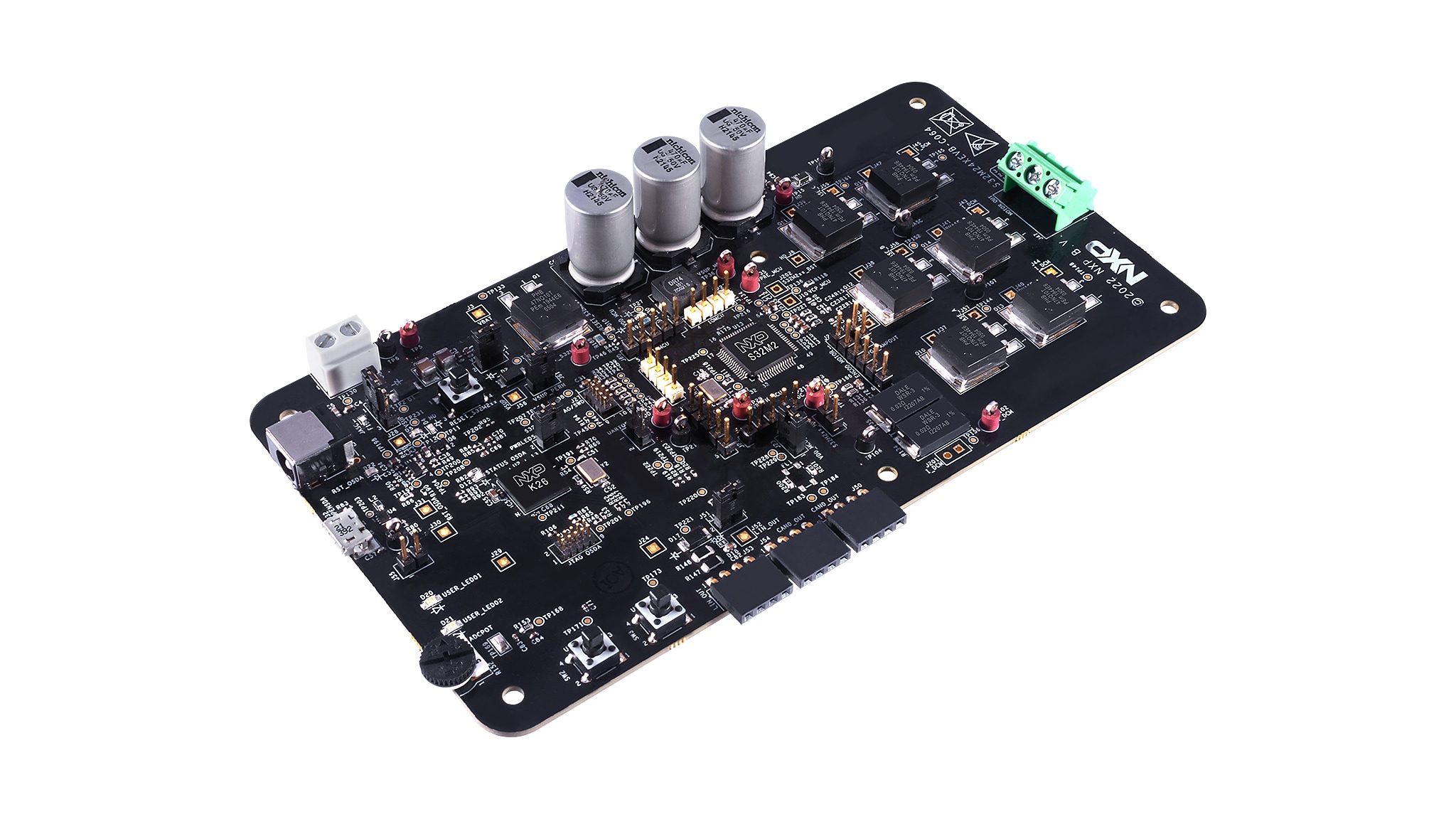

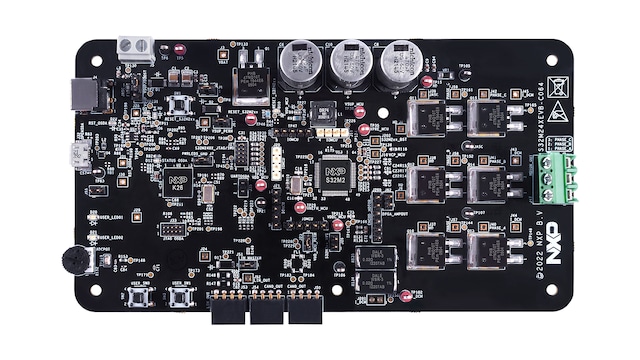

The S32M27xEVB-C064 and S32M27xEVB-L064 are an evaluation boards engineered for 3-Phase Brushless Direct Current (BLDC) and Permanent Magnet Synchronous Motor (PMSM) control applications like electric pumps, cooling systems and actuators like sunroof or seat position adjustment.

The S32M27x is an integrated solution based on an internal 32-bit Arm® Cortex®-M7 S32K3 microcontroller and analog die with voltage regulator, gate driver, current sensing and LIN/CAN physical layer. Evaluation board enables rapid prototyping and evaluation of BLDC and PMSM control applications without having to wait for the final hardware design.

The S32M27XEVB application software leverages the Automotive Math and Motor Control Library (AMMCLib) set plus Real-Time Drivers (RTD) software package to provide a complete reference implementation for both 3-phase BLDC and PMSM motor control.

Block Diagram

Choose a diagram:

S32M27XEVB with CAN Interface

S32M27XEVB with CAN interface

S32M27XEVB with LIN Interface

S32M27XEVB with LIN interface

S32M276 PMSM FOC Application

S32M276 PMSM FOC Application Block Diagram

S32M276 BLDC 6-Step Application

S32M276 BLDC 6-Step Application Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

K2x / KS2x USB

  • K26_180: Kinetis® K26-180 MHz, Dual High-Speed and Full-Speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

S32M Integrated Solutions for MC

  • S32M2: S32M2 Integrated Solution for 12V Motor Control

Interfaces

CAN Signal Improvement

  • TJA1462: CAN Signal Improvement Capability Transceiver with Standby Mode

Automotive LIN Solutions

  • TJA1027: LIN 2.2A/SAE J2602 Transceiver

Features

Hardware Features

  • S32M27xEVB-C064 designed for 3-phase PMSM or BLDC motor, with internal CAN PHY and external LIN PHY
  • S32M27xEVB-L064 designed for 3-phase PMSM or BLDC motor, with internal LIN PHY and external CAN PHY
  • Position/Speed Sensor options: encoder, HALL or sensorless techniques
  • Voltage/current Sensors: DC Bus voltage and current, phase voltages, BEMF voltages, over current/voltage/temperature protections

Software Compatibility

S32M27xEVB-C064 Interfaces

  • CAN (FD) physical layer integrated in S32M2
  • TJA1027: LIN 2.2A/SAE J2602 Transceiver

S32M27xEVB-L064 Interfaces

  • LIN physical layer integrated in S32M2
  • TJA1462: CAN Signal Improvement Capability Transceiver with Standby Mode

Debug Interfaces

  • On board PEmicro debugger (micro-USB connector) with virtual COM port for serial communication
  • 10pin JTAG/SWD connector

Enablement

  • ANSI-C based example SW created in S32 Design Studio for S32 Platform built on S32M27x RTD drivers
  • Model-Based Design Toolbox (MBDT) example SW built on S32M27x RTD drivers
  • FreeMASTER visualization/configuration support
  • MCAT tool - part of software package
  • MCU peripherals initialization generated by S32DS Configuration Tool (S32CT)
