S12ZVM32 3-phase BDLC and PMSM Evaluation Board

S12ZVM32EVB Active

Roll over image to zoom in

The S12ZVM32EVB is a development board for the S12 MagniV S12ZVM 16-bit MCUs targeted for 2-phase DC and 3-phase BLDC or PMSM motor control applications. The S12ZVM integrates a MCU with an S12Z core, a 5 V voltage regulator, a LIN physical layer and a gate driver unit capable of controlling up to 6 power MOSFETs and is targeted for automotive applications such as HVAC blowers, engine cooling fans, wiper systems, fuel or water pumps.

Product Details

Features

Connectivity

  • Connector interface for 2-phase (DC) or 3-phase (BLDC or PMSM) motor
  • USB-to-SCI interface
  • LIN connector
  • Hall-sensor interface and connector
  • Resolver interface and connector

Debug

  • Built-in OSBDM debugger

User components

  • One general-purpose potentiometer
  • Two LEDs
  • Two push buttons
  • One switch
  • Shunt resistors for current sensing on up to three phases and common DC link
  • S12ZVM32 (LIN version)

Buy Options

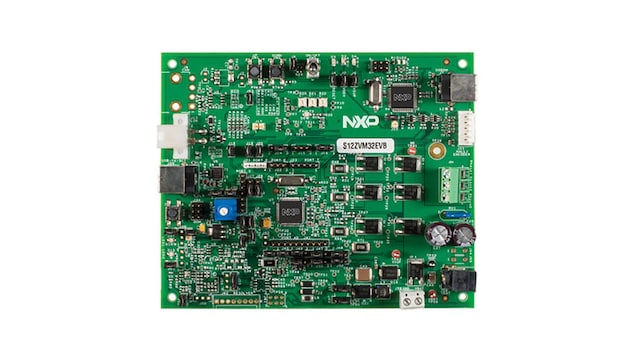

S12ZVM32EVB-Image

Click to expand

  • S12ZVM32EVB
    Active

  • S12ZVM32 Evaluation Board for 2-phase DC and 3-phase BLDC.

    • S12ZVM32 Evaluation Board
    • Quick Start guide
  • $315.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
