S32M24x PMSM/BLDC Motor Control Evaluation Board

S32M24XEVB Active

Roll over image to zoom in

The S32M24xEVB-C064 and S32M24xEVB-L064 are evaluation boards engineered for 3-phase brushless direct current (BLDC) and permanent magnet synchronous motor (PMSM) control applications like electric pumps, cooling systems and actuators, used in sunroof control or seat position adjustment.

Based on the S32M24x integrated solution that offers a 32-bit Arm® Cortex®-M4 S32K1 microcontroller and an analog die with voltage regulator, gate driver, current sensing and LIN/CAN physical layer in a system-in-package (SiP) design, this evaluation board enables rapid prototyping and evaluation of BLDC and PMSM control applications without having to wait for the final hardware design.

The S32M24xEVB-C064 and S32M24xEVB-L064 leverage the MCSPTE1AK344 application software with the Automotive Math and Motor Control Library (AMMCLib) set plus Real-Time Drivers (RTD) software package to provide a complete reference implementation for both 3-phase BLDC and PMSM motor control.

Block Diagram

Choose a diagram:

S32M24 EVB with LIN Interface

S32M24 EVB with LIN interface

S32M24 EVB with CAN Interface

S32M24 EVB with CAN interface

S32M24XEVB FOC Application

-S32M24XEVB FOC Application Block Diagram

S32M24XEVB BLDC 6-Step Application

S32M24XEVB BLDC 6-Step Application Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

S32M Integrated Solutions for MC

  • S32M2: S32M2 Integrated Solution for 12V Motor Control

K2x / KS2x USB

  • K26_180: Kinetis® K26-180 MHz, Dual High-Speed and Full-Speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

Interfaces

CAN Signal Improvement

  • TJA1462: CAN Signal Improvement Capability Transceiver with Standby Mode

Automotive LIN Solutions

  • TJA1027: LIN 2.2A/SAE J2602 Transceiver

Features

Hardware Features

  • S32M24xEVB-C064 designed for 3-phase PMSM or BLDC motor, with internal CAN PHY and external LIN PHY
  • S32M24xEVB-L064 designed for 3-phase PMSM or BLDC motor, with internal LIN PHY and external CAN PHY
  • Position/Speed Sensor options: encoder, HALL or sensorless techniques
  • Voltage/current Sensors: DC Bus voltage and current, phase voltages, BEMF voltages, over current/voltage/temperature protections

Software Compatibility

S32M24xEVB-C064 Interfaces

  • CAN (FD) physical layer integrated in S32M2

S32M24xEVB-L064 Interfaces

  • LIN physical layer integrated in S32M2

Debug Interfaces

  • On board PEmicro debugger (micro-USB connector) with virtual COM port for serial communication
  • 10pin JTAG/SWD connector

Enablement

  • ANSI-C based example SW created in S32 Design Studio for S32 Platform built on S32M24x RTD drivers
  • Model-Based Design Toolbox (MBDT) example SW built on S32M24x RTD drivers
  • FreeMASTER visualization/configuration support
  • MCAT tool - part of software package
  • MCU peripherals initialization generated by S32DS Configuration Tool (CT)

Buy Options

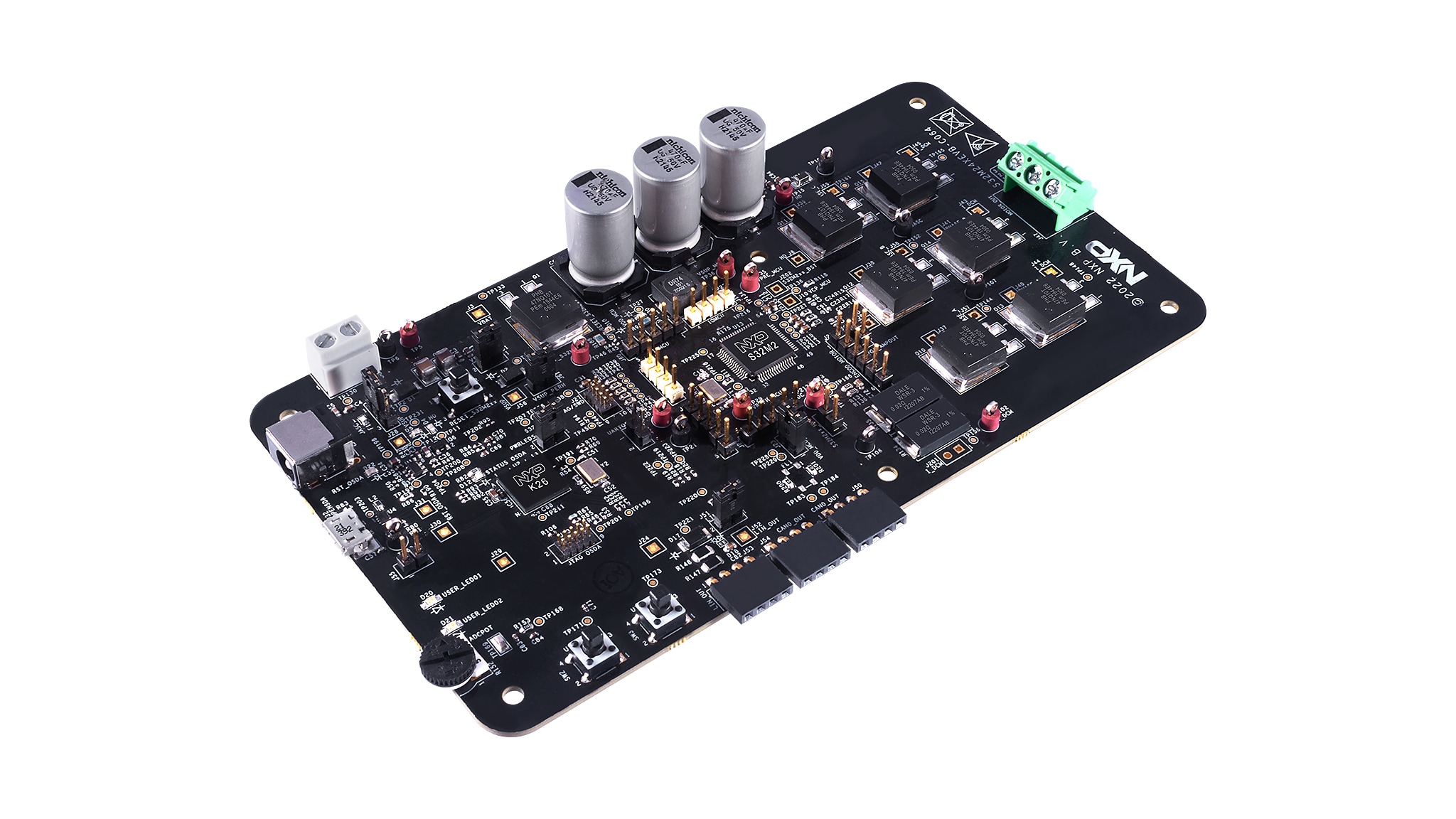

S32M24XEVB-C064-Image

Click to expand

  • S32M24XEVB-C064
    Active

  • S32M24x PMSM/BLDC Motor Control Evaluation Board.

  • Kit contains

    S32M24xEVB-C064 Evaluation Board designed for 3-phase PMSM or BLDC motor, with internal CAN PHY and external LIN PHY

  • $199.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: >100
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors

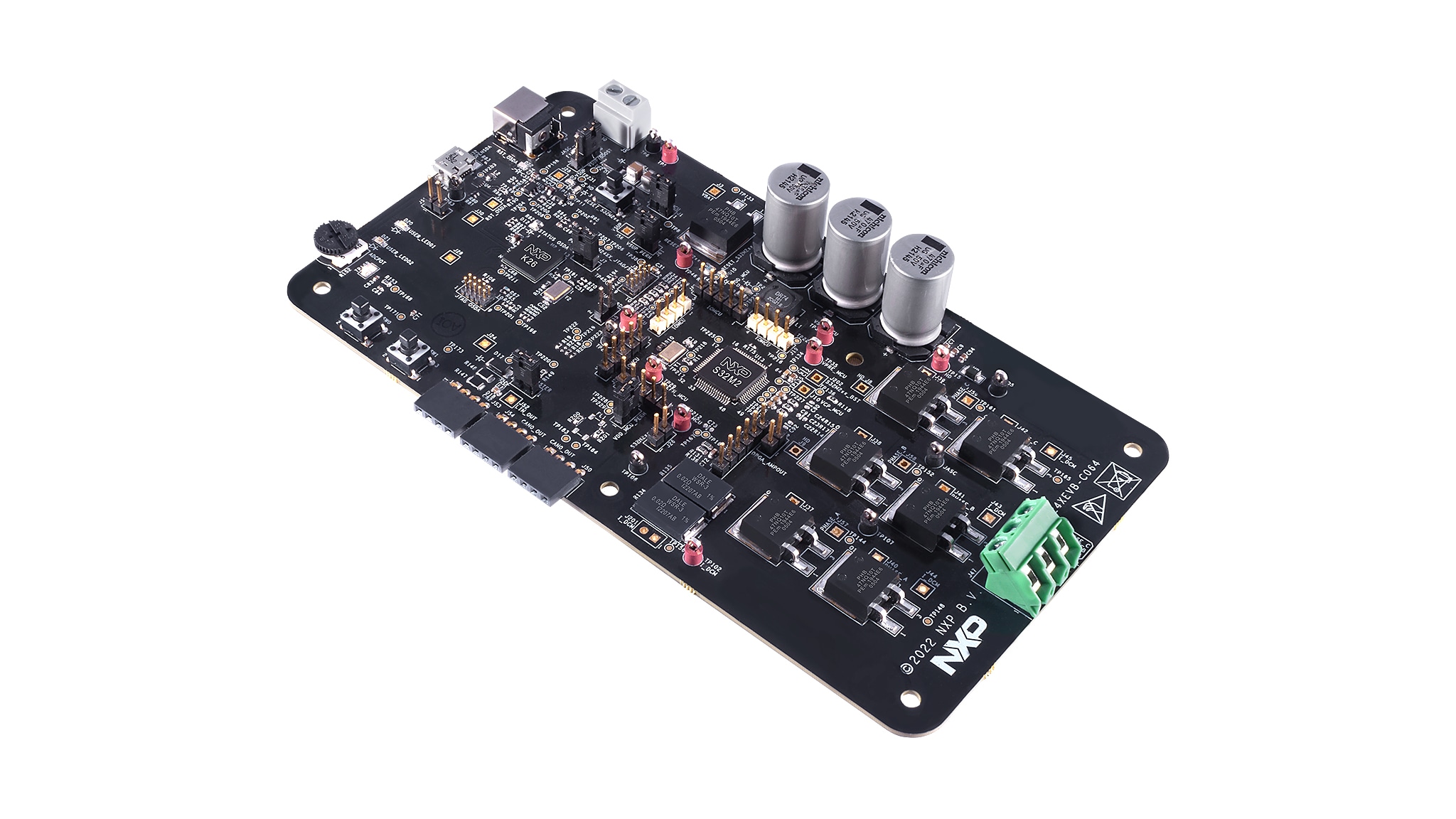

S32M24XEVB-L064-Image

Click to expand

  • S32M24XEVB-L064
    Active

  • S32M24x PMSM/BLDC Motor Control Evaluation Board.

  • Kit contains

    S32M24XEVB-L064 Evaluation Board designed for 3-phase PMSM or BLDC motor, with internal LIN PHY and external CAN PHY

  • $199.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: >100
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
N true 0 TSPS32M24XEVBen 6 Application Note Application Note t789 3 User Guide User Guide t792 1 User Manual User Manual t1009 2 en_US en_US 1 1 English Getting Started with the S32M24XEVB Evaluation Board 1729535011773708010501 Y 1729535011773708010501 GS-S32M24XEVB GS-S32M24XEVB /document/guide/getting-started-with-the-s32m24xevb-evaluation-board:GS-S32M24XEVB HTML 0 2024-10-22 GS-S32M24XEVB TSP User Guide 132339537837198660 2024-12-26 en Oct 24, 2024 User Guide t792 User Guide User Guide Y Getting Started with the S32M24XEVB Evaluation Board false en Application Note Application Note 3 2 1.0 English This application note describes the design of a 3-phase Permanent Magnet Synchronous Motor (PMSM) vector control (Field Oriented Control - FOC) drive with single shunt current sensing with and without position sensor. 1729895253278727406566 TSP 2.7 MB None None documents None 1729895253278727406566 /docs/en/application-note/AN14454.pdf 2680018 /docs/en/application-note/AN14454.pdf AN14454 documents N N 2024-10-25 AN14454: 3-phase Sensorless PMSM Motor Control with S32M244 Application Note /docs/en/application-note/AN14454.pdf /docs/en/application-note/AN14454.pdf Application Note N 645036621402383989 2024-10-25 pdf N en Oct 19, 2024 645036621402383989 Application Note Y N AN14454: 3-phase Sensorless PMSM Motor Control with S32M244 Application Note 3 1.0 English AN14116, application note for the hardware design guidelines for S32M2xx MCUs. 1698950348694685486458 TSP 1.7 MB Registration without Disclaimer None documents Extended 1698950348694685486458 /secured/assets/documents/en/application-note/AN14116.pdf 1650208 /secured/assets/documents/en/application-note/AN14116.pdf AN14116 documents Y N 2023-11-02 AN14116 Hardware Design Guidelines for S32M2xx Microcontrollers /webapp/Download?colCode=AN14116 /secured/assets/documents/en/application-note/AN14116.pdf Application Note N 645036621402383989 2024-09-18 pdf Y en Oct 1, 2023 645036621402383989 Application Note D N AN14116 Hardware Design Guidelines for S32M2xx Microcontrollers 4 0 Chinese Outlining an example use of FreeRTOS in a motor control application. Describing the MCSPTE1AK144 development kit design, but it can be used as a general guideline for any motor control application. FreeRTOS offers powerful tools to manage application tasks without the need to use peripheral interrupts, including priority preemption mechanisms. 1594284377935722964436zh TSP 321.2 KB None None documents None 1594284377935722964436 /docs/zh/application-note/AN12881.pdf 321224 /docs/zh/application-note/AN12881.pdf AN12881 documents N N 2020-07-08 AN12881: Motor Control Using FreeRTOS Application Note /docs/zh/application-note/AN12881.pdf /docs/zh/application-note/AN12881.pdf Application Note N 645036621402383989 2024-09-18 zh May 12, 2020 645036621402383989 Application Note Y N 使用FreeRTOS控制电机 0 English Outlining an example use of FreeRTOS in a motor control application. Describing the MCSPTE1AK144 development kit design, but it can be used as a general guideline for any motor control application. FreeRTOS offers powerful tools to manage application tasks without the need to use peripheral interrupts, including priority preemption mechanisms. 1594284377935722964436 TSP 321.2 KB None None documents None 1594284377935722964436 /docs/en/application-note/AN12881.pdf 321224 /docs/en/application-note/AN12881.pdf AN12881 documents N N 2020-07-08 AN12881: Motor Control Using FreeRTOS Application Note /docs/en/application-note/AN12881.pdf /docs/en/application-note/AN12881.pdf Application Note N 645036621402383989 2024-09-18 pdf N en May 12, 2020 645036621402383989 Application Note Y N AN12881: Motor Control Using FreeRTOS Application Note User Manual User Manual 2 5 A1 English This document will explain how to start with the S32M24xEVB-L064 Evaluation Board and all their components. 1729727354453739014699 TSP 2.7 MB Registration without Disclaimer None documents Extended 1729727354453739014699 /secured/assets/documents/en/user-manual/S32M24xEVB-L064_HW-UM.pdf 2734495 /secured/assets/documents/en/user-manual/S32M24xEVB-L064_HW-UM.pdf S32M24xEVB-L064_HW-UM documents Y N 2024-10-23 S32M24xEVB-L064 Evaluation Board Hardware User Manual /webapp/Download?colCode=S32M24xEVB-L064_HW-UM /secured/assets/documents/en/user-manual/S32M24xEVB-L064_HW-UM.pdf User Manual N 309919593431037931 2024-10-23 pdf Y en Oct 22, 2024 309919593431037931 User Manual Y N S32M24xEVB-L064 Evaluation Board Hardware User Manual 6 A1 English This document will explain how to start with the S32M24xEVB-C064 Evaluation Board and all their components. 1729727353827726235502 TSP 2.5 MB Registration without Disclaimer None documents Extended 1729727353827726235502 /secured/assets/documents/en/user-manual/S32M24xEVB-C064-HW-UM.pdf 2483925 /secured/assets/documents/en/user-manual/S32M24xEVB-C064-HW-UM.pdf S32M24xEVB-C064-HW-UM documents Y N 2024-10-23 S32M24xEVB-C064 Evaluation Board Hardware User Manual /webapp/Download?colCode=S32M24xEVB-C064-HW-UM /secured/assets/documents/en/user-manual/S32M24xEVB-C064-HW-UM.pdf User Manual N 309919593431037931 2024-10-23 pdf Y en Oct 22, 2024 309919593431037931 User Manual Y N S32M24xEVB-C064 Evaluation Board Hardware User Manual false 0 S32M24XEVB downloads en true 0 Y TSP Application Note 3 /docs/en/application-note/AN14454.pdf 2024-10-25 1729895253278727406566 TSP 2 Oct 19, 2024 Application Note This application note describes the design of a 3-phase Permanent Magnet Synchronous Motor (PMSM) vector control (Field Oriented Control - FOC) drive with single shunt current sensing with and without position sensor. None /docs/en/application-note/AN14454.pdf English documents 2680018 None 645036621402383989 2024-10-25 N /docs/en/application-note/AN14454.pdf AN14454: 3-phase Sensorless PMSM Motor Control with S32M244 Application Note /docs/en/application-note/AN14454.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N AN14454: 3-phase Sensorless PMSM Motor Control with S32M244 Application Note 2.7 MB AN14454 N 1729895253278727406566 /secured/assets/documents/en/application-note/AN14116.pdf 2023-11-02 1698950348694685486458 TSP 3 Oct 1, 2023 Application Note AN14116, application note for the hardware design guidelines for S32M2xx MCUs. Registration without Disclaimer /secured/assets/documents/en/application-note/AN14116.pdf English documents 1650208 None 645036621402383989 2024-09-18 Y /webapp/Download?colCode=AN14116 AN14116 Hardware Design Guidelines for S32M2xx Microcontrollers /secured/assets/documents/en/application-note/AN14116.pdf documents 645036621402383989 Application Note N en Extended D pdf 1.0 Y N AN14116 Hardware Design Guidelines for S32M2xx Microcontrollers 1.7 MB AN14116 N 1698950348694685486458 /docs/en/application-note/AN12881.pdf 2020-07-08 1594284377935722964436 TSP 4 May 12, 2020 Application Note Outlining an example use of FreeRTOS in a motor control application. Describing the MCSPTE1AK144 development kit design, but it can be used as a general guideline for any motor control application. FreeRTOS offers powerful tools to manage application tasks without the need to use peripheral interrupts, including priority preemption mechanisms. None /docs/en/application-note/AN12881.pdf English documents 321224 None 645036621402383989 2024-09-18 N /docs/en/application-note/AN12881.pdf AN12881: Motor Control Using FreeRTOS Application Note /docs/en/application-note/AN12881.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN12881: Motor Control Using FreeRTOS Application Note 321.2 KB AN12881 N 1594284377935722964436 User Guide 1 2024-10-22 1729535011773708010501 1 Oct 24, 2024 User Guide User Guide Getting Started with the S32M24XEVB Evaluation Board Y GS-S32M24XEVB English 0 User Guide 2024-12-26 /document/guide/getting-started-with-the-s32m24xevb-evaluation-board:GS-S32M24XEVB Getting Started with the S32M24XEVB Evaluation Board GS-S32M24XEVB TSP 132339537837198660 User Guide en Y t792 HTML GS-S32M24XEVB 1729535011773708010501 User Manual 2 /secured/assets/documents/en/user-manual/S32M24xEVB-L064_HW-UM.pdf 2024-10-23 1729727354453739014699 TSP 5 Oct 22, 2024 User Manual This document will explain how to start with the S32M24xEVB-L064 Evaluation Board and all their components. Registration without Disclaimer /secured/assets/documents/en/user-manual/S32M24xEVB-L064_HW-UM.pdf English documents 2734495 None 309919593431037931 2024-10-23 Y /webapp/Download?colCode=S32M24xEVB-L064_HW-UM S32M24xEVB-L064 Evaluation Board Hardware User Manual /secured/assets/documents/en/user-manual/S32M24xEVB-L064_HW-UM.pdf documents 309919593431037931 User Manual N en Extended Y pdf A1 Y N S32M24xEVB-L064 Evaluation Board Hardware User Manual 2.7 MB S32M24xEVB-L064_HW-UM N 1729727354453739014699 /secured/assets/documents/en/user-manual/S32M24xEVB-C064-HW-UM.pdf 2024-10-23 1729727353827726235502 TSP 6 Oct 22, 2024 User Manual This document will explain how to start with the S32M24xEVB-C064 Evaluation Board and all their components. Registration without Disclaimer /secured/assets/documents/en/user-manual/S32M24xEVB-C064-HW-UM.pdf English documents 2483925 None 309919593431037931 2024-10-23 Y /webapp/Download?colCode=S32M24xEVB-C064-HW-UM S32M24xEVB-C064 Evaluation Board Hardware User Manual /secured/assets/documents/en/user-manual/S32M24xEVB-C064-HW-UM.pdf documents 309919593431037931 User Manual N en Extended Y pdf A1 Y N S32M24xEVB-C064 Evaluation Board Hardware User Manual 2.5 MB S32M24xEVB-C064-HW-UM N 1729727353827726235502 true Y Tools

Documentation

Quick reference to our documentation types.

Filters

6 documents

Compact List

Application Note (3)
User Guide (1)
User Manual (2)
