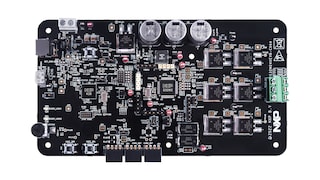

S32M24x PMSM/BLDC Motor Control Evaluation Board
Buy Options
S32M24XEVB-L064
Active
12NC: 935436378598
Details
Order
In Stock:135
Order from distributorsOperating Features
No information available
Environmental
| Part/12NC | PbFree | EU RoHS | Halogen Free | REACH SVHC | Weight (mg) |
|---|---|---|---|---|---|
S32M24XEVB-L064(935436378598) | Not Available | Compliant | Not Available | Compliant | 453592.0 |
Quality
| Part/12NC | Safe Assure Functional Safety |
|---|---|
S32M24XEVB-L064 (935436378598) | No |
Shipping
| Part/12NC | Harmonized Tariff (US)Disclaimer | Export Control Classification Number (US) | CCATS |
|---|---|---|---|
S32M24XEVB-L064 (935436378598) | 847150 | 5A992C | G174120 |
More about S32M24XEVB
The S32M24xEVB-C064 and S32M24xEVB-L064 are evaluation boards engineered for 3-phase brushless direct current (BLDC) and permanent magnet synchronous motor (PMSM) control applications like electric pumps, cooling systems and actuators, used in sunroof control or seat position adjustment.
Based on the S32M24x integrated solution that offers a 32-bit Arm® Cortex®-M4 S32K1 microcontroller and an analog die with voltage regulator, gate driver, current sensing and LIN/CAN physical layer in a system-in-package (SiP) design, this evaluation board enables rapid prototyping and evaluation of BLDC and PMSM control applications without having to wait for the final hardware design.
The S32M24xEVB-C064 and S32M24xEVB-L064 leverage the MCSPTE1AK344 application software with the Automotive Math and Motor Control Library (AMMCLib) set plus Real-Time Drivers (RTD) software package to provide a complete reference implementation for both 3-phase BLDC and PMSM motor control.
