S12ZVMC 3-phase BLDC/PMSM Evaluation Board

S12ZVMC256EVB Active

Roll over image to zoom in

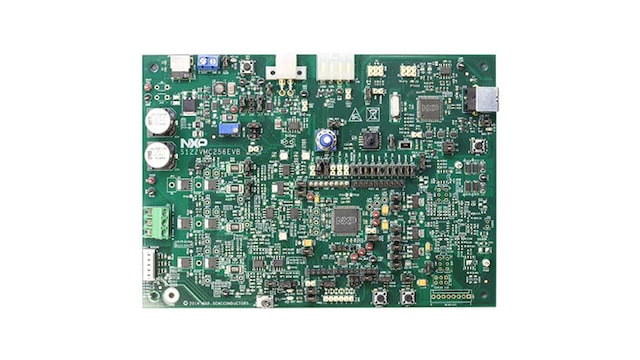

The S12ZVMC256 is a development board for the S12 MagniV® S12ZVM 16-bit MCUs targeted for 2-phase DC and 3-phase BLDC or PMSM motor control applications. The S12ZVM integrates an MCU with an S12Z core, a 5 V voltage regulator, a CAN physical layer and a gate driver unit capable of controlling up to 6 power MOSFETs and is targeted for automotive applications such as HVAC blowers, engine cooling fans, wiper systems, fuel or water pumps.

Product Details

Supported Devices

Processors and Microcontrollers

S12 MagniV Mixed-Signal MCUs

  • S12ZVM: S12ZVM Mixed-Signal MCU for Automotive and Industrial Motor Control Applications

Features

Connectivity

  • Connector interface for 2-phase (DC) or 3-phase (BLDC or PMSM) motor
  • USB-to-SCI interface
  • CAN connector
  • Hall-sensor interface and connector
  • Resolver interface and connector

Power Management

  • Shunt resistors for current sensing on up to three phases and common DC link

Debug

  • Built-in OSBDM debugger
  • One general-purpose potentiometer, two LEDs, two push buttons and one switch

Buy Options

S12ZVMC256EVB-Image

Click to expand

  • S12ZVMC256EVB
    Active

  • S12ZVMC256 Development Board for 2-phase DC and 3-phase BLDC.

  • $559.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
