MPC5604P 3-phase PMSM Development Kit

MTRCKTSPS5604P Preproduction

Roll over image to zoom in

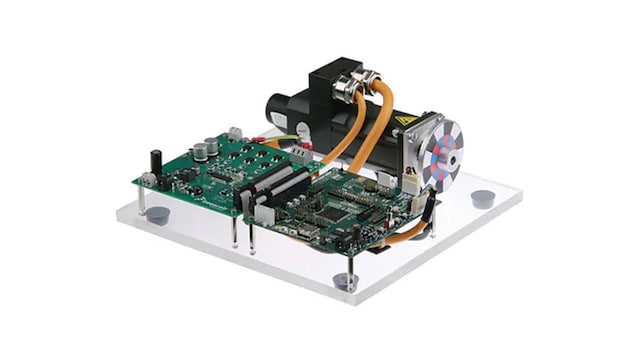

The NXP® MTRCKTSPS5604P motor control development kit is ideal for applications requiring one PMSM motor, such as active suspension or electric powertrain.

  • Designed to enable rapid prototyping and evaluation of the motor control application without having to wait for the final hardware design
  • Includes a 32-bit NXP MPC5604P based controller board and the 3-phase low-voltage power stage board
  • The application software provides a complete reference implementation of the PMSM motor control application and also takes advantage of the Automotive Math and Motor Control Library Set

Block Diagram

Choose a diagram:

3-phase PMSM Development Kit with NXP MPC5604P MCU

MTRCKTSPS5604P 3-phase PMSM Development Kit with NXP MPC5604P MCU IMG 2

MTRCKTSPS5604P 3-phase PMSM Develpment Kit with NXP MPC5604P MCU

MTRCKTSPS5604P 3-phase PMSM Development Kit with NXP MPC5604P MCU IMG 1
Get diagram PDF

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

  • MPC560xP: Ultra-Reliable MPC560xP MCU for Automotive and Industrial Safety Applications

Interfaces

Automotive LIN Solutions

  • MC33905: SBC Gen2 with High-Speed CAN and LIN

Power Management

Pre-Drivers

  • MC33937: 3-Phase Field Effect Transistor Pre-Driver

Features

Microcontroller

  • 32-bit NXP MPC5604P controller board

Power Management

  • 3-phase low-voltage power stage based on SMARTMOS® MC33937A pre-driver
  • Supports low-voltage PMSM motors with resolver and encoder sensors
  • DC-bus overvoltage, overcurrent, and undervoltage fault detection

Support

  • FreeMASTERvisualization/configuration support
  • ANSI-C based motor control reference software with easy portability
  • Extensive documentation for software and hardware
