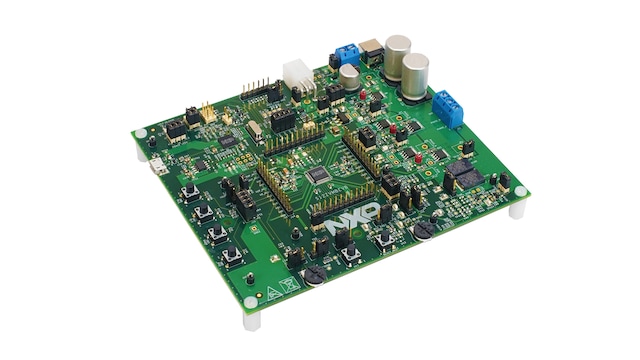

S12ZVMB Full H-Bridge BLDC/PMSM Evaluation Board

S12ZVMBEVB Active

Roll over image to zoom in

The S12ZVMB is a development board for the S12 MagniV® S12ZVM 16-bit MCUs targeted for 2-phase DC BLDC or PMSM motor control applications. The S12ZVMB integrates a MCU with an S12Z core, a 5 V voltage regulator, a LIN physical layer and a gate driver unit capable of controlling up to 4 power MOSFETs and is targeted for automotive applications such as HVAC blowers, engine cooling fans, wiper systems, fuel or water pumps.

Product Details

Supported Devices

Processors and Microcontrollers

S12 MagniV Mixed-Signal MCUs

  • S12ZVMB: Mixed-Signal MCU for Automotive and Industrial Motor Control Applications

Features

Microcontroller

  • S912ZVMBA6 in 48 LQFP, 64 kB in Flash

Connectivity

  • Connector interface for 2-phase DC, BLDC, or PMSM motor
  • USB-to-SCI interface
  • LIN connector
  • Hall-sensor interface and connector
  • Shunt resistors for current sensing

Debug

  • Built-in OSBDM debugger

Sensors

  • Temperature sensor

Components

  • One general-purpose potentiometer
  • 4 LED
  • 1 HVI Push Button and Potentiometer
  • 4 push buttons

Buy Options

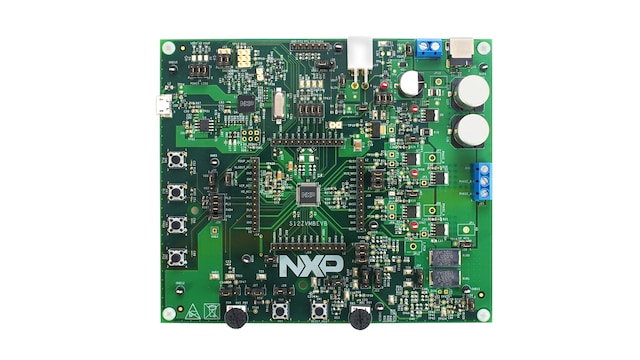

S12ZVMBEVB-Image

Click to expand

  • S12ZVMBEVB
    Active

  • S12ZVMBA6 Evaluation Board for 2-phase BLDC.

    • S12ZVMB Evaluation Board
  • $229.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
